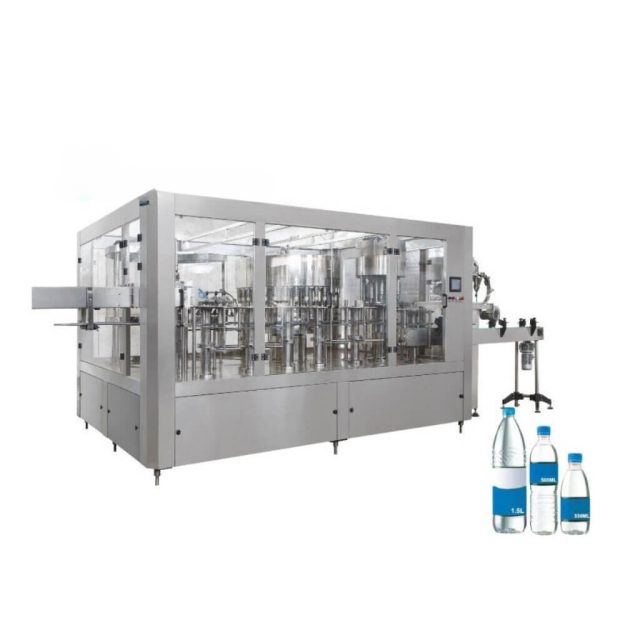

Automated Water Filling Machine for Purified and Mineral Water

Discover our advanced water filling machine, designed for high efficiency in bottling operations.

Capable of filling up to 36,000 bottles per hour, this fully automatic unit combines washing, filling, and capping processes.

With PLC control and customizable features, it suits various liquids, ensuring top-quality standards for your bottling needs.

Get A Quote

Specifications

Model CGF883 CGF14125 CGF18186 CGF24248 CGF323210 CGF404010
Heads of washing, filling , sealing 8-8-3 14-12-5 18-18-6 24-24-8 32-32-10 40-40-10
Production capacity (bottle/hour) 1000-2000 3000-5000 5000-7000 8000-12000 12000-15000 16000-20000
Suitable bottle diameter(mm) φ=50-100 H=170 330-1500ml
Spraying pressure 2~3
Motor power Main
motor 4.1kw
Main
motor 4.23kw
Main motor5.03kw Main motor 6.57kw Main motor7.5kw Main motor 8.63kw
Power of outer vacuum pump 0.7 0.7 1.1 1.5 2.2 2.2
overall dimension (LxWxH) 2100x1400x2500 2100x1400x2500 2460x1720x2650 3100x2100x2650 3500x2500x2650 4600x1800x2650
Weight 2300 2500 3500 4200 5500 6800

Video

YouTube video

Description

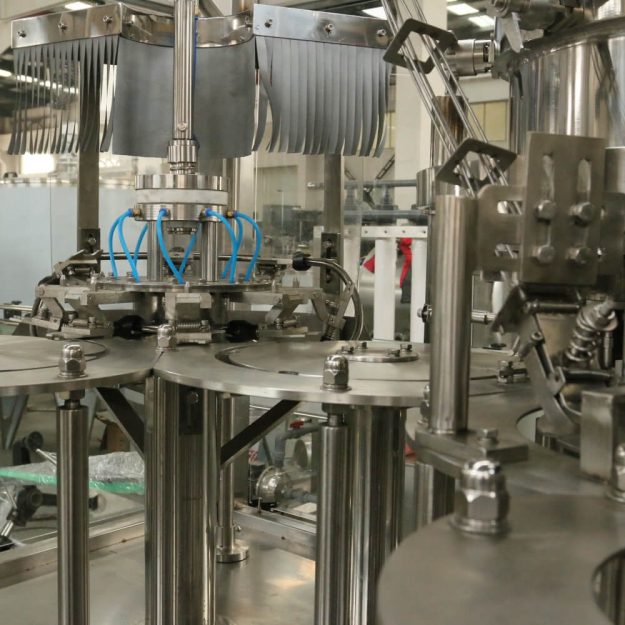

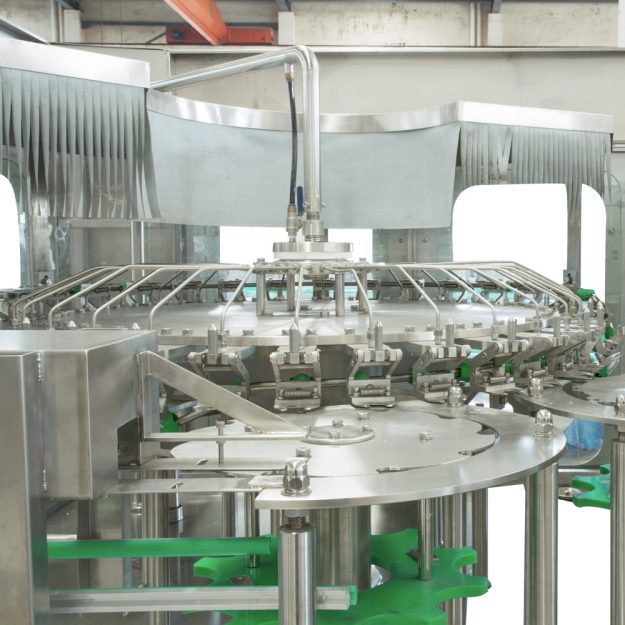

Rinsing Part

1. All 304/316 stainless steel cleaning heads, water-jet water injection design, save water and make it cleaner

2. 304/316 stainless steel holder with plastic pad to ensure minimal collision of bottles during cleaning

3. 304/316 stainless steel cleaning pump makes the machine more durable

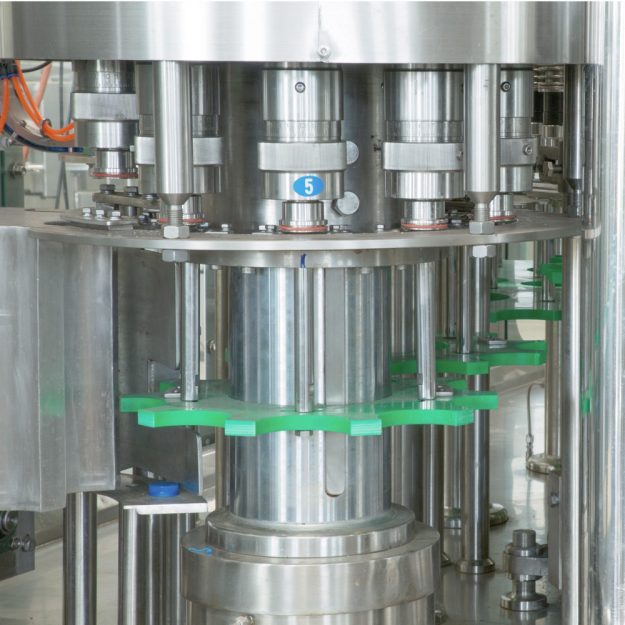

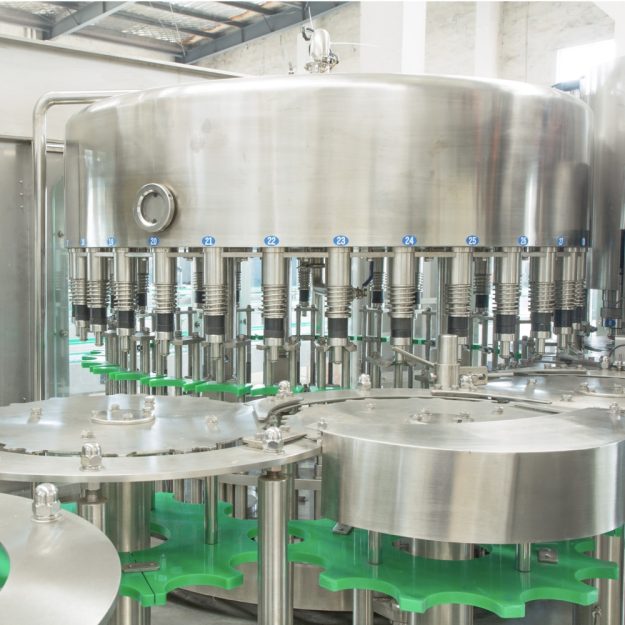

Filling Part

1. 304/316 stainless steel high-precision filling nozzle

2. The filling volume can be fine-tuned, and the liquid level will be the same after filling.

3. All 304/316 stainless steel contact parts and liquid tanks, finely polished, no dead corners, easy to clean

4.304/316 stainless steel filling pump

Capping part

1. Placement and capping system, electromagnetic capping head, with unloading function to ensure minimal collision of bottles during capping process

2. All 304/316 stainless steel construction

3. No bottle or cap

4. Stop automatically when bottle is missing
