Carbonation Process in Soft Drink Production: Pre-Filling CO₂ Dissolution Explained

Introduction

Carbonation is one of the most critical steps in soft drink production. It not only defines the characteristic fizz of the beverage but also affects its acidity, flavor, and overall stability. Proper carbonation before bottling ensures consistent product quality and an enjoyable consumer experience.

Recently, an American client inquired about our soft drink production line. They noticed a price difference compared to a competitor’s quote, which used a mixer with chilled water tank, while our quotation included a mixer with plate heat exchanger and a chiller unit. The client was curious about the working principle and temperature difference, prompting a detailed explanation.

This article explores the science, equipment, procedures, and best practices of carbonation in pre-filling soft drink production, as well as the reasoning behind different cooling methods.

1. The Science Behind Carbonation

Carbonation involves dissolving carbon dioxide (CO₂) into water or flavored syrup, forming carbonic acid (H₂CO₃), which gives soft drinks their signature tang and effervescence.

Key factors affecting carbonation:

• Temperature:CO₂ is more soluble at lower temperatures. Cooling the liquid before carbonation allows higher gas absorption.
• Pressure:Increasing the CO₂ pressure in the liquid increases solubility, creating denser, longer-lasting bubbles.
• Liquid composition:Sugar, acids, and salts slightly reduce CO₂ solubility, requiring adjustments in gas pressure or liquid temperature.

Henry’s Law describes this relationship mathematically:

C=k_H⋅P_CO2​​

Where C is the concentration of dissolved CO₂, kH​ is Henry’s constant (temperature-dependent), and PCO2 is the gas pressure.

2. Cooling and Carbonation Methods

There are two common approaches for preparing soft drinks for carbonation, which explain the price differences between production lines:

Method 1: Pre-Cooling Before Mixing

• The liquid (water + syrup) is cooled to 2–3°C before entering the mixing machine.
• Only a standard chilled water tank (with a refrigeration unit using refrigerant such as freon) is required.
• The refrigerant circulates through coils, directly cooling the beverage liquid.

Advantages:

• Lower initial investment.
• Simple system, fewer components.

Limitations:

• Some countries restrict the use of freon-based refrigeration.
• Cooling efficiency may be lower for larger volumes.

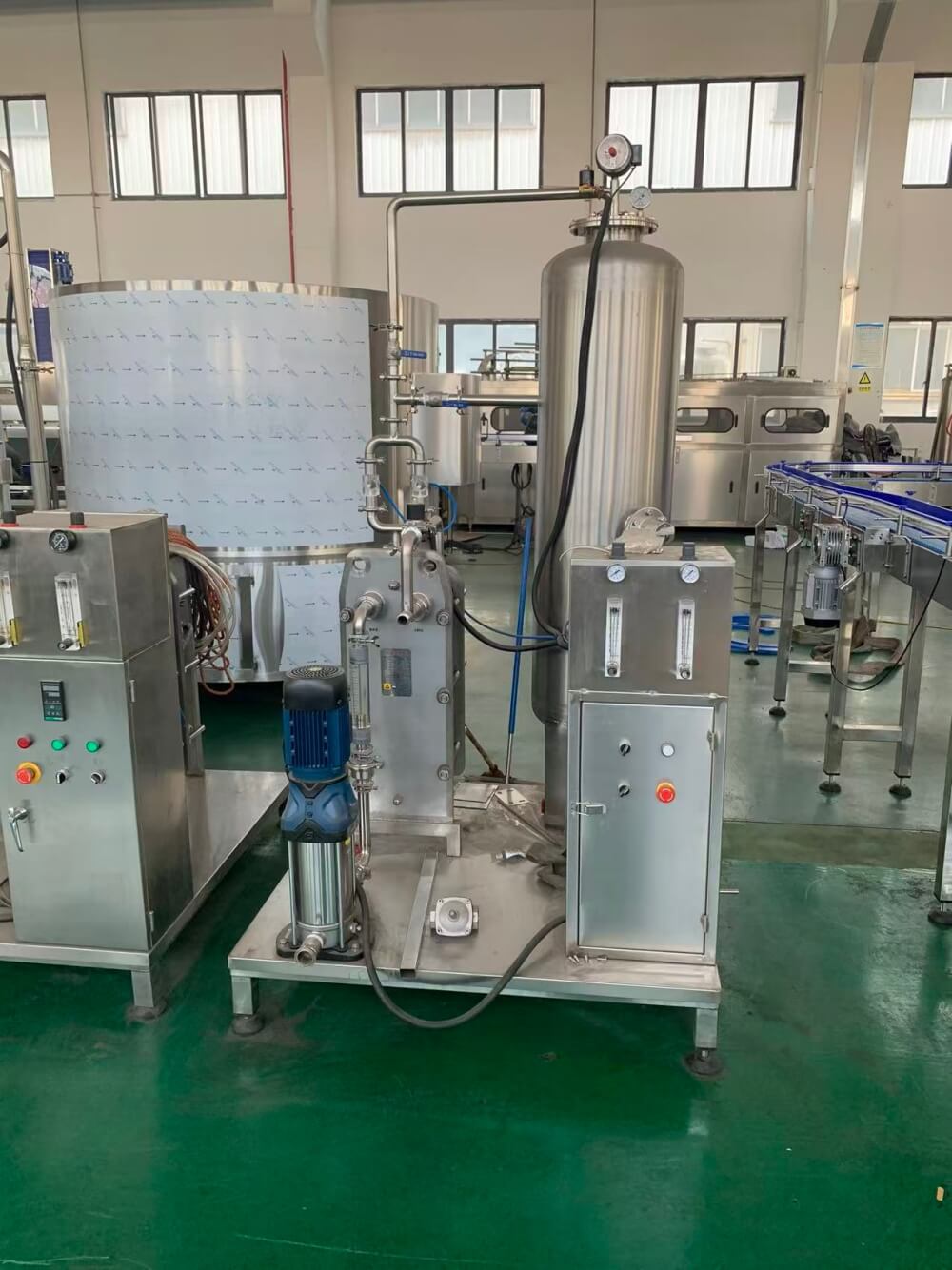

Method 2: Mixing First, Then Cooling with Plate Heat Exchanger

• Syrup and water are mixed at 35–40°C.
• The mixture enters a mixerwith a plate heat exchanger and a chiller unit, cooling it to 2–3°C before carbonation.

This method is becoming more common globally due to environmental regulations and consistent cooling performance.

Advantages:

• More precise temperature control.
• Better suited for large-scale, continuous production.
• Freon-free alternatives available in some regions.

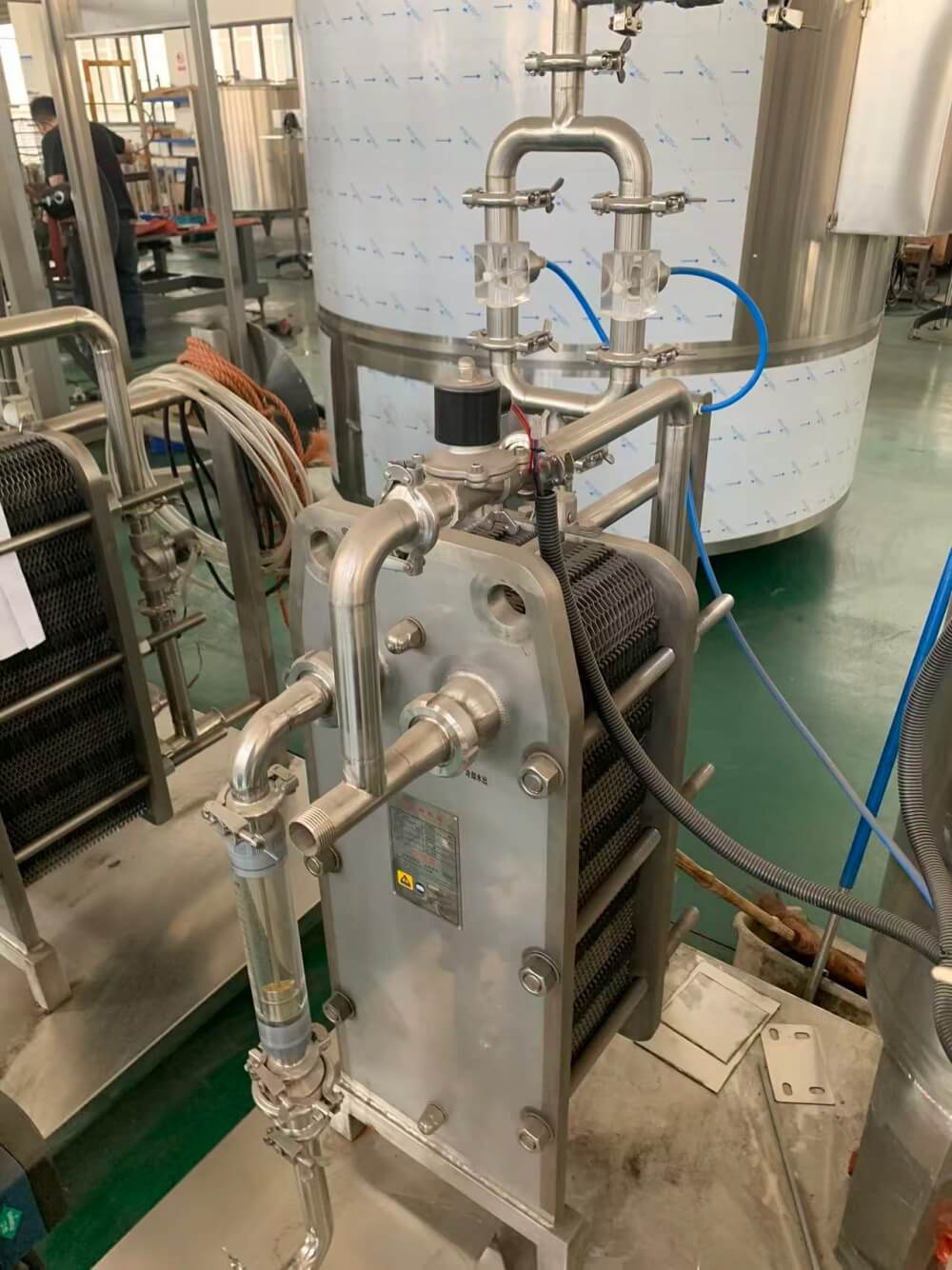

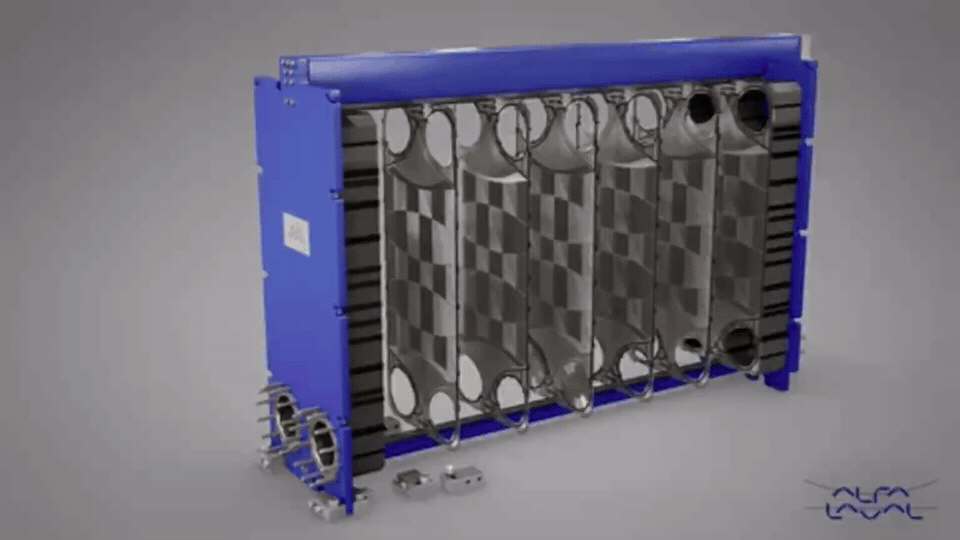

3. Plate Heat Exchanger: Working Principle

A plate heat exchanger is a compact device that transfers heat between two fluids without mixing them. It is widely used in beverage production for rapid and uniform cooling.

How it works:

1. The beverage flows through thin stainless steel plates arranged in a series.
2. Chilled fluid (from the chiller unit) flows through alternating plates.
3. The large surface area and turbulence created between plates allow efficient heat transfer.
4. The beverage temperature drops quickly to the desired level (2–3°C) while maintaining hygiene and preventing contamination.

Benefits in carbonation:

• Rapid cooling preserves CO₂ solubility.
• Uniform temperature prevents localized overheating or undercooling.
• Compact and modular design fits modern production lines.

4.CO₂ Injection and Dissolution

1. Pre-cooled liquid enters carbonation tank.
2. CO₂ is injected under controlled pressure (2–3 bar for standard soft drinks, higher for high-carbonation beverages).
3. Agitation or inline mixing ensures uniform gas dissolution.
4. Dissolved CO₂ is measured (vol CO₂) to achieve target carbonation.
5. Controlled handling prevents gas loss and maintains bubble consistency.

5. Key Control Parameters

• Temperature: 2–3°C for optimal CO₂ solubility.
• Pressure: 2–3 bar (adjustable for beverage type).
• CO₂ Volume: 2.5–3.5 vol for standard soft drinks.
• pH and acidity: Maintain consistent taste and shelf life.
• Bubble uniformity: Ensures pleasant mouthfeel.

6. Common Challenges and Solutions

7. Best Practices

• Maintain precise temperature and pressure control.
• Use proper agitation or plate heat exchanger for uniform cooling.
• Regular cleaning and sanitization to avoid microbial contamination.
• Monitor syrup composition and adjust parameters accordingly.
• Test CO₂ volume and pH frequently.

8. Conclusion

Understanding the differences between pre-cooling and plate heat exchanger methods helps explain pricing differences between production lines. While pre-cooling with a chilled tank is economical, mixing followed by plate heat exchanger cooling ensures precise temperature control, better carbonation, and compliance with environmental regulations.

Proper carbonation using these methods guarantees consistent taste, appealing bubbles, and high-quality soft drinks, satisfying both manufacturers and consumers.
