Carbonated Drink Production Line
It is used for soda, salt soda, sparkling water, sparkling water, carbonated drinks, and other plastic bottles, cans, glass bottles isobaric filling production. It is mainly composed of the following equipment: water treatment system (water tank, multi-medium filter, active carbon filter, precious filter), syrup preparing system (syrup melt pot, beverage mixer, and so on), filling machine, spray cooling system, labeling machine, and packing machine.
Inquiry NowDownload CAD Design
Carbonated Drink Production Process
1
Water Treatment System
2
Syrup Preparing System
3
Rinsing Filling Capping Machine
4
Spraying Cooling System
5
Labeling Machine
6
Packing Machine
Plastic Bottle Carbonated Drink Production Line
| Model | DCGF 16126 | DCGF 18186 | DCGF 24248 | DCGF 32328 | DCGF 404010 | DCGF 484812 | DCGF 606015 | DCGF 808020 |
| Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 | 80-80-20 |
| Production capacity(bottle/hour) | 3000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-18000 | 20000-24000 | 24000-28000 | 36000-40000 |
| Suitable bottle height | H=170-320 | |||||||
| Spraying pressure | 0.25-0.3 | |||||||
| Total Power | 1.5+0.37 | 2.2+0.37 | 3+0.45+ 0.25 | 5.5 | 7.5 | 11 | 15 | 19 |
| Overall dimension(L×W×H) | 2300× 1680× 2650 | 2500× 1760× 2650 | 3100× 2100× 2650 | 3800× 2800× 2650 | 4000× 3300× 3400 | 4850× 3650× 3300 | 6500× 5400× 3500 | 7650× 6400× 2700 |
| Weight | 2600 | 3500 | 4650 | 6800 | 8500 | 10000 | 12500 | 16000 |
Glass Bottle Carbonated Drink Production Line
| Model | DCGF18186 | DCGF24248 | DCGF323210 | DCGF404012 | DCGF505012 |
| Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 |
| Capacity (b/h) | 4000-6000 | 6000-7000 | 8000-10000 | 12000-15000 | 15000-18000 |
| Suitable bottle diameter(mm) | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml |
| Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 11kw |
| Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Overall dimension (mm) | 2600×1900×2550 | 3100×2200×2800 | 3850×3000×2850 | 4850×3800×2750 | 5750×3550×2750 |
| Weight(Kg) | 3650 | 4800 | 6800 | 8650 | 10500 |
Can Type Carbonated Drink Production Line
| Model | BGF12/6 | BGF18/6 | BGF24/6 | BGF32/8 |
| Production capacity(500ml)(b/h) | 1000-1200 | 2000-3000 | 4000-5000 | 6000-8000 |
| total power(kw) | 1.5 | 1.5 | 3.75 | 5.6 |
| Dimension (L*W*H)(mm) | 1700x1100x2300 | 1830x1320x2300 | 1950x1580x2500 | 2100x1850x2500 |
| Total weight(kg) | 2000 | 2400 | 3000 | 3500 |
Flow Diagram
OF CARBONATED DRINK PRODUCTION LINE
Water Treatment System
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning, and filling of the reverse osmosis membrane module.
Syrup Mixing System
- It adopts a high-quality water pump and Siemens electrical equipment and other parts to form a complete automatic control system.
- The advantages are motor coordination, beautiful appearance, convenient rinsing, and high automatic level.
- It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola, and drinks.

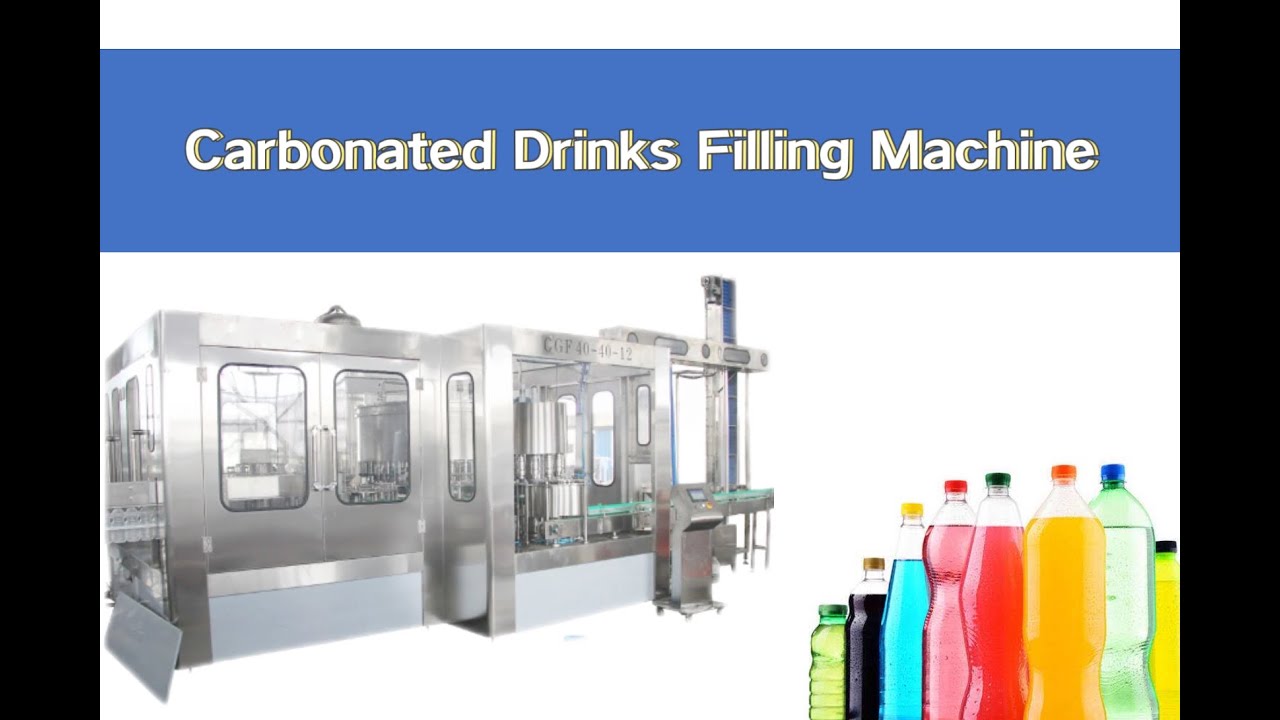

Rinsing Filling Capping Machine
- This cola drink-filling machine is mainly used in the carbonated beverage filling with gas.
- It is mainly used in washing, filling, and sealing carbonated beverages such as carbonated drinks, cola, iced tea carbonated drink water, and so on.
- It is composed of a rotary washer, balanced pressure filler, screw-type sealer, and conveying system.
Spray Cooling System
- This cola drink-filling machine is mainly used in the carbonated beverage filling with gas.
- It is mainly used in washing, filling, and sealing carbonated beverages such as carbonated drinks, cola, iced tea carbonated drink water, and so on.
- It is composed of a rotary washer, balanced pressure filler, screw-type sealer, and conveying system.
Labeling System
- Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
- Operating system using touch-screen control, simple, practical, is efficient.
- The advanced technology of printer code machine, so that the writing clear, fast, and stable
Packing System
- It adopts the imported PLC program automatic control. It has a stable function and precise control.
- It adopts the advanced spiral wind circulating structure and three-layer heat insulation to save resources.
- It has automatic functions like conveying materials, unscrambling, shrinking and cooling & design finalizing flow.
