Water Production Line
It used for pure water, mineral water and other bottled water, water for food and beverage production. It is mainly composed of the following equipments: bottle blowing system, water treatment system (Multi-medium filter, Actived-carbon filter, precious filter, RO system), sterilization system (UV device, ozone device), rinsing filling capping system, labeling and packing system and so on
Inquiry NowDownload CAD Design
Water Production Process
1
Bottle Blowing Machine
2
Water Treatment System
3
Sterilization System
4
Rinsing Filling Capping system
5
Labeing Machine
6
Packing Machine
250ml-2L Water Production Line
| Model: | CGF16/12/6 | CGF18/18/6 | CGF24/24/8 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
| Production Capacity: 500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard: (mm) | φ 50-φ 110 | |||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||
| Installed Capacity: (L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size: L× W× H(mm) | 2400× 1670 × 2350 | 2470× 1970 × 2350 | 2865× 2170 × 2350 | 3700× 2570 × 2350 | 3800× 2950 × 2400 | 4500× 3400 × 2400 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | |
5L-10L Water Production Line
| 3L-5L-10L filling production line | |||||||
| model | 2~2~1 | 4~4~1 | 6~6~1 | 9~9~4 | 12~12~4 | 16~16~4 | 20~20~5 |
| capacity(5L)BPH | 200 | 400 | 600 | 1000-2000 | 2000-3000 | 3000-4000 | 4000-5000 |
| Footprint(M3) | 50 | 60 | 100 | 150 | 180 | 200 | 250 |
| Total power（KW） | 10 | 15 | 18 | 20 | 25 | 30 | 40 |
| operator | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
Flow Diagram
OF WATER PRODUCTION LINE
Bottle Blowing System
-
Linear construction transports preform to heating and bottle forming.
-
Upgrade production capacity.
-
Upgrade power efficiency.

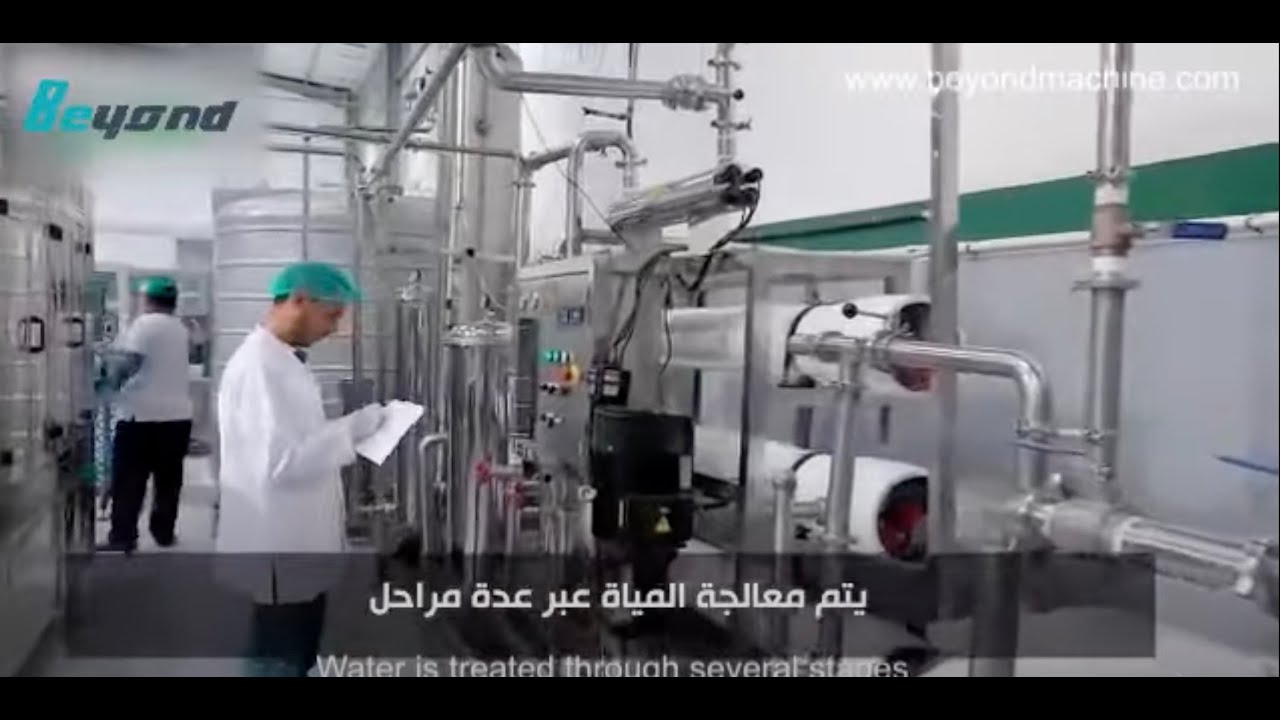

Water Treatment System
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning, and filling of the reverse osmosis membrane module.
Rinsing Filling Capping Machine
- The machine is mainly used in the beverage-filling operations.
- Suitable for non-carbonated drink-filling machines, The three functions of bottle wash, fill and seal are composed in one body of the machine.
Labeling Machine
- Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
- Operating system using touch-screen control, simple, practical, efficient
- The advanced technology of printer code machine, so that the writing clear, fast, and stable
Packing Machine
- It adopts the imported PLC program automatic control. It has a stable function and precise control.
- It adopts the advanced spiral wind circulating structure and three-layer heat insulation to save resources.
- It has automatic functions like conveying materials, unscrambling, shrinking and cooling & design finalizing flow.
