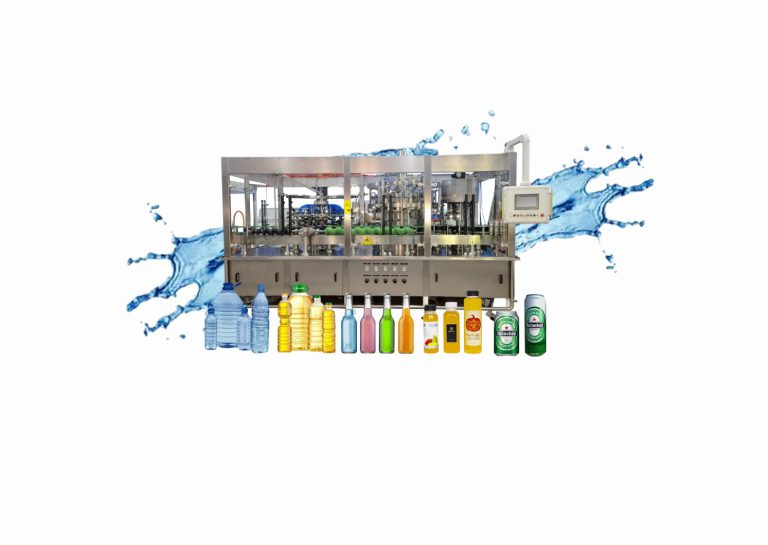

Bottling lines engineered around your bottle, your drink and your hall.
Liquid filling machines for water, juice, oil, beer and carbonated drinks—PET, glass, can and 5-gallon lines. Send your bottle drawing; our Zhangjiagang engineering team returns a layout note.
Every drink takes a different fill path.
Water, juice, carbonated drinks, beer and oil do not share a valve. Pick your product—we match the filler, temperature and hygiene design to it, not a water filler copy.

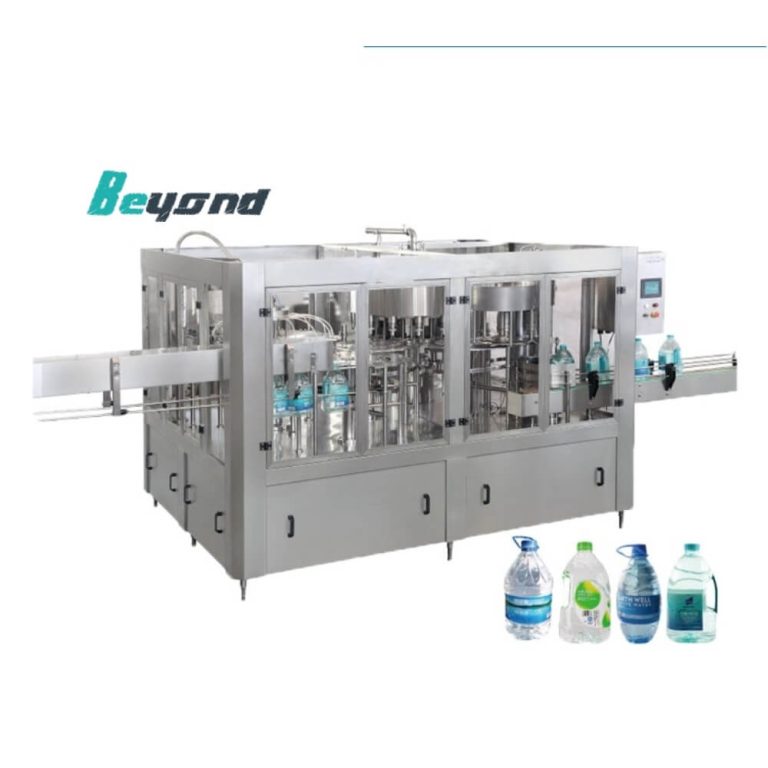

PET, glass & 5-gallon water lines
Gravity-fill rinse–fill–cap monoblocks sized to your bottle volume. Glass and 5-gallon are different machines—not a PET monoblock "stretched".

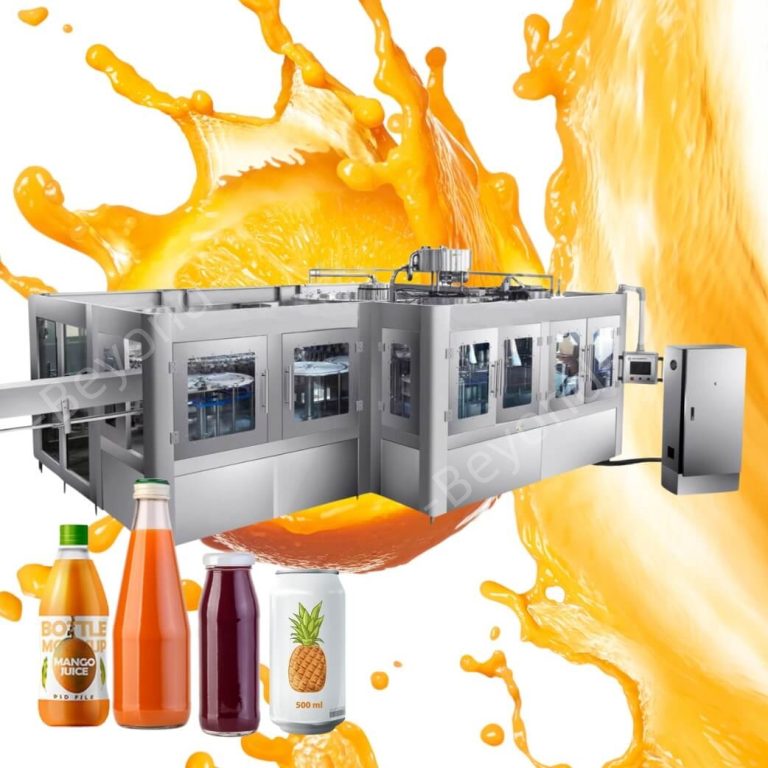

Hot-fill and hygiene-focused juice lines
Pulp, Brix and temperature change the valve choice. Juice lines add syrup mixing, UHT sterilization, inverted-bottle sterilization and cooling around the filler.

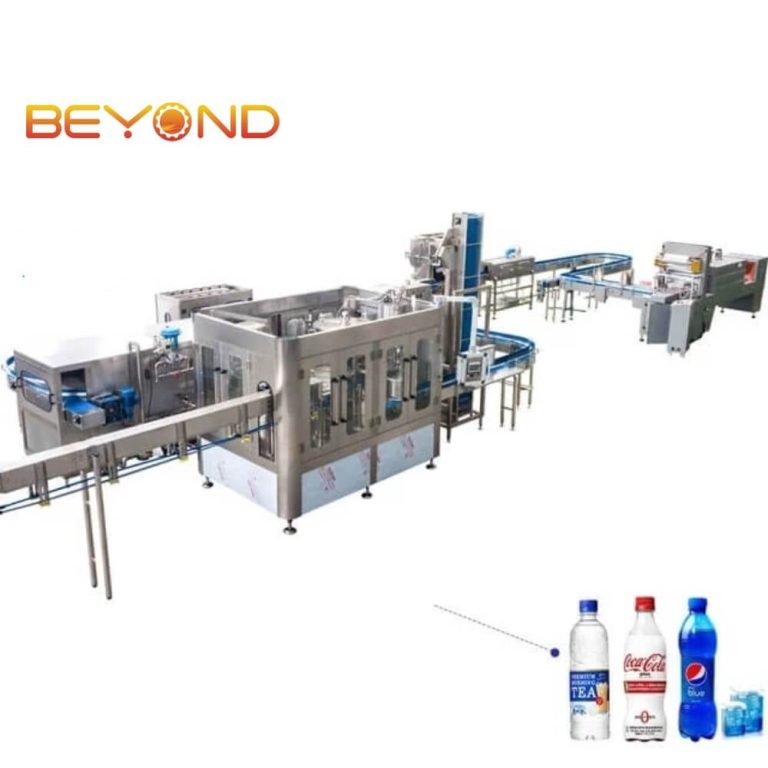

Isobaric CSD lines that keep the CO₂ in
Counter-pressure / isobaric heads for bottles, and canning options that keep carbonation stable at speed—fed by syrup preparation and CO₂ mixing.

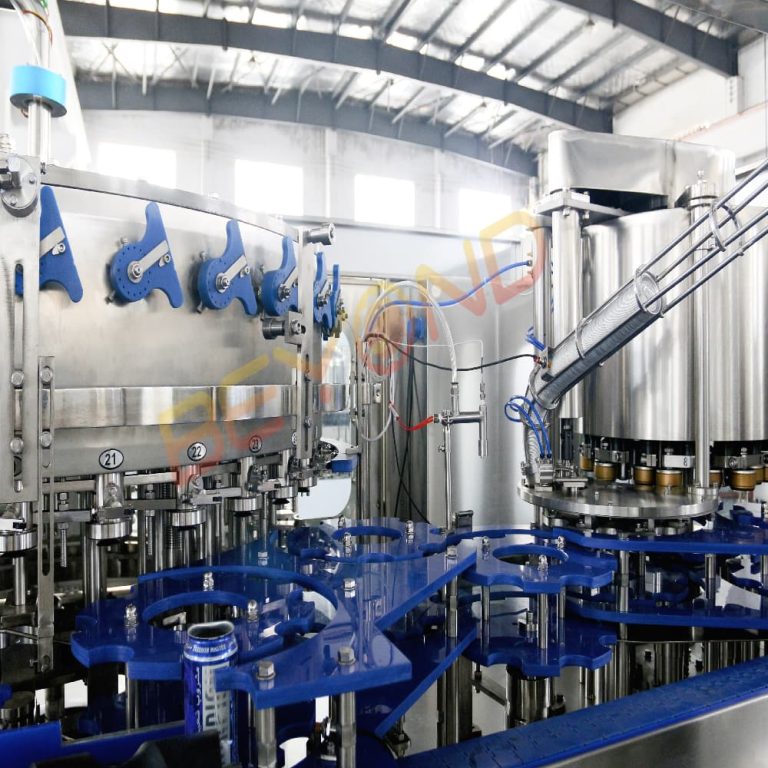

Glass bottle, can & keg beer lines

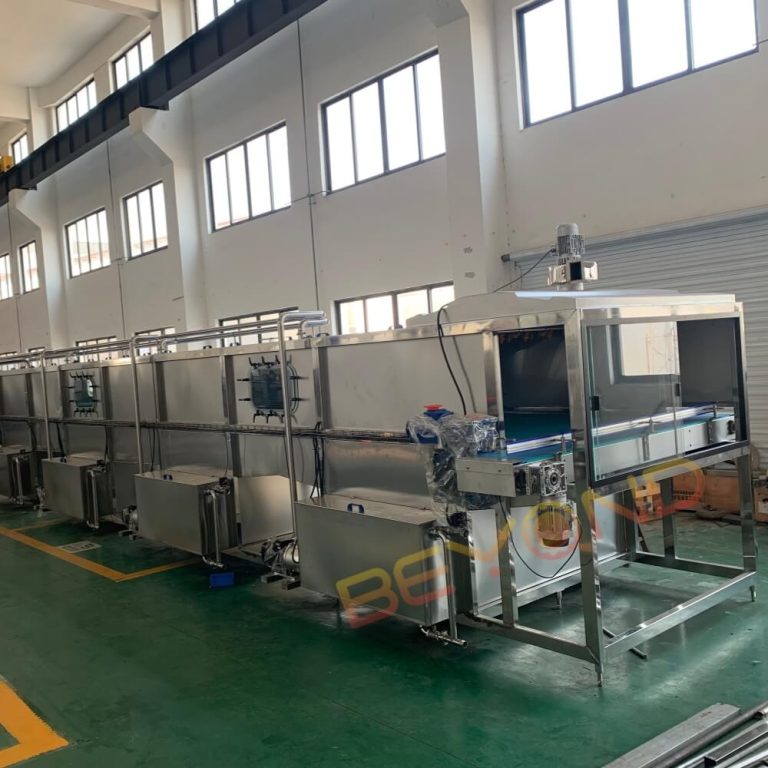

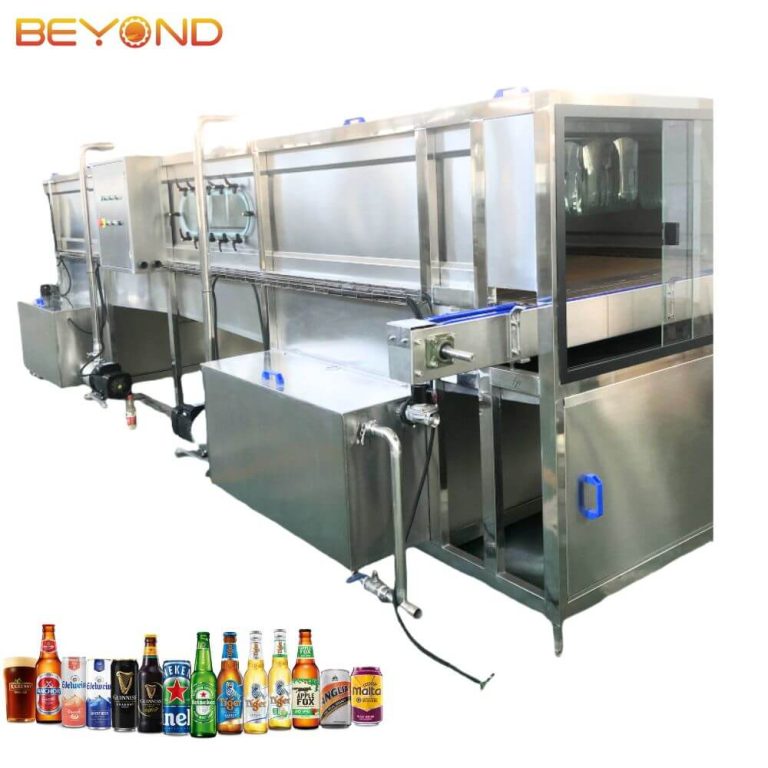

Beer filling, capping and seaming machines built with dissolved-oxygen control in mind, plus tunnel pasteurizers for bottled and canned beer.
Oil lines by weight, flow meter or piston
Weighing, flow-meter and piston fillers for edible and cooking oil, plus linear lines for lubricant and engine oil—matched to viscosity and container.

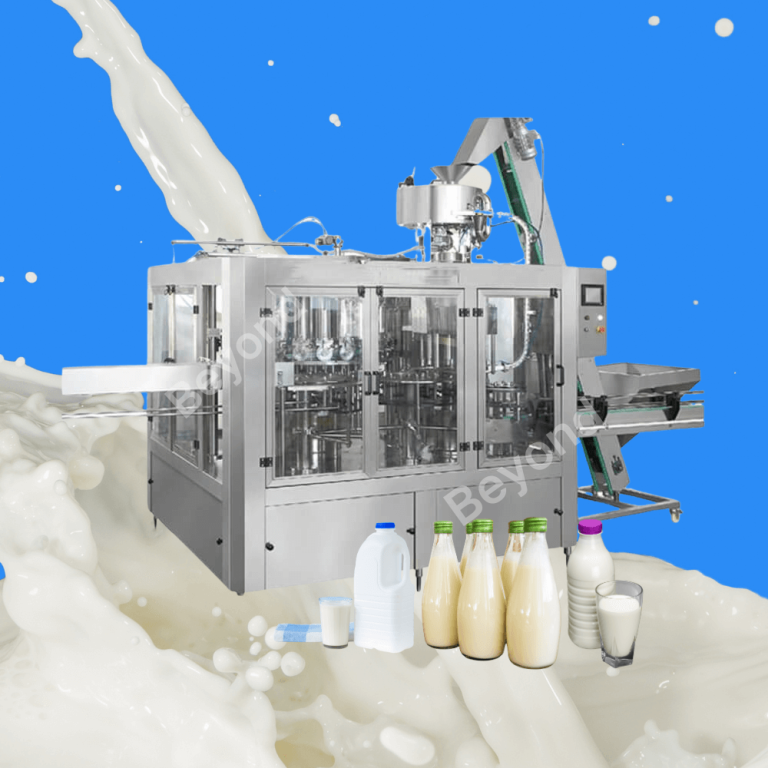

Dairy bottling with clean-fill options

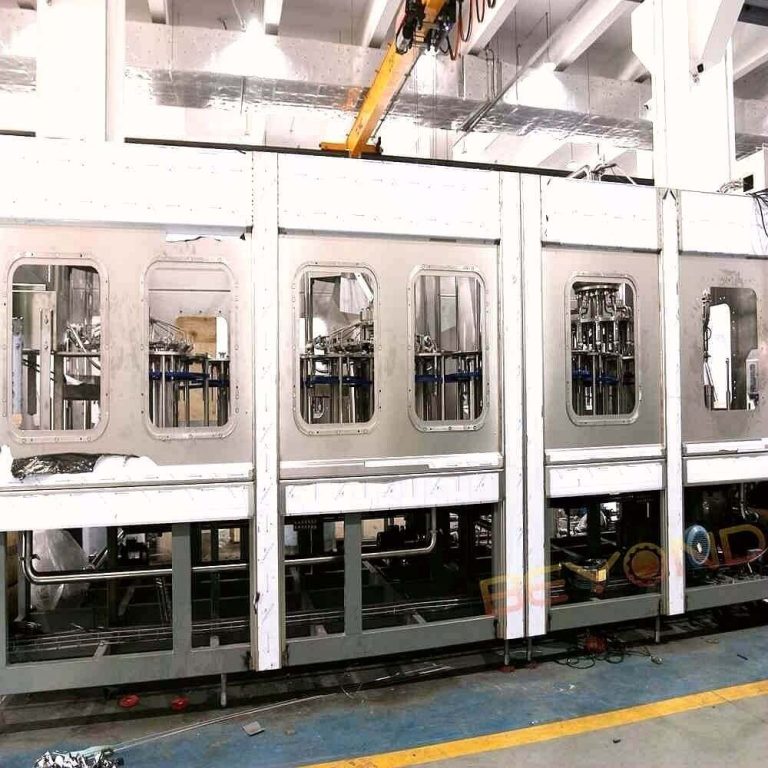

3-in-1 rinse–fill–cap dairy machines and ultra-clean filling for ESL milk and juice, with front-end bottle unscramblers to keep the line fed.
Corrosion-aware filling & capping
Linear detergent filling–capping machines, anti-corrosion fillers for toilet cleaners and servo cappers for skewed-nozzle caps.

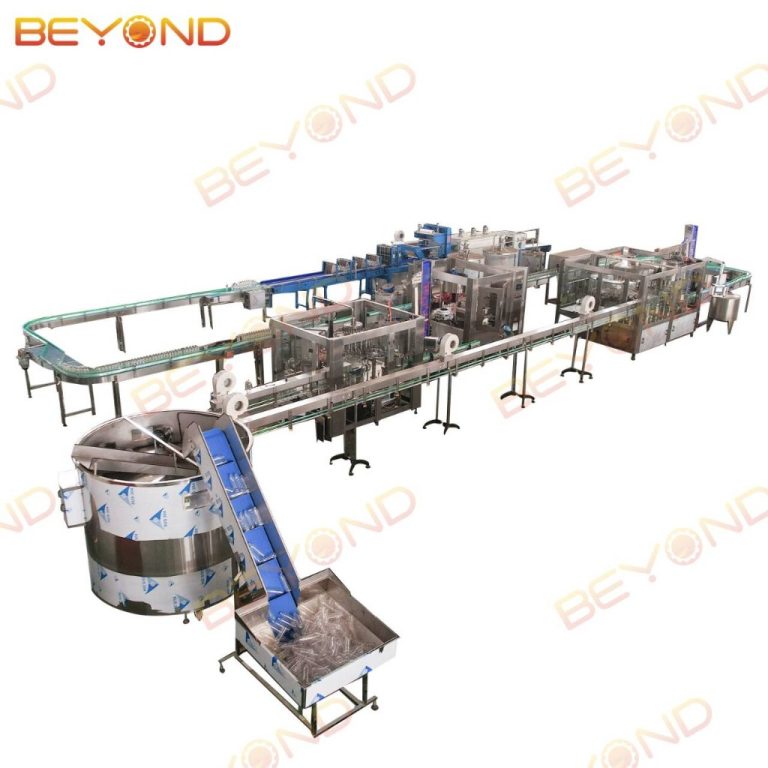

A bottling plant is a hall,
not a single machine.
Empty bottles or preforms in, labeled packs out. Miss one block and the quote looks cheap until installation week—so we plan fillers, blowers and conveyors as one bottling flow.

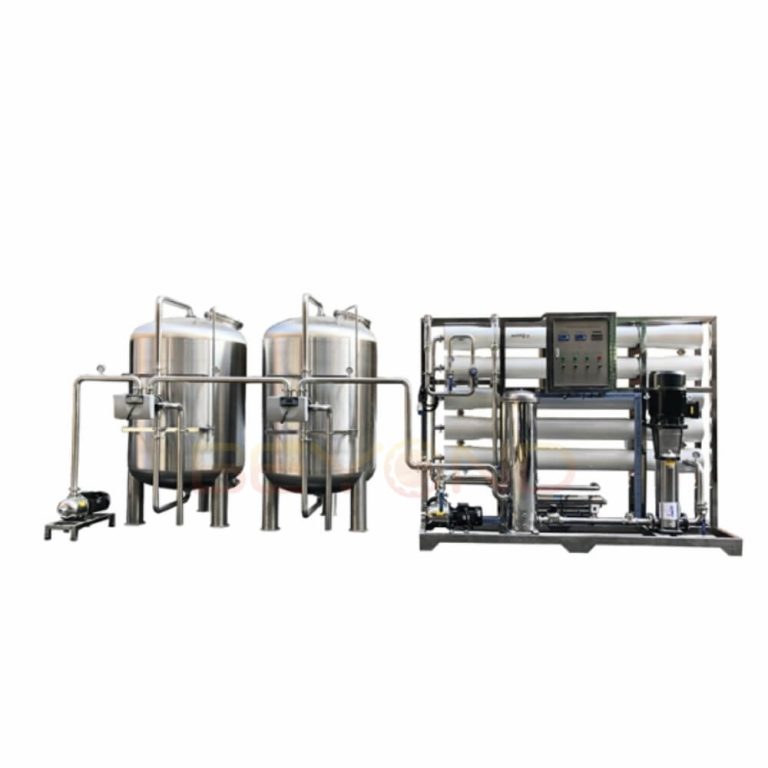

Water treatment
Sand, carbon and RO stages make the product ready to fill.
Treatment systems →Bottle blowing
Blow PET on site from preforms—or skip it if you buy bottles.
Blowing & combi →Rinse · Fill · Cap
The filling core, chosen for your drink, bottle and speed.
Bottle fillers →Labeling

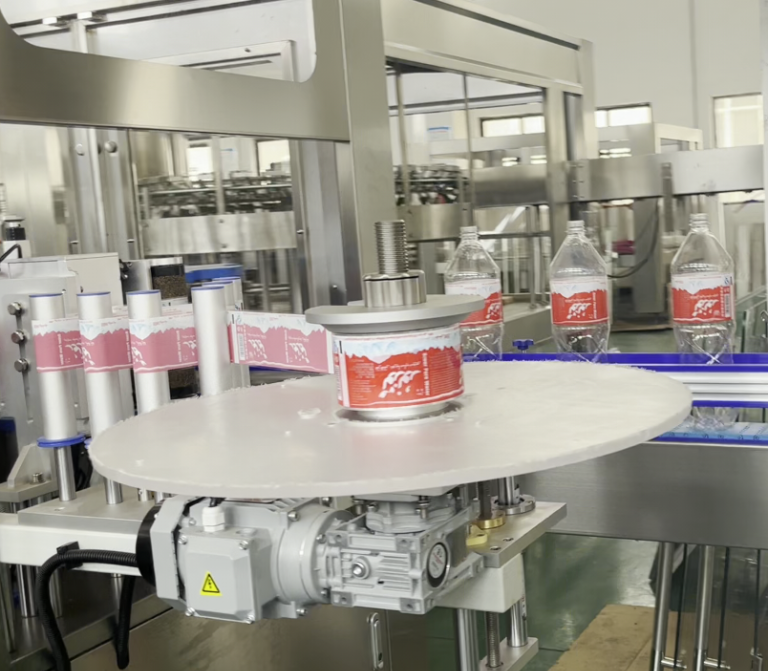

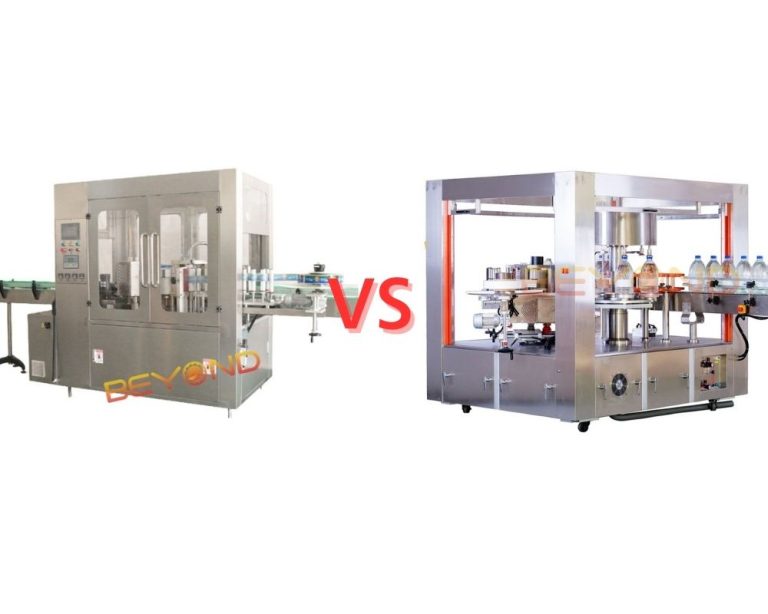

OPP hot-melt, sleeve or sticker labelers with coding.
Labelers →Packing
Film shrink wrapping and case packing at line speed.
Packing machines →Palletizing

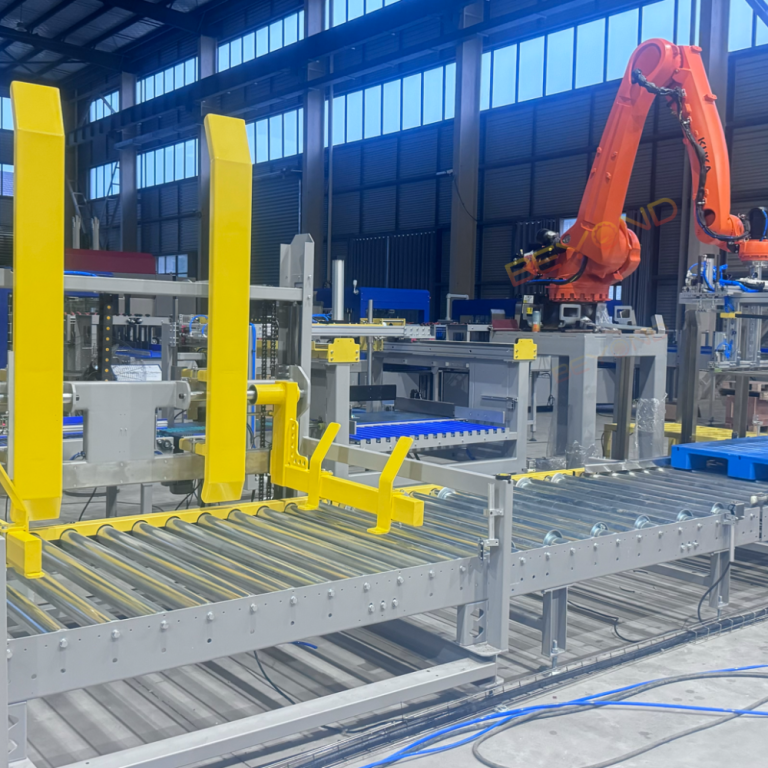

Servo palletizers for cartons and bags, if you want it in scope.
Palletizers →We'll tell you straight whether you're describing one machine or a plant—and which Beyond categories already cover the blocks. No invented "universal plant price".
Send a rough plant sketchBuilt in one plant, from frame to filler.
Filling, blowing, labeling and packing machines are cut, welded and assembled on the same Zhangjiagang site—so the line ships as one system.
Pick the model band that actually fits.
Our 250ml–2L water lines step from compact to high-speed. Treat the table as a starting point—every model is confirmed against your drawing, not a generic chart.

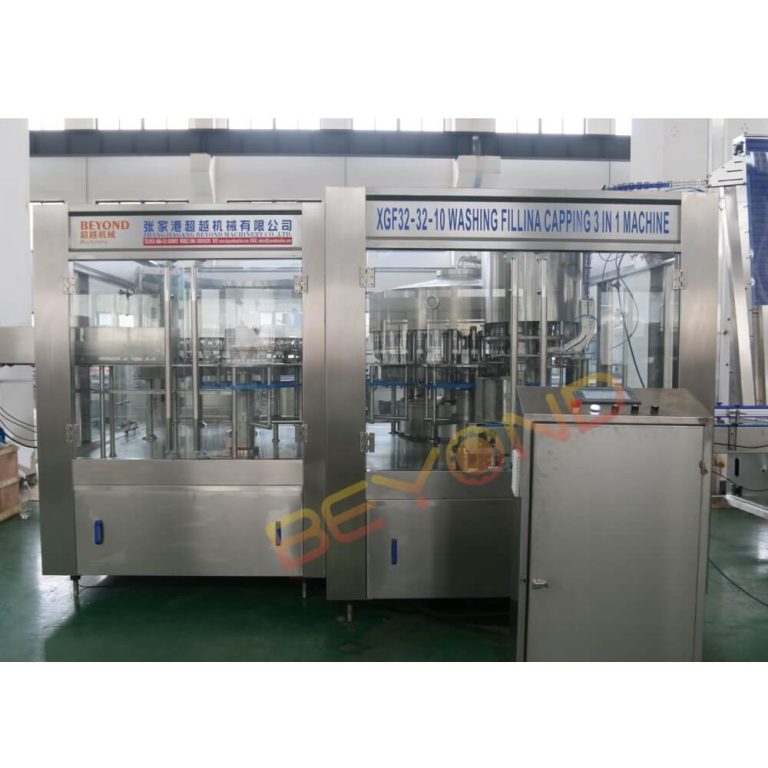

- Rinse, fill and cap integrated in one monoblock
- Room-temperature fill at 0.2–0.3 MPa
- Bottle height 150–340 mm, caps φ50–φ110
- CAD layout available on the line page
| Model | Capacity (500ml, B/h) | Overall size L×W×H (mm) |
|---|---|---|
| CGF16/12/6 | 4,000 | 2400 × 1670 × 2350 |
| CGF18/18/6 | 6,000 | 2470 × 1970 × 2350 |
| CGF24/24/8 | 10,000 | 2865 × 2170 × 2350 |
| CGF32/32/12 | 14,000 | 3700 × 2570 × 2350 |
| CGF40/40/12 | 17,000 | 3800 × 2950 × 2400 |
| CGF48/48/12 | 20,000 | 4500 × 3400 × 2400 |
From first email to a running line.
The order of work has stayed the same since 2007. Spare parts and remote support come after being there—not instead of it.
Inquiry
Bottle or can, still or carbonated, how many an hour, how much of the line in one contract.
Layout note
Engineering returns a recommended layout sized from your drawing and target BPH.
Quote
A clear equipment list, so engineering and purchasing review the same scope.
Build
Frames and parts cut in our own CNC shop; the line is assembled in one hall.
Factory acceptance
You come for FAT with your bottle standing on the line.

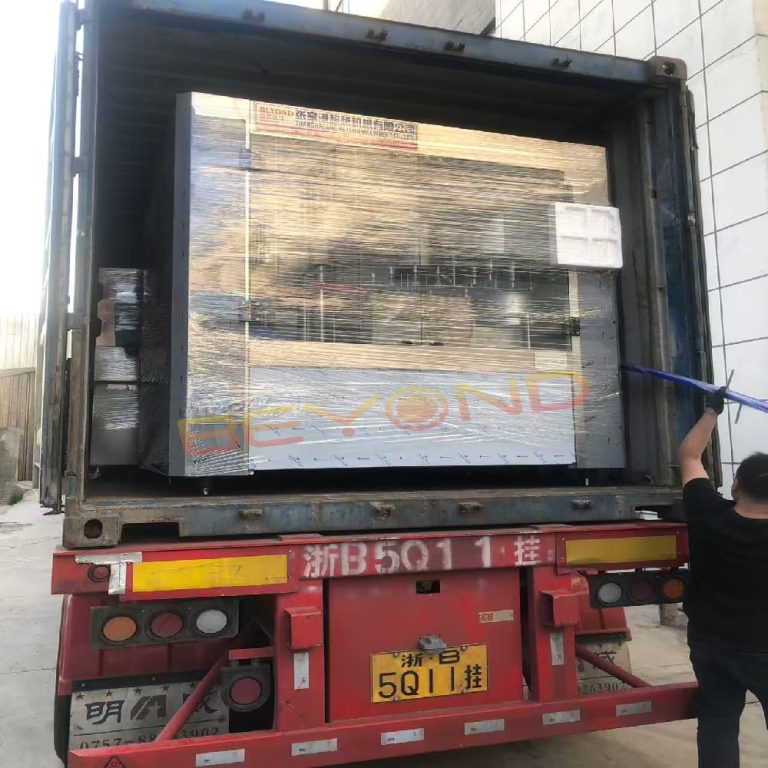

Ship
Export documentation and shipping prepared for your destination country.
Install & train
On-site installation, commissioning and operator training at your plant.
Support
Spare parts, 24/7 remote technical support and upgrades as you grow.

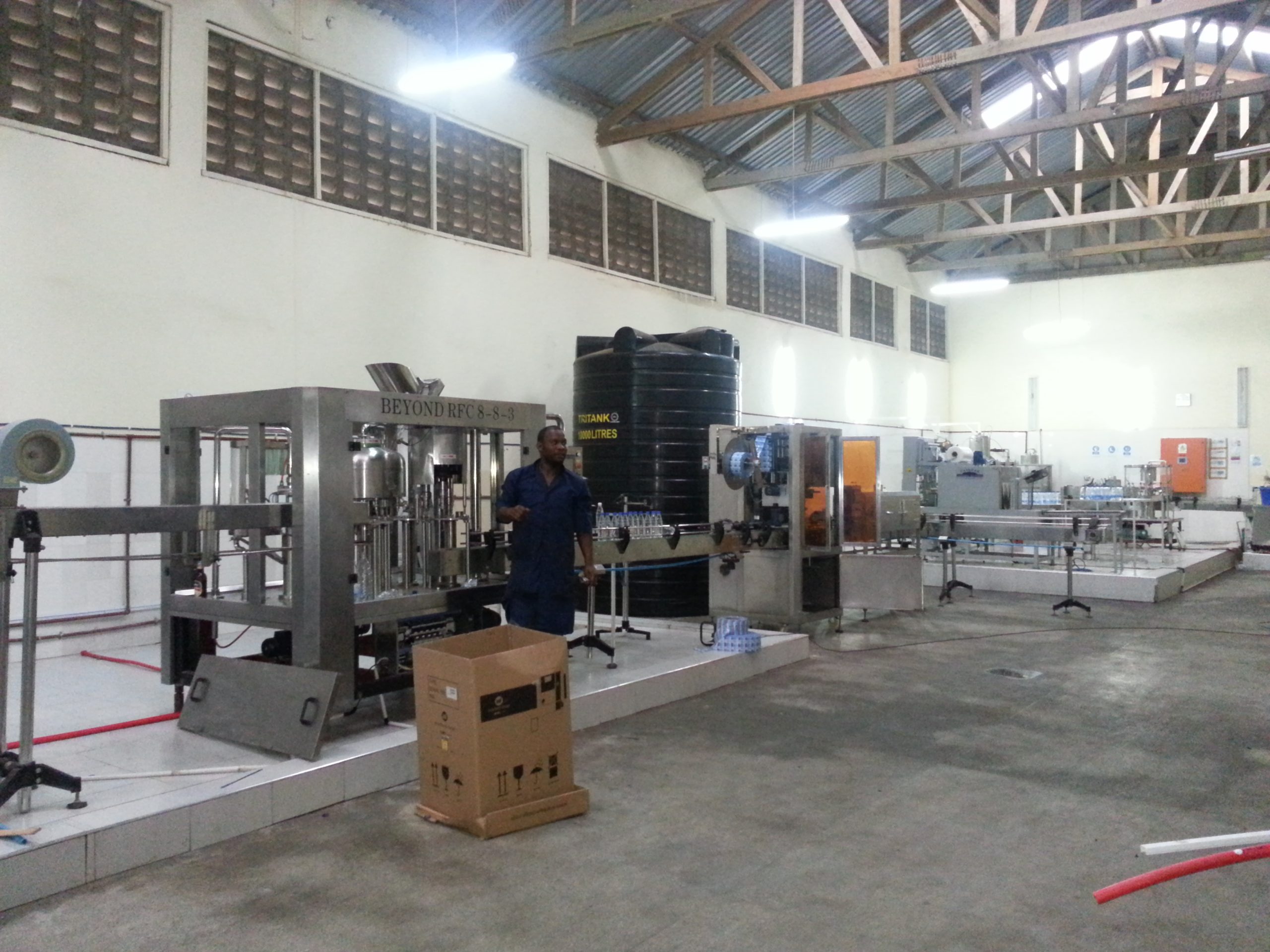

Lines running in plants worldwide.
Trusted in Europe, Latin America, the Middle East, Africa and Asia-Pacific. Real projects, in our customers' words.

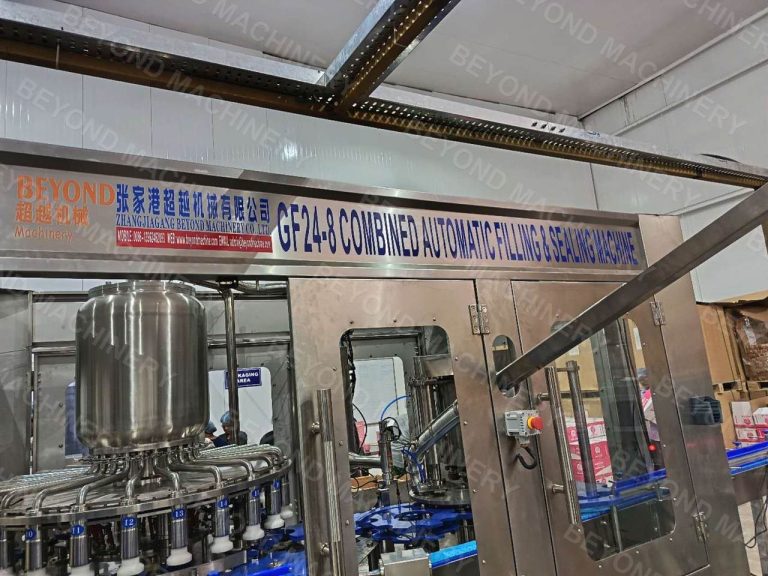

A Plastic Can Filling Line for Wine and Juice in Maharashtra
One Beer Can Filling Line, Four Can Sizes: A 3000 CPH Project for an Indian Brewery
High-Speed Can Filling and Seaming Machine for Carbonated Beer – 32-8 Model
How a Leading Russian Dairy Manufacturer Solved Bottling Line Bottlenecks with a High-Speed Bottle Unscrambler
Revolutionizing Milk Production: UAE Customer Raves About Our Bottle Unscrambler
Commissioning shouldn't wait on a long-haul ticket.
The crate leaving China is when the real work starts. We keep after-sales and installation teams in four regions so the first weeks of production have someone on the floor.
Meet us at exhibitions

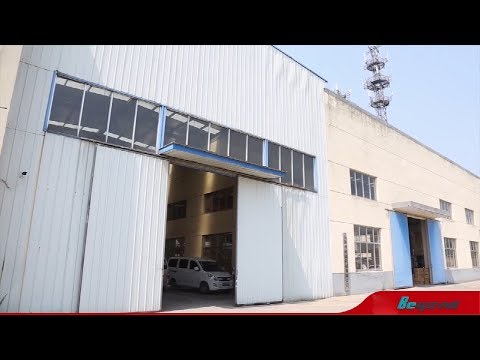

One industrial base on Lefeng Road, Zhangjiagang.
You work with engineering directly—layout notes, FAT options and export documentation—not an anonymous broker catalog.
- 2007
Ten people, about 1,000 m². Bottle filling machines for water, juice, CSD and beer.
- 2010
Moved to a 3,000 m² workshop so a complete line could be assembled in one hall, CNC shop on the same site.
- 2015
Added bottle blowing and packing—filler, labeler and case packer on one drawing.
- 2019
Certified as a high-tech enterprise.
A line that only looks right in
Zhangjiagang is not finished.
Quality guarantee
After installation, with wearing parts supplied free and other parts at the lowest price.
Guarantee termsInstallation & commissioning
Experienced technicians install and commission the whole line on site, keeping downtime to a minimum.
Learn morePlant design & line upgrades
Layouts for new plants, line conversions and moulds to run new products on existing lines.
Learn moreTraining, parts & 24/7 support
Operator training, change parts and spares, plus a 24/7 hotline: 0086-13962462093.
Spare partsQuestions plant buyers ask.
Comparing filling machine manufacturers, bottle fillers and turnkey bottling plant suppliers? Start here.
Ask an engineerDo you only sell standalone filling machines?
No. We supply individual fillers and can scope a full turnkey bottling plant: water treatment, blowing or combi, filler, labeling, shrink packing and conveyors—sized from your bottle drawing and target BPH.
PET vs glass vs can—can one manufacturer cover all?
Yes. We build PET and glass bottle filling machines and beverage canning lines. Dual-format on one carousel sounds convenient; many plants run cleaner with dedicated machines—we will say so if that fits your case.
What capacity do your automatic filling machines cover?
Water CGF-class rotary monoblocks span roughly 1,000–20,000 BPH depending on heads and bottle volume—always confirmed against your drawing, not a generic table.

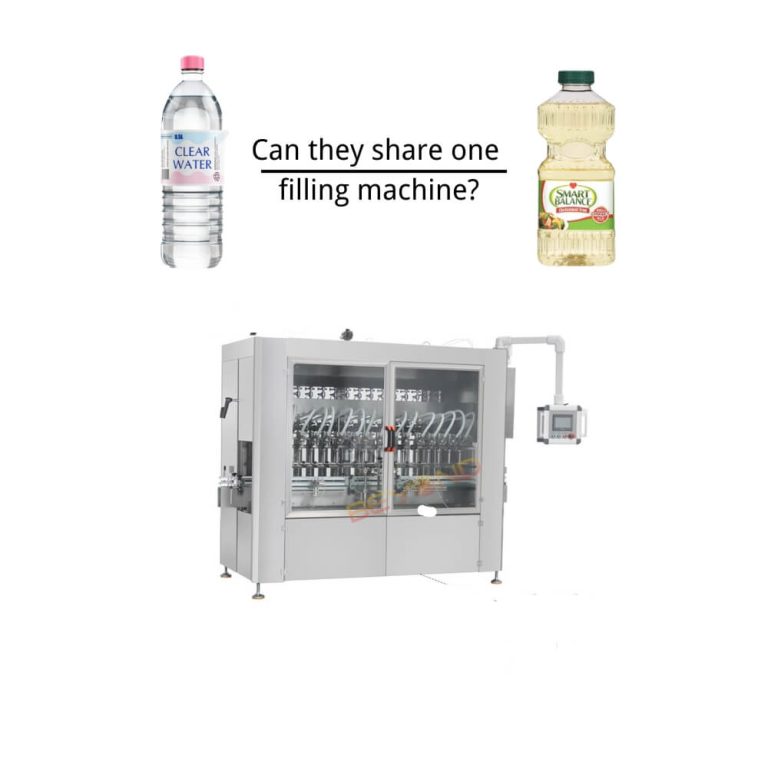

Can one machine run water and juice?
Sometimes, with changeover and cleaning discipline. Juice, pulp or CSD often needs different valves, temperatures or hygiene design—dedicated machines are often safer at scale. Send recipes or Brix notes with your inquiry.
Are you a manufacturer or a trading supplier?
Beyond Machinery manufactures filling and related equipment in Zhangjiagang, Jiangsu. You work with engineering directly—layout notes, FAT options and export documentation.
Do you support export installation and after-sales?
Yes. We prepare shipping documents, installation guidance, and remote or on-site commissioning support for international buyers. Share your timeline and local utility standards when you request a quote.
Machine knowledge & project news
Five lines in an email is enough to start.
Tell us your drink and target speed—we'll recommend a filling machine configuration and, if you need it, a turnkey bottling plant scope. We'd rather talk about your hall than send another catalog.
