Juice Production Line
It is used for juice and tea drinks. It is mainly composed of the following equipment: water treatment system (water tank, multi-medium filter, active carbon filter, precious filter), syrup preparing system (syrup melt pot, beverage mixer, and so on), filling machine, sterilization system, labeling and packing machine.
Inquiry NowDownload CAD Design
Juice Production Process
1
Water Treatment System
2
Syrup Mixing System
3
UHT Sterilization System
4
Rinsing Filling Capping Machine
5
Inverted-Bottle Sterilization System
6
Cooling System
7
Labeling Machine
8
Packing Machine

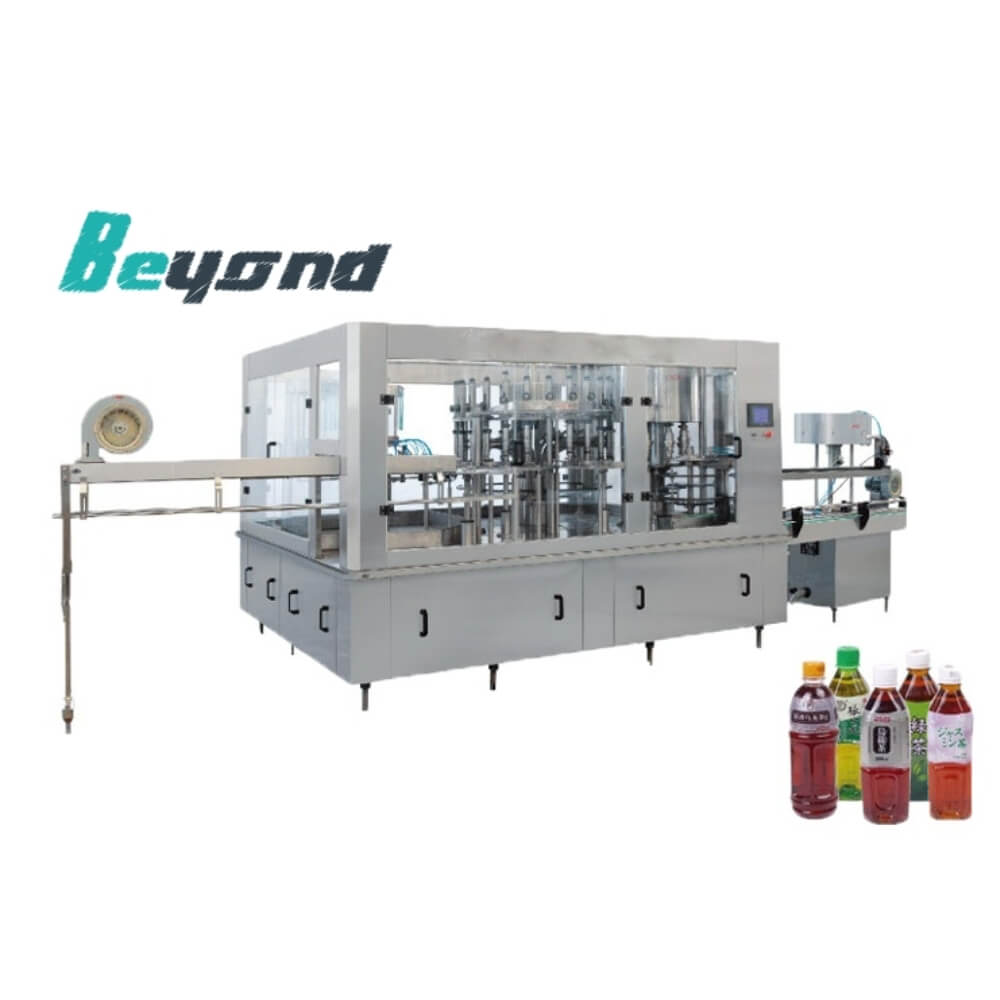

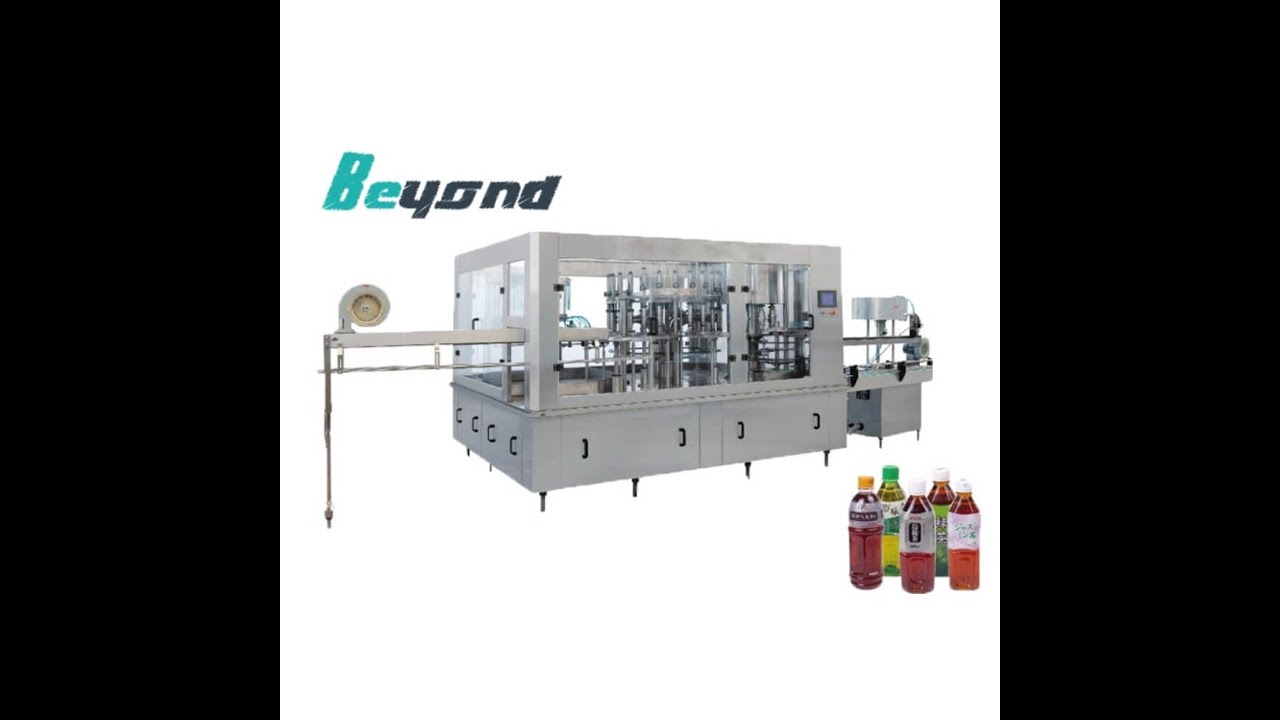

Plastic Bottle Juice Production Line
| Model: | CGF12/12/6 | CGF18/18/6 | CGF24/24/6 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
| Production Capacity: 500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard: (mm) | φ 50-φ 110 | |||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||
| Installed Capacity: (L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size: L× W× H(mm) | 2400× 1670 × 2350 | 2470× 1970 × 2350 | 2865× 2170 × 2350 | 3700× 2570 × 2350 | 3800× 2950 × 2400 | 4500× 3400 × 2400 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |

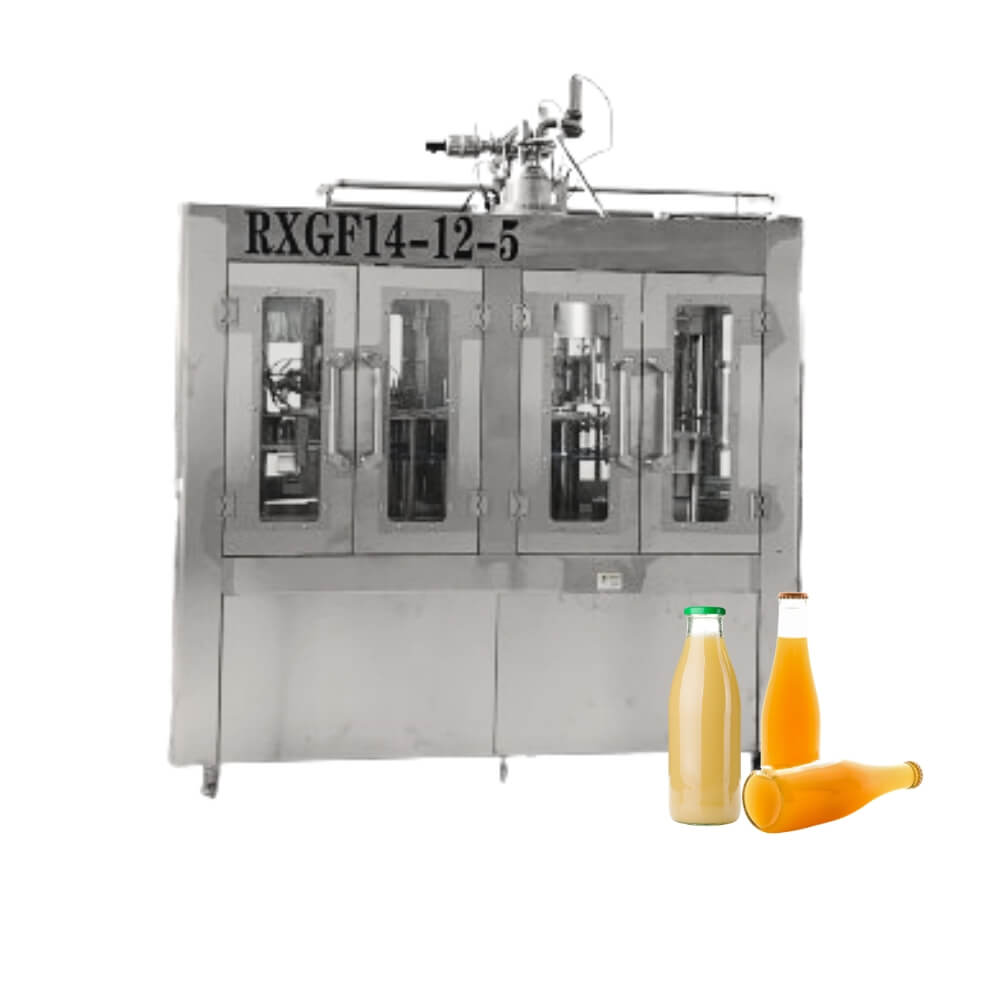

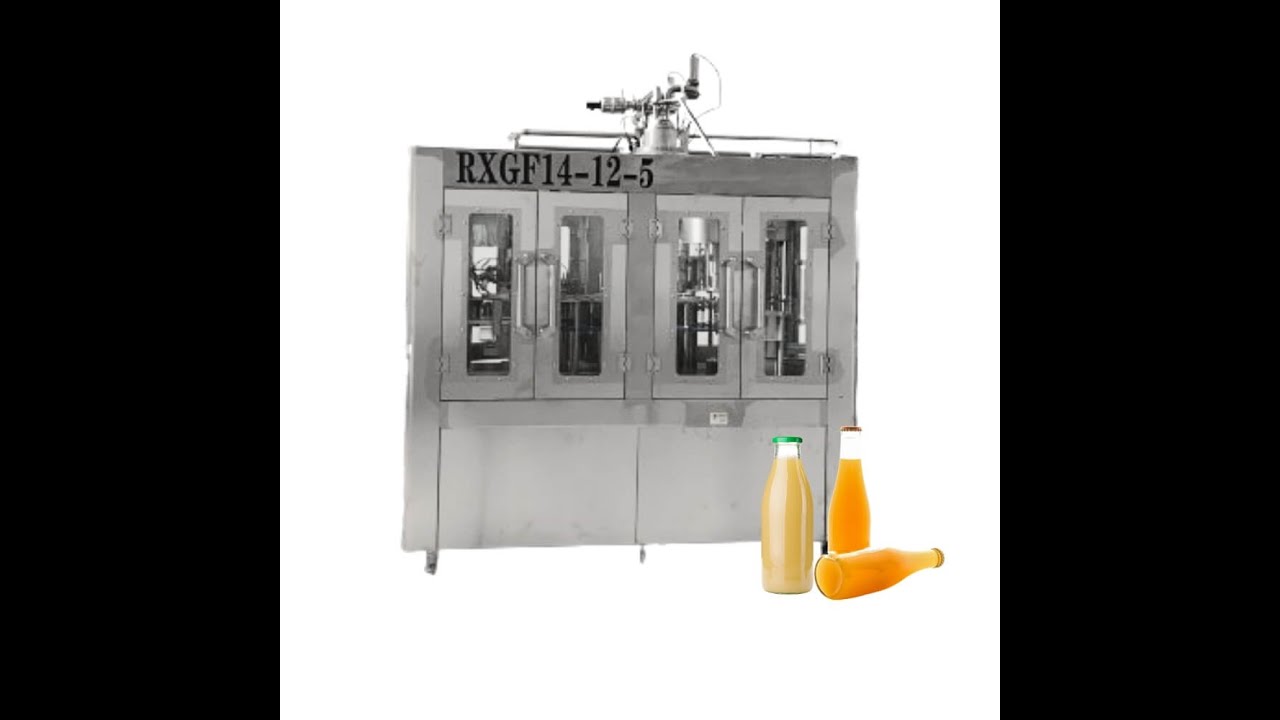

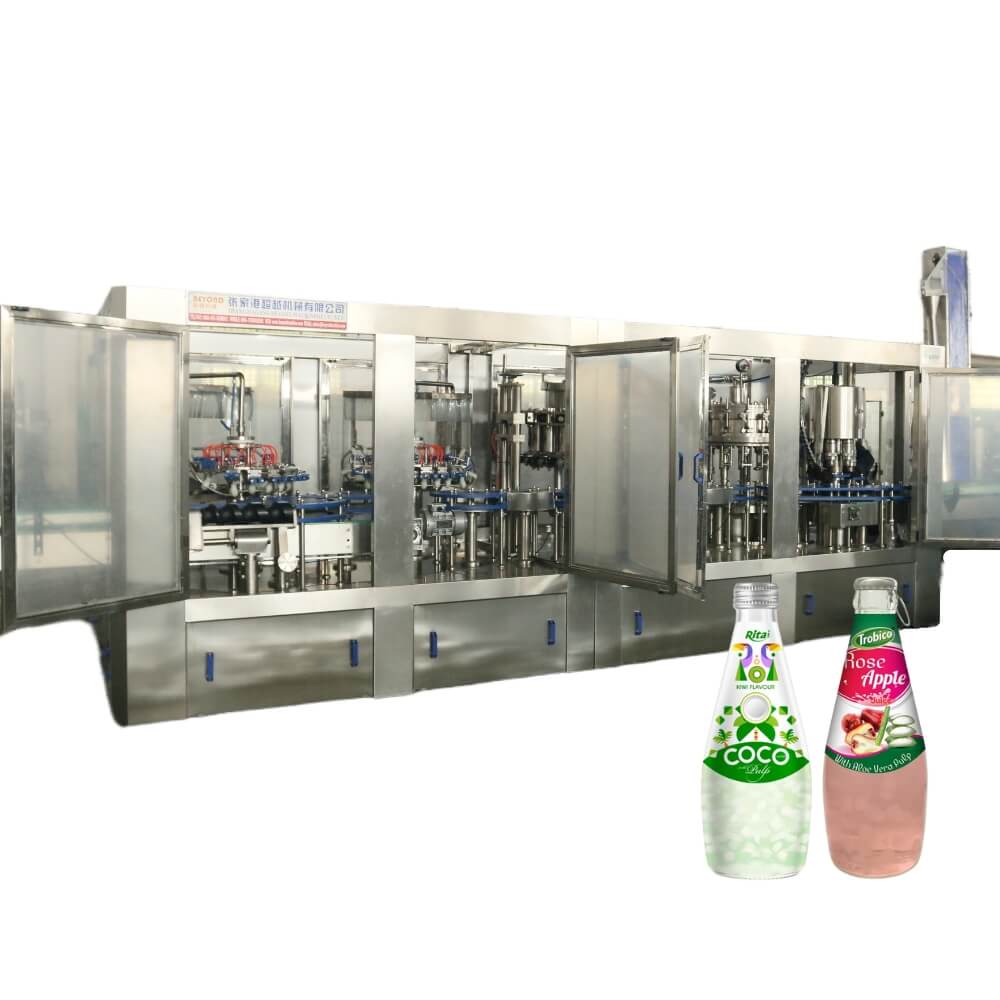

Glass Bottle Juice Production Line
| Model: | RCGF16-12-6 | RCGF18-18-6 | RCGF24-24-8 | RCGF32-32-10 | |||
| capacity: 500ml | 4000 | 6000 | 8000 | 12000 | |||
| bottle shape: | roud or square | ||||||
| PET bottle: (mm) | (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm | ||||||
| cap: | PE srew cap | ||||||
| filling precision: | ≤ ± 5mm | ||||||
| filling pressure: (Mpa) | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | 0.15-0.35 | |||
| rinsing pressure: (Mpa) | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | 0.2-0.25 | |||
| filling volume: (L) | 0.5 | 3.5 | 4 | 6 | |||
| overall size: (mm) | 2150*1400 *2050 | 2450*1800 *2350 | 2780*2200 *2350 | 3600*2650 *2350 | |||
| weight: (kg) | 2500 | 3500 | 4500 | 5500 | |||
Flow Diagram
OF JUICE PRODUCTION LINE
Water Treatment System
- Low-pressure shutdown protection. When the pre-treatment water supply is insufficient and the high-pressure pump inlet pressure is lower than 0.05MPa, the protection action will be automatically stopped and an audible and visual alarm will be issued.
- The pretreatment is equipped with a control multi-way valve, and the quartz sand filter and the activated carbon filter are automatically cleaned under a certain pressure difference.
- The reverse osmosis membrane cleaning system is equipped with physical cleaning, chemical cleaning, and filling of the reverse osmosis membrane module.
Syrup Mixing System
- It adopts a high-quality water pump and Siemens electrical equipment and other parts to form a complete automatic control system.
- The advantages are motor coordination, beautiful appearance, convenient rinsing, and high automatic level.
- It is suitable for mixing all kinds of drinks, such as soda water, fruit juice, cola, and drinks.
UHT Sterilization System
- Reliable operation, high pressure material
- Easy cleaning and low cost maintenance
- Temperature control easily
Rinsing Filling Capping Machine
- The machine is mainly used in the beverage-filling operations.
- Suitable for non-carbonated drink-filling machines, The three functions of bottle wash, fill and seal are composed in one body of the machine.
Inverted-Bottle Sterilization System
- This machine is mainly composed of a bracket, a vertical bottle-feeding device, a horizontal bottle-feeding device, and a power device.
- It adopts a mechanical stepless transmission device and the output is adjustable.
- The frame is made of SUS304 stainless steel, with a beautiful appearance and easy operation.
Cooling System
- The machine reduces the temperature of hot filling drinks to 36-40 or increases the temperature of cold filling carbonic acid drinks to 36 — 40.
- It is used in PE bottled hot tea drinks and carbonic acid drinks cold filling production lines. The machine can eliminate the condensed water on the external side of bottles, and keep bottles clean and dry.
- It makes bottles easier to label and pack.
Labeling Machine
- Machine-wide adoption of a mature technology PLC control system, so that the whole stable, high-speed
- Operating system using touch-screen control, simple, practical, efficient
- The advanced technology of printer code machine, so that the writing clear, fast, and stable
Packing Machine
- It adopts the imported PLC program automatic control. It has a stable function and precise control.
- It adopts the advanced spiral wind circulating structure and three-layer heat insulation to save resources.
- It has automatic functions like conveying materials, unscrambling, shrinking and cooling & design finalizing flow.
