In the rapidly growing fruit juice market, choosing the right juice filling machine is a critical decision for any beverage producer. Whether you’re a small startup or an established manufacturer looking to scale, the right filling solution ensures product quality, regulatory compliance, and operational efficiency. This guide breaks down the key types of juice filling machines, their technical features, and practical advice based on over 20 years of industry experience.
Why the Right Juice Filling Machine Matters
Juice products—especially tropical blends, pulp-containing drinks, or high-value NFC (Not From Concentrate) juices—require different filling approaches. A poorly matched machine can result in frequent downtime, excessive waste, and unstable product quality. With consumer demand rising for premium and health-oriented juices, Latin American producers need flexible, hygienic, and scalable bottling solutions.
Types of Juice Filling Machines
Selecting a juice filling machine depends on the product type, production volume, packaging format, and automation level. Let’s explore how machines are classified from different perspectives to help you match the right solution to your needs.
✅ By Degree of Automation
- Semi-Automatic Machines
Ideal for small enterprises and startups. These systems are budget-friendly but require manual bottle feeding and capping. They’re suitable for batch production under 1,000 bottles per hour.
- Fully Automatic Machines
Integrated systems that handle rinsing, filling, capping, and labeling. Designed for high-speed operations (from 2,000 to 24,000 BPH), these machines reduce labor and improve hygiene.
✅ By Filling Method
- Gravity Filling
Suitable for clear, low-viscosity juices like orange, grape, or apple juice. It relies on natural gravity, offering a cost-effective and straightforward solution.
- Vacuum Filling
Creates negative pressure in the bottle to avoid air intake. This is ideal for premium juices like NFC or antioxidant-rich blends. Vacuum filling reduces oxidation, preserving flavor and nutrients.
- Isobaric Filling (Pressure Filling)
Designed for carbonated fruit beverages or soda-style fruit drinks. It maintains pressure balance between the tank and the bottle, preventing loss of carbonation.
- Piston Filling
Best for thick juices, smoothies, or beverages containing pulp or fiber, such as mango pulp or aloe vera drinks. Large-bore pistons ensure smooth filling without clogging.
✅ By Bottle Type Adaptability
- Universal Filling Machines
Equipped with adjustable platforms and clamps, allowing them to handle different bottle shapes and sizes—from 200ml PET bottles to 1L glass jars. Perfect for manufacturers offering multiple SKUs.
- Customized Filling Machines
Tailored specifically for a single bottle design. Often used for premium products in uniquely shaped glass containers. Offers precision but limits flexibility.
Juice Filling Process Overview

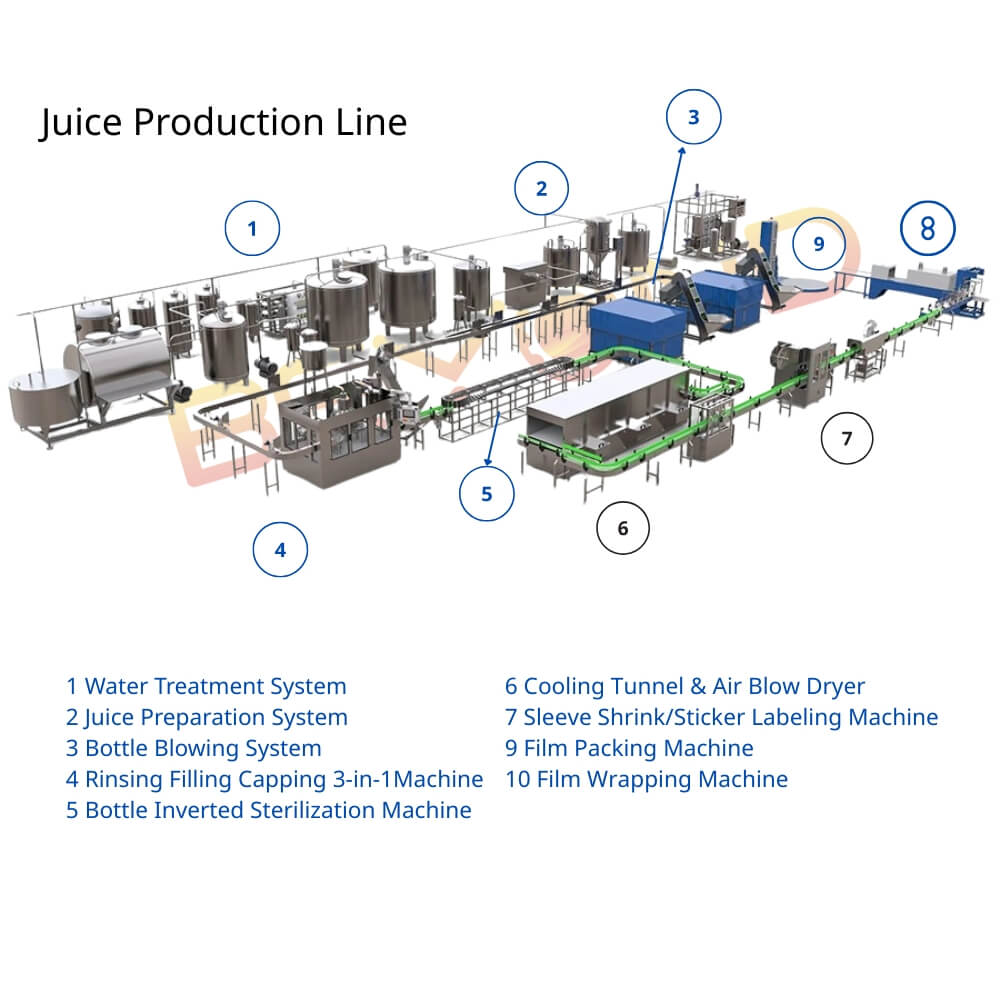

A standard juice bottling line includes:
- Juice Preparation – Includes pasteurization, homogenization, and deaeration.
- Bottle Rinsing or Sterilization – Especially important for hot fill or aseptic applications.
- Filling – Based on the method described above.
- Capping – Using ROPP, screw caps, or press caps depending on bottle type.
- Labeling – Adhesive, shrink sleeve, or wrap-around.
- Final Packaging – Into cartons or shrink-wrapped trays for transport.
Maintaining proper temperature, especially in hot-fill operations, is crucial to avoid vacuum formation or product leakage.
Key Components & Technical Parameters

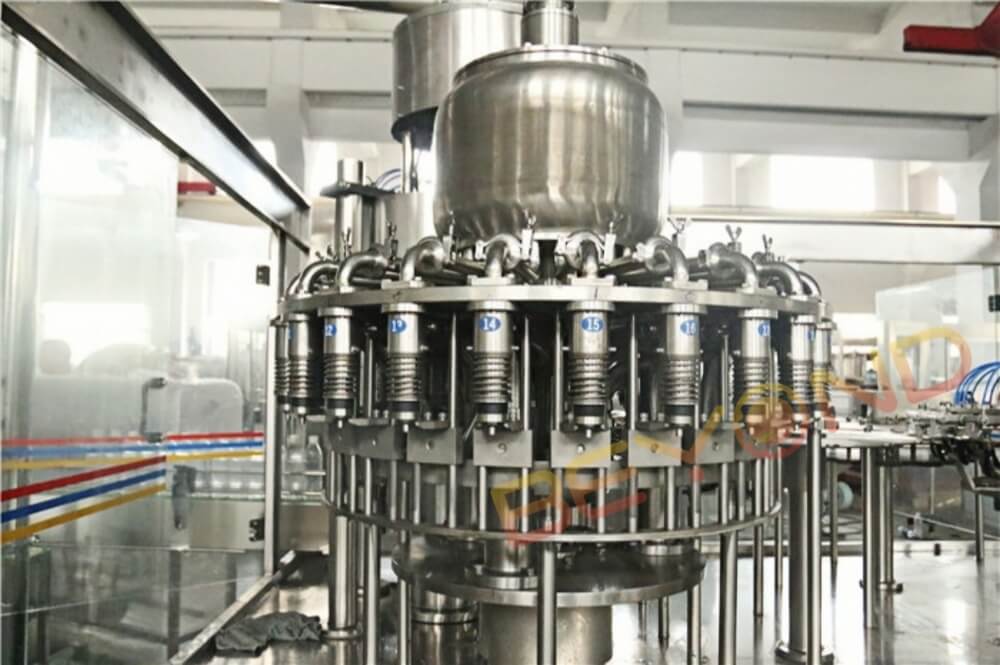

- Filling Valves – Gravity, piston, or pressure-based, depending on juice type.
- Flow Meters or Liquid Level Sensors – For precise volume control.
- Pump System – Gear pump for thin liquids; lobe pump for pulpy products.
- Material – All food-contact surfaces should be 304 or 316L stainless steel.
- Automation System – Siemens or Schneider PLCs with HMI touchscreen interface.
- Speed & Accuracy – Up to ±5% filling accuracy; speeds up to 24,000 BPH.
Common Problems & Practical Solutions
| Issue | Likely Cause | Recommended Solution |
| Inconsistent Fill Levels | Air pockets in the product line or unstable liquid flow | Install a buffer tank and a deaeration valve at the liquid inlet to eliminate trapped air and stabilize flow. |
| Foaming During Filling | High flow rate or poor nozzle design | Use anti-foaming nozzles or reduce pressure |
| Bottle Breakage | Hot fill without preheating | Preheat bottles to reduce temperature shock |
| Pulp Clogging | Small valves in gravity filler | Use larger-diameter piston valves |
Maintenance & Cleaning
Hygiene is non-negotiable in juice production. To ensure safety and long-term equipment life:
- Use CIP (Clean-in-Place) systems with hot water (80–95°C) and food-grade detergents.
- Clean all product-contact surfaces after every shift or product switch.
- Sterilize filling valves regularly, especially in aseptic systems.
- Inspect pump chambers and valves for sediment or residue.
Final Thoughts
From a local maracuyá (passionfruit) juice startup to a large-scale pineapple juice exporter, every Latin American juice business can benefit from matching the right juice filling machine to its product and market. Investing in the correct technology helps improve product consistency, meet hygiene standards, and scale operations efficiently.
Whether you’re working with PET, glass, or custom bottles—gravity fill, hot fill, or aseptic—a machine tailored to your unique production needs is the foundation for growth in a competitive juice market.
