15000BPH 4-in-1 Juice Filling Machine | Pulp Juice Solution
Our Automatic 15000BPH 4-In-1 Fruit Pulp Juice Rinsing, Filling & Capping Machine is designed for high-speed production, offering two distinct filling stages: one for fruit pulp and another for juice. With a capacity of 15,000 bottles per hour, this machine ensures precise filling of both pulp and juice, thorough bottle rinsing, and secure capping, all in a compact and efficient unit. Ideal for large-scale fruit juice production, it maintains consistent product quality while reducing operational costs and enhancing efficiency.
Specifications
| Items | Details |
|---|---|
| Production Capacity | 15000 BPH |
| Washing Head | 50 & 40 |
| Pulp Filling Head | 32 |
| Juice Filling Head | 40 |
| Sealing Head | 10 |
| Applicable Bottle Volume | 200ML – 2250ML |
| Suitable Bottle Height | H = 170 – 320mm; Φ = 50 – 100mm |
| Bottle Neck Diameter | 20 – 40mm |
| Bottle Washing Pressure | 2 – 3 MPa |
| Filling Temperature | Hot Filling |
| Filling Accuracy (Liquid Level) | +/- 1mm |
| Power | 7.5 kW |
| Power Supply | 380V – 50Hz / 220V – 50Hz |
| Machine Size (mm) | 5650 × 2300 × 2400 mm |
| Weight | 8500 kg |
Video
Description
Washing Unit (Rinsing Section)
-
Equipped with PLC-timed dual water rinsing nozzles.
-
Bottle grips are made with food-grade rubber, avoiding contamination.
-
Designed for quick changeover — supports bottle sizes from 200ml to 1.5L.
-
Clean water is sprayed directly into the bottle neck to reduce waste and improve cleaning efficiency.

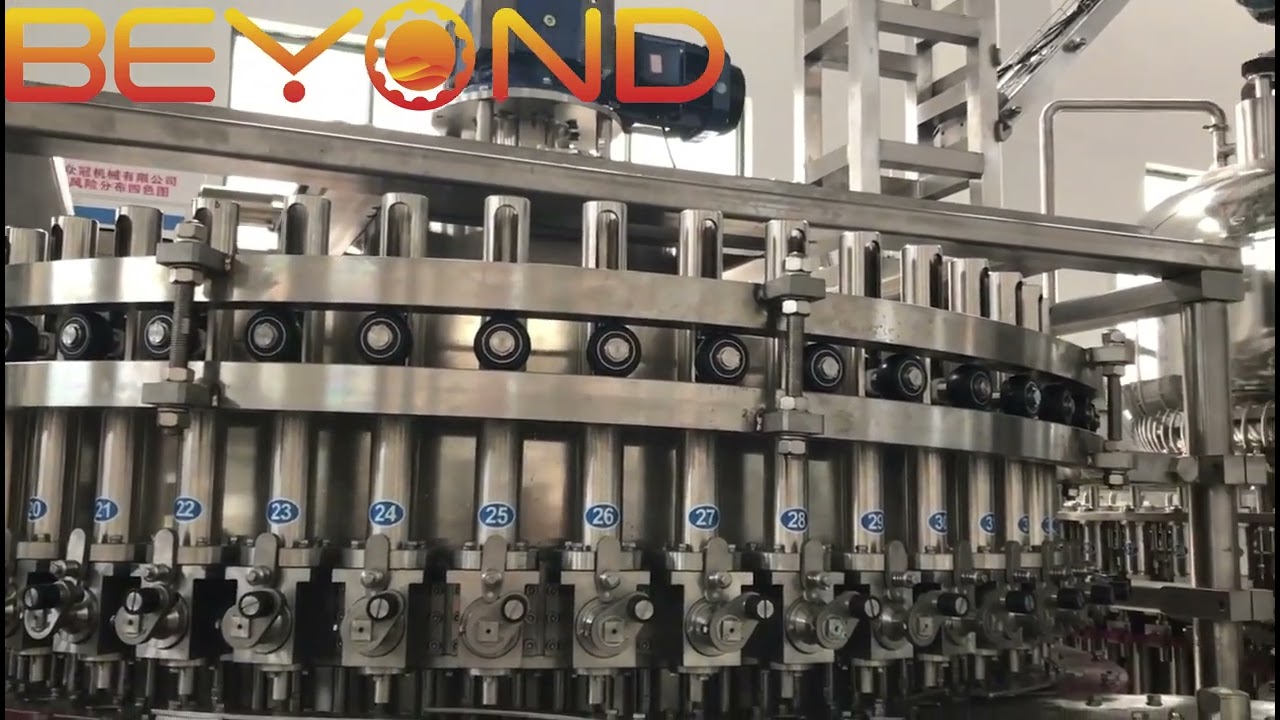

Filling Unit (Pulp-Compatible)
-
Gravity or low-vacuum filling valves with large-diameter channels.
-
Supports hot-filling with pulp up to 5mm in size.
-
Controlled via flow meters or weighing systems (optional for high accuracy).
-
Pulp circulation tank ensures pulp stays in suspension and avoids settling.
Capping Unit
-
High-speed magnetic torque capping heads prevent cap over-tightening.
-
Cap unscrambler with automatic detection system—stops the line when caps are missing or jammed.
-
Cap sterilization available (UV tunnel or ozone spraying as option).
-
Bottle neck holding system ensures bottles stay stable during capping.
