3-in-1 Dairy Milk Bottling Machine | Rinse Fill Cap
An automatic 3-in-1 dairy milk bottling machine combines rinsing, filling, and capping in one compact system. Designed for plastic bottles, it ensures hygienic, high-speed milk processing with minimal human intervention. Ideal for small to large-scale dairy operations seeking efficiency and reliability.
Specifications
| Model: | CGF12/12/6 | CGF18/18/6 | CGF24/24/6 | CGF32/32/12 | CGF40/40/12 | CGF48/48/12 |
| Production Capacity: 500ml(B/h) | 4000 | 6000 | 10000 | 14000 | 17000 | 20000 |
| Suitable Bottle Standard: (mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard: (mm) | φ 50-φ 110 | |||||
| Filling Pressure: (Mpa) | 0.2-0.3 | |||||
| Installed Capacity: (L) | 3.13 | 3.84 | 3.84 | 5.6 | 6.3 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size: L× W× H(mm) | 2400× 1670 × 2350 | 2470× 1970 × 2350 | 2865× 2170 × 2350 | 3700× 2570 × 2350 | 3800× 2950 × 2400 | 4500× 3400 × 2400 |
| Total Weight: (kg) | 2500 | 3000 | 4000 | 5000 | 6000 | 7000 |
Video
Description

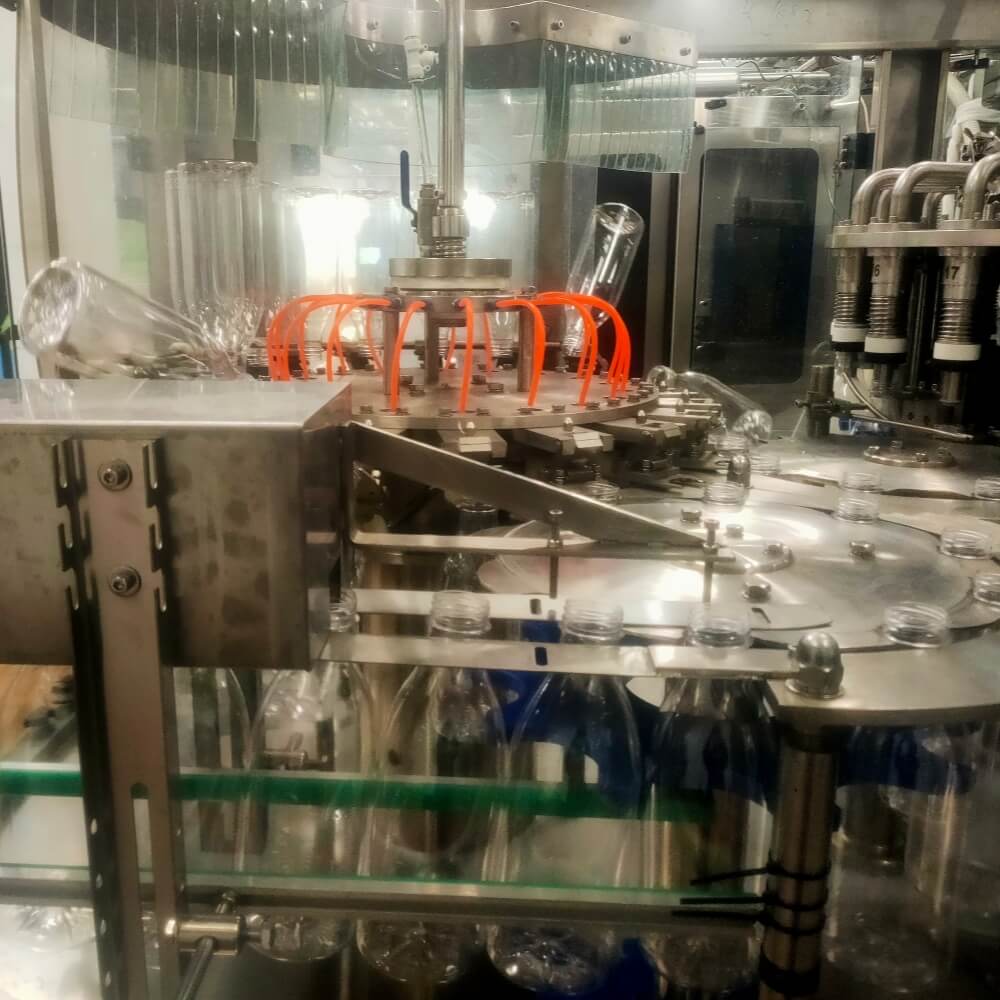

Rinsing System
-
Rotary-type bottle gripper system ensures stable and fast inverting rinsing
-
Internal rinsing with sterile water or air-sterilized water (CIP compatible)
-
High-efficiency no-drip spray nozzles positioned precisely inside the bottle
-
Suitable for cold chain production with stainless steel SUS304/316 structure

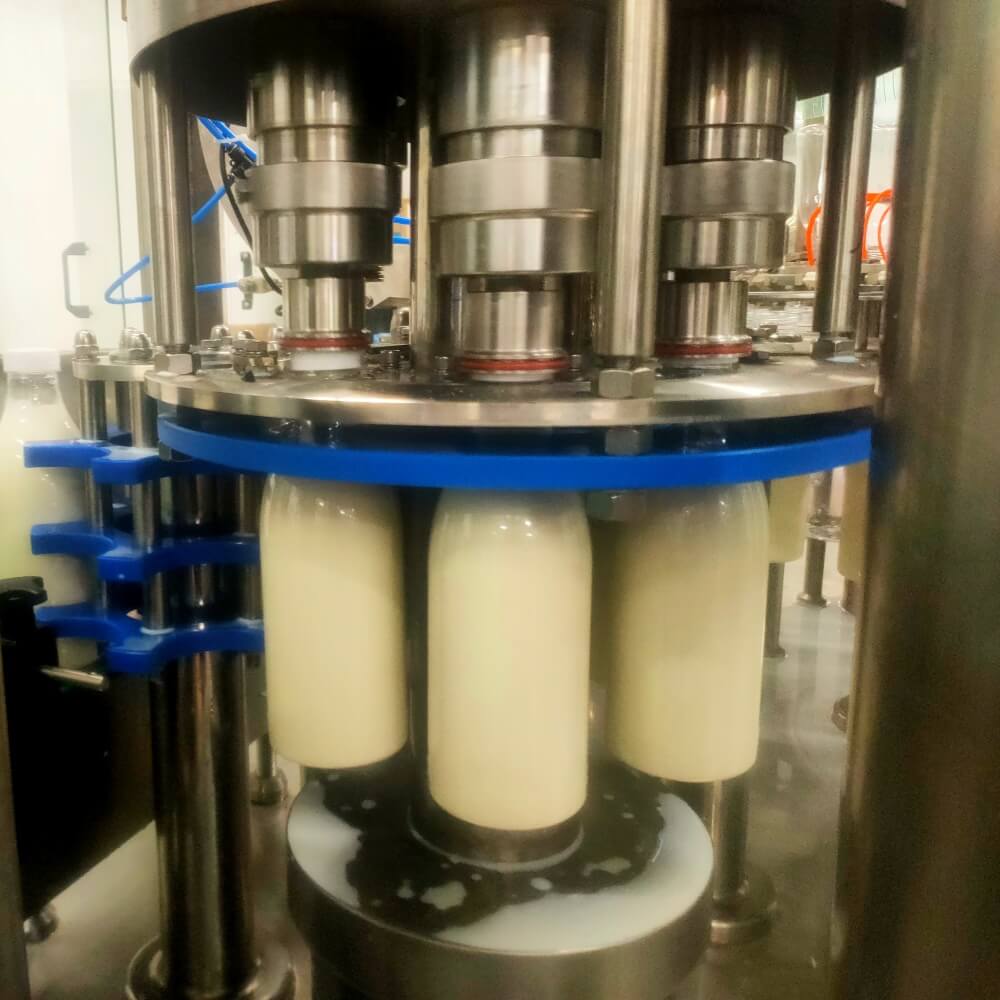

Filling System
-
Gravity or slight vacuum filling for milk and low-viscosity dairy liquids
-
Contactless filling valve with sanitary-grade seals, ensuring hygiene
-
Flow-meter (electromagnetic or mass flow) available for high accuracy ±0.2%
-
Real-time CIP/SIP (clean-in-place/sterilize-in-place) integration
-
Optional nitrogen flushing system for extended milk shelf life
Capping System
-

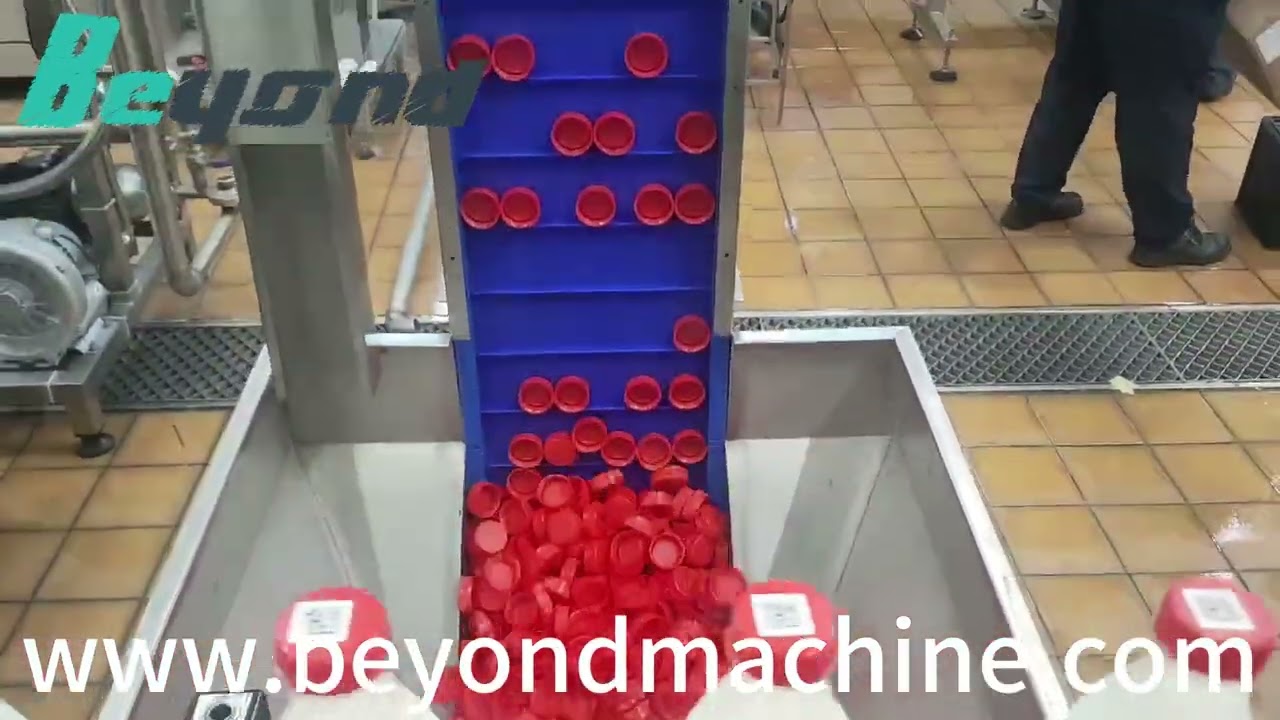

Automatic cap unscrambler with cap UV sterilization unit
-
Torque-controlled capping head, avoids cap over-tightening and leakage
-
Suitable for various cap types (screw caps, flip-top caps, aluminum foil seal caps)
-
Cap absence detection and reject system
