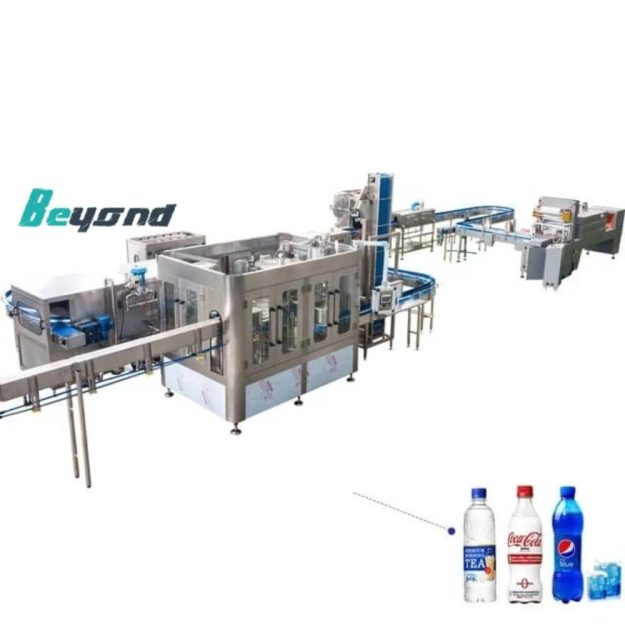

3-in-1 Plastic Bottle Carbonated Drink Filling Machine

A 3-in-1 plastic bottle carbonated drink filling machine combines rinsing, filling, and capping into one compact system. It’s ideal for soft drink manufacturers seeking high efficiency, stable carbonation levels, and hygienic operation. Designed for PET bottles, this machine minimizes manual handling, ensures precise CO₂ retention, and supports various bottle sizes with quick format changeovers.

Get A Quote

Specifications

Model DCGF 16126 DCGF 18186 DCGF 24248 DCGF 32328 DCGF 404010 DCGF 484812 DCGF 606015 DCGF 808020
Heads of washing, filling, sealing 16-12-6 18-18-6 24-24-8 32-32-8 40-40-10 48-48-12 60-60-15 80-80-20
Production capacity(bottle/hour) 3000-4000 5000-7000 8000-12000 12000-15000 16000-18000 20000-24000 24000-28000 36000-40000
Suitable bottle height H=170-320
Spraying pressure 0.25-0.3
Total Power 1.5+0.37 2.2+0.37 3+0.45+ 0.25 5.5 7.5 11 15 19
Overall dimension(L×W×H) 2300× 1680× 2650 2500× 1760× 2650 3100× 2100× 2650 3800× 2800× 2650 4000× 3300× 3400 4850× 3650× 3300 6500× 5400× 3500 7650× 6400× 2700
Weight 2600 3500 4650 6800 8500 10000 12500 16000

Video

YouTube video

Description

plastic-bottle-carbonated-drink

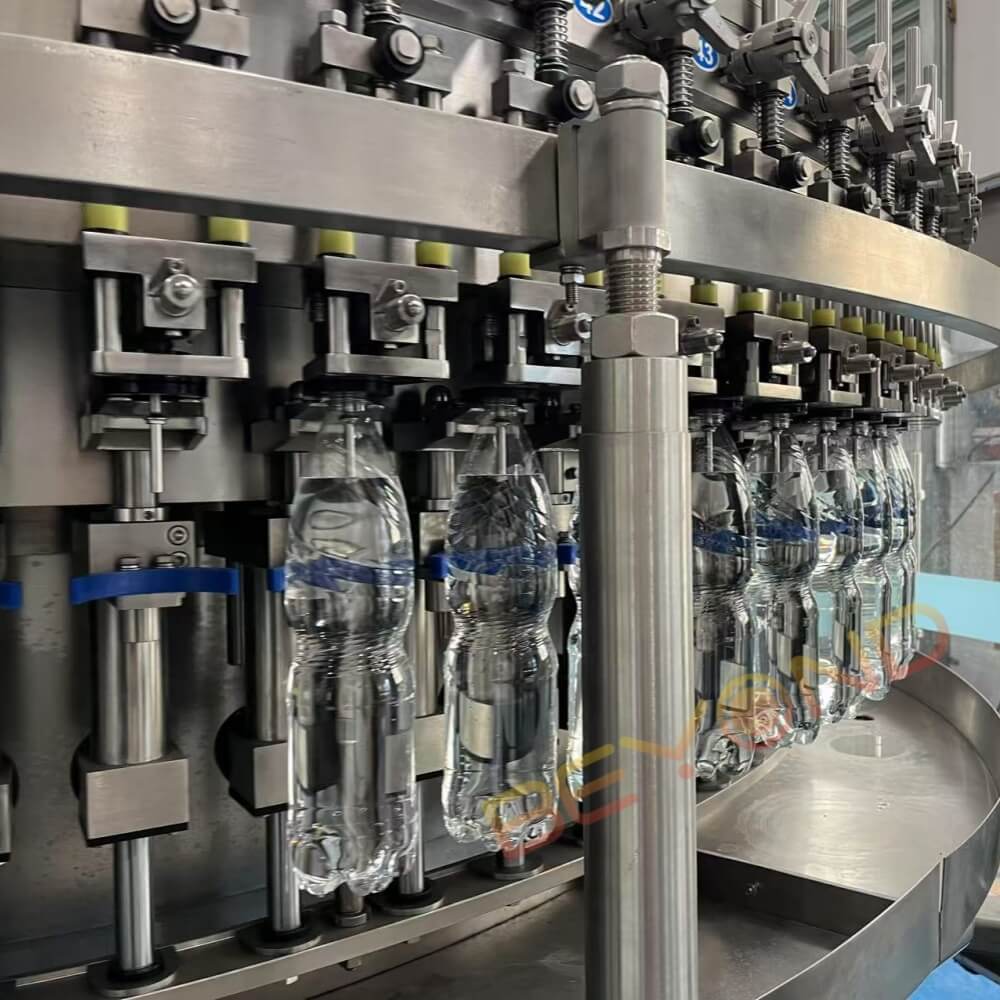

Rinsing System

Working Principle:
The rotary rinsing unit grips the bottle neck using stainless steel clamps and inverts the bottles to perform a pressurized water rinse. After the rinse cycle, bottles are drained and uprighted, ready for filling.

Technical Highlights:

  • 304/316L stainless steel nozzles for sanitary operation

  • Ion air or ozone optional pre-treatment available

  • Neck-handling design ensures compatibility with lightweight bottles

  • Adjustable rinsing time & water recycling for eco-efficiency

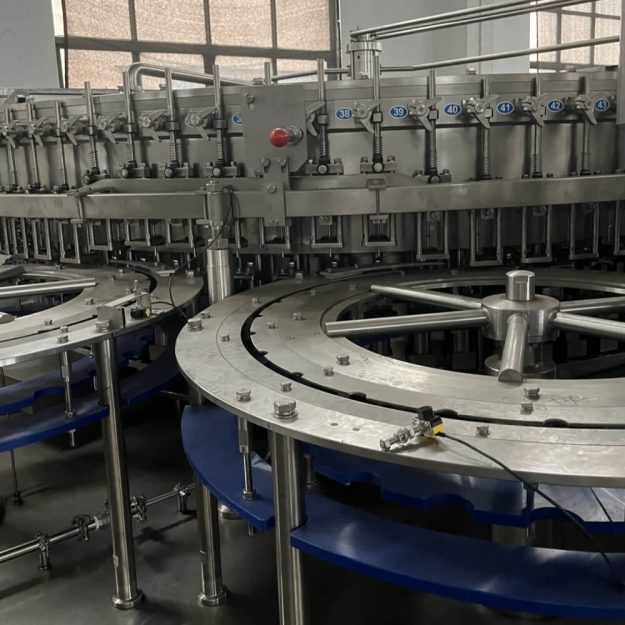

Filling System (Isobaric Carbonation Filling)

Working Principle:
The isobaric filling system operates by equalizing pressure between the bottle and filling tank using CO₂ gas. Once pressure is equal, the beverage flows into the bottle without foaming or CO₂ loss.

Technical Highlights:

  • Mechanical or electronic filling valves (based on speed requirement)

  • Vacuum & CO₂ pre-charge for better CO₂ retention

  • Pressure-balanced filling to prevent foaming or oxidation

  • Flow meter option available for high-speed precision

Capping System

Working Principle:
The capping turret accurately places and torques plastic screw caps using magnetic clutch capping heads. Designed to handle standard PCO, BPF, and other closures with high precision.

Technical Highlights:

  • Automatic cap sorter and elevator

  • No-bottle-no-cap & cap-missing detection system

  • Torque-adjustable magnetic capping heads

  • Cap sterilization with UV or ion air (optional)
