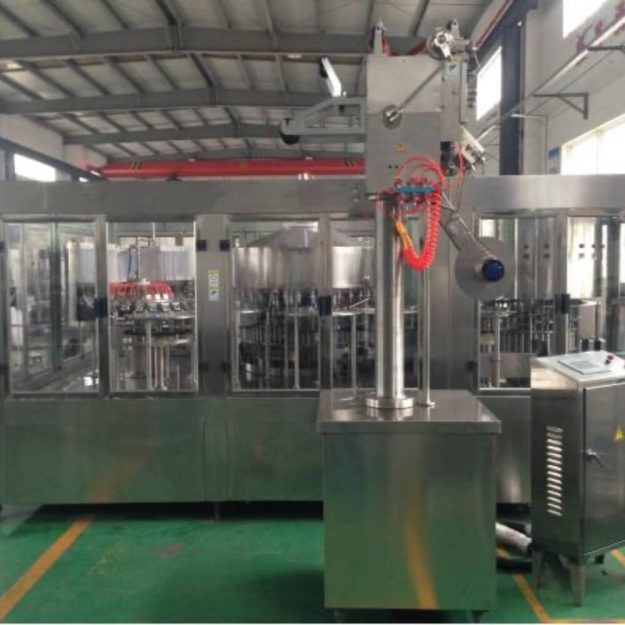

Aluminum Foil Filling & Sealing Machine
Our Aluminum Foil Filling & Sealing Machine is designed to deliver high-speed, hygienic, and reliable packaging for various liquids and semi-liquids. Ideal for yogurt, milk, juice, sauces, cosmetics, and pharmaceutical products, this machine combines precise volumetric filling with airtight foil sealing, ensuring long shelf life and product integrity.
Specifications
| product model | CGRF24-24-18 |
| production capacity | 6000BPH |
| washing head | 24 head |
| filling head | 24 head |
| sealing head | 18 head |
| sealing form | electric heat sealing (temperature 150-250 degrees) |
| electronic control: | switch electrical control |
| POWER | 6.5KW |
| Dimension | 2500X1830X2220 |
Video
Description

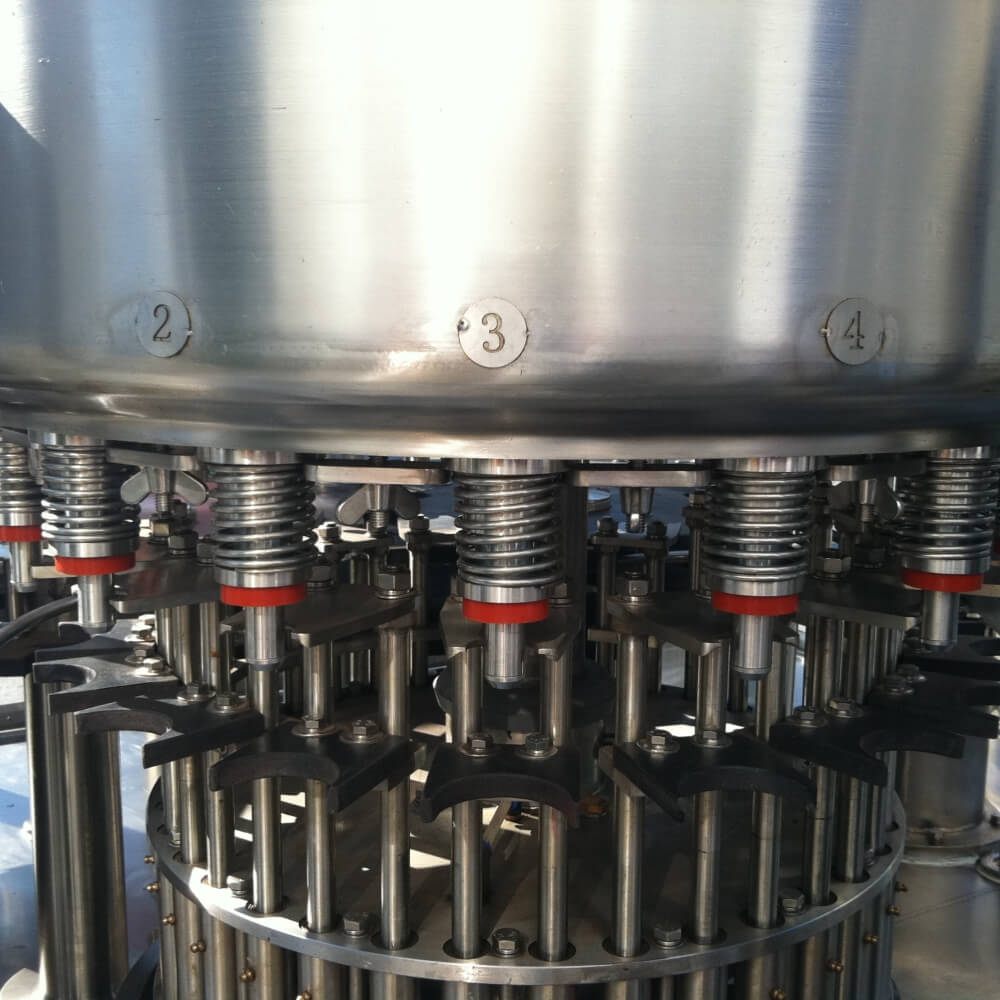

Filling System – High Accuracy, Minimal Waste
-
Type: Volumetric piston filling / Servo filling (optional)
-
Filling Range: 50ml – 500ml (customizable)
-
Accuracy: ±1%
-
Material Contact: SUS316L stainless steel for sanitary compliance
-
Filling Nozzles: Drip-proof nozzles, multi-head configuration available
-
Control System: PLC + Touch Screen Interface (Siemens/Delta optional)
-
Optional: CIP system, heated hopper, anti-foam filling mode
🟢 Designed for fast changeovers and easy cleaning to meet GMP standards.
Sealing System – Reliable Aluminum Foil Seal
-
Sealing Type: Roll or pre-cut aluminum foil
-
Sealing Method: Pneumatic or servo-driven heat sealing
-
Temperature Control: Intelligent PID-controlled sealing for leak-free performance
-
Film Sensor: Automatic foil detection & positioning system
-
Optional: Date coding (inkjet or thermal printer), automatic foil cutting
