Automatic 2-in-1 Juice Can Filling Machine | High Speed & Hygienic
An Automatic 2-in-1 Juice Can Filling Machine integrates both filling and sealing processes into one compact system. Designed for high-speed production of non-carbonated beverages such as fruit juice, tea, and energy drinks, this machine ensures hygienic operation, precise liquid level control, and minimal waste. Ideal for medium to large-scale beverage manufacturers.
Specifications
| Capacity: | 2000cph |
| filling valve: | 12units |
| seaming head: | 1units |
| Can diameter | Φ65mm |
| Can height | 122～160mm |
| Power: | 6.5KW |
| Dimensions: | L×W×H=2400×2000×2200(mm) |
| Weight: | 2000Kg |
Video
Description

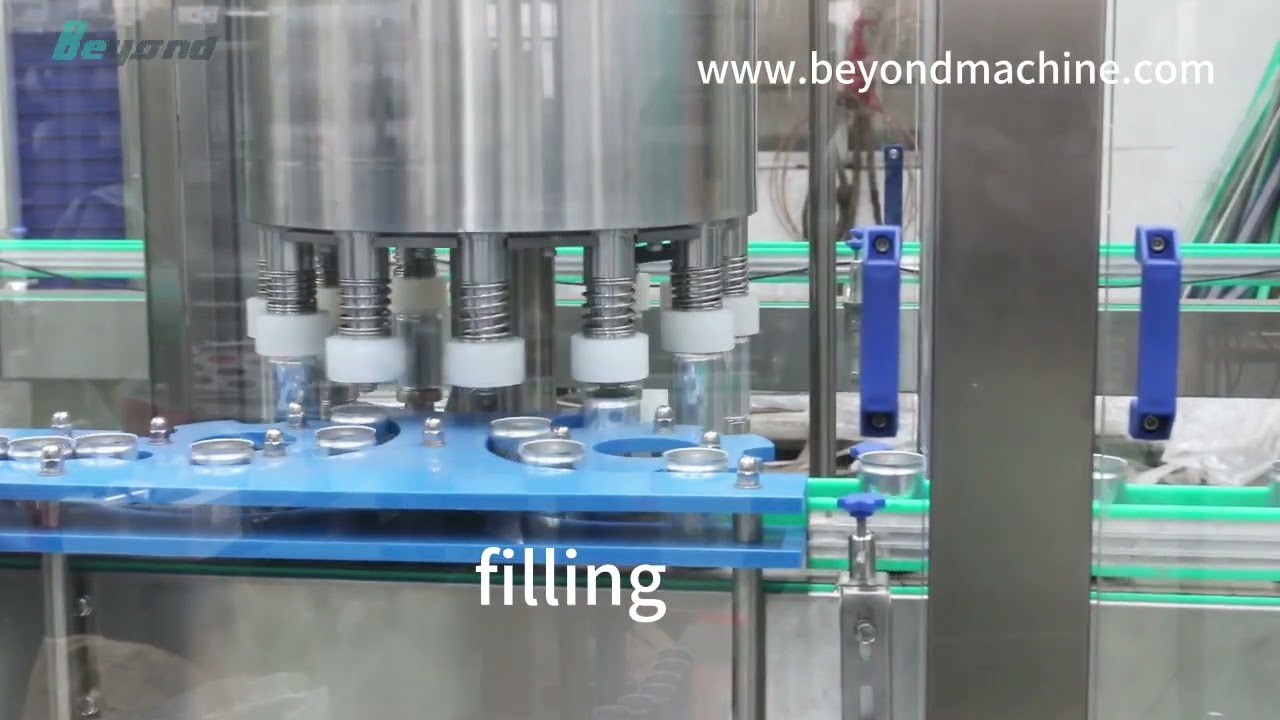

Filling System
-
Utilizes gravity or low-vacuum pressure filling valves, ideal for juice, tea, or functional beverages.
-
Non-contact valves prevent cross-contamination.
-
Equipped with CIP (Clean-in-Place) connectors for full-line sanitation.
-
Fill level accuracy: ±2mm (adjustable via PLC & HMI screen).
-
Optional hot filling (85-90°C) module for pasteurized juices.
Can Sealing (Capping) System
-
Integrated high-precision can seamer with stainless steel rollers.
-
Supports single and double seam types, ensuring air-tight and leak-free seals.
-
Easy to change between standard pull-tab and easy open-end lids.
