Automatic 3-in-1 Glass Bottle Juice Filling Machine

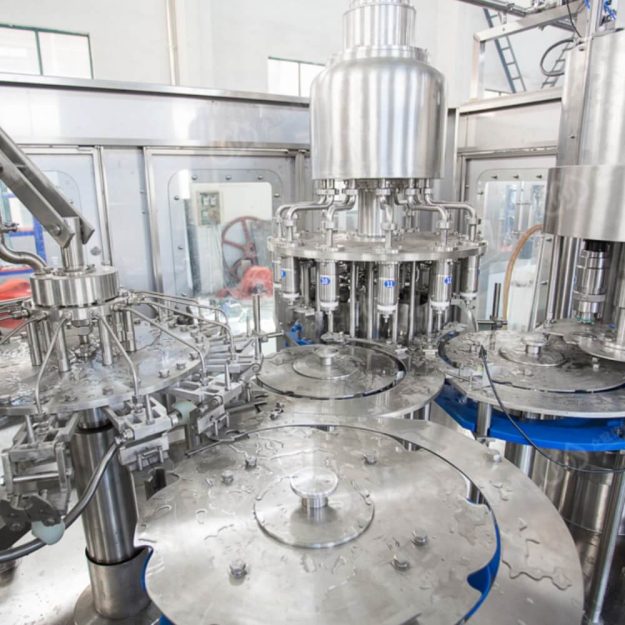

The filling machine adopts the structure of feeding glass bottles by feeding screw, automatically flushes the bottles, and adopts the principle of lifting and lowering the filling valve, so that the whole line conveys the bottles smoothly.

Get A Quote

Specifications

Model: RCGF16-12-6 RCGF18-18-6 RCGF24-24-8 RCGF32-32-10
capacity: 500ml 4000 6000 8000 12000
bottle shape: roud or square
PET bottle: (mm) (Bottle Diameter): φ 50-. φ 110mm (Height): 150-340mm
cap: PE srew cap
filling precision: ≤ ± 5mm
filling pressure: (Mpa) 0.15-0.35 0.15-0.35 0.15-0.35 0.15-0.35
rinsing pressure: (Mpa) 0.2-0.25 0.2-0.25 0.2-0.25 0.2-0.25
filling volume: (L) 0.5 3.5 4 6
overall size: (mm) 2150*1400 *2050 2450*1800 *2350 2780*2200 *2350 3600*2650 *2350
weight: (kg) 2500 3500 4500 5500

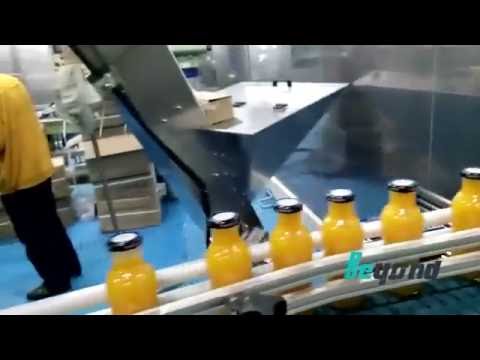

Video

YouTube video

Description

Rinsing part

After the glass bottle have been conveyed into the filling machine, rinsing pliers will carry and fix the bottles to the rinsing nozzles. Then after the rinsing of spraying water from the high pressure rinsing nozzles, the bottles are ready to be sent to the filling part.

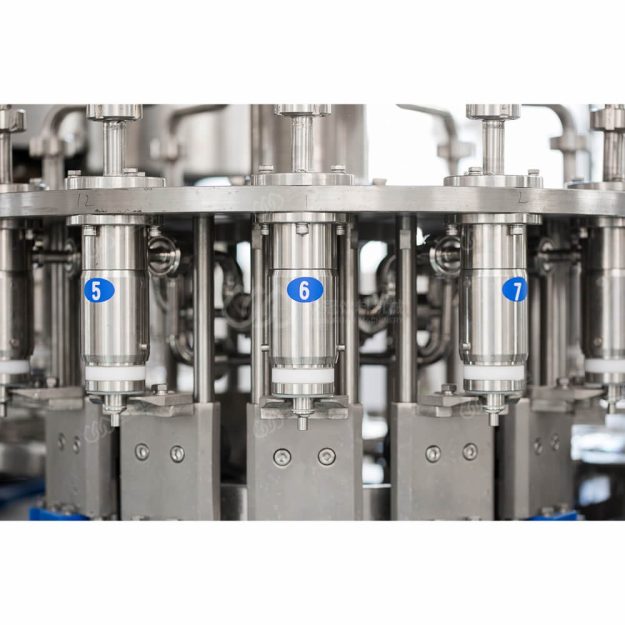

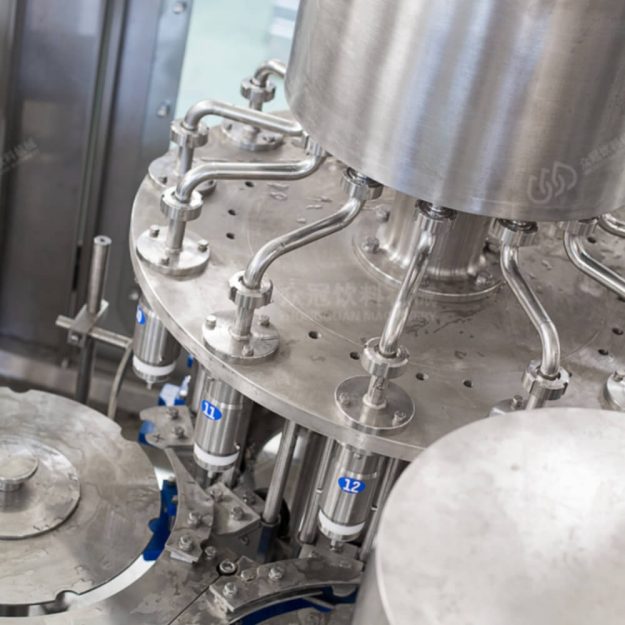

Filling part

After the glass bottle have been rinsed, the rotary transmission plate between the rinsing and filling parts will transmit the bottles to the filling part. Then the bottle will be fixed and fully filled precisely in equal volume of juice by high pressure spraying filling nozzles. And then the filled bottles will be transmitted to the capping part.

Capping Part

The filled bottles are capped by the rotating capping head (it depends on what type of bottle cap it is, for example: a crown cap will need a different capping device like the following picture). Then the finished products will be conveyed out of the filling machine by the product conveying belt.
