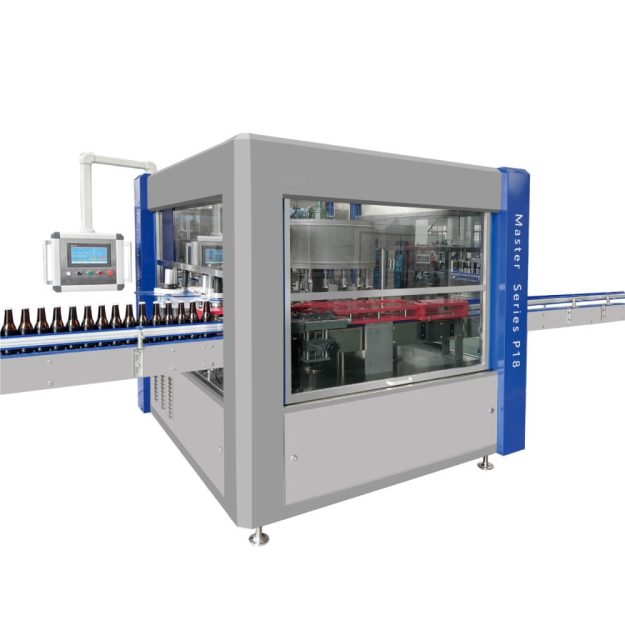

Automatic 3 Side Rotary Sticker Labeling Machine for Bottles – High-Speed Labeling Solution
Our Automatic 3 Side Rotary Sticker Labeling Machine is the perfect solution for labelling bottles and various products with precision and efficiency. Designed to meet the demands of high-speed production lines, this advanced labeling system ensures seamless application of labels on three sides of your products.
Specifications
| No. | Item | Parameter |
|---|---|---|
| 1 | Power supply | Three-phase 380V 50 Hz 8KW |
| 2 | Overall Dimension | 2100*2100*2200mm |
| 3 | The method of speed adjustment | Uninterrupted – adjust rate |
| 4 | Conveyor speed | 60m/min (the speed of the transmission lines can be adjusted according to actual production) |
| 5 | The largest speed of labels feed | Maximum speed of 100 meters labels / min |
| 6 | The largest speed of labeling | 12000 BPH@500ml |
| 7 | Labeling accuracy | ± 1mm |
| 8 | Label Size | Maximum label width: 150mm Maximum length of label: 500mm Maximum diameter of label: 600mm |
| 9 | Paper core diameter | 152 mm |
| 10 | Maximum Roll outer diameter | 480mm |
| 11 | Type of label | Sticker label |
| 12 | Labeling workstation | 18 per cycle |
| 13 | The changing parts of machine | Each mold contains: infeed screw; infeed starwheel; discharge starwheel; bottle tray and pressing unit and so on |
| 14 | Weight | 3300Kg |
Video
Description
Method of Operation

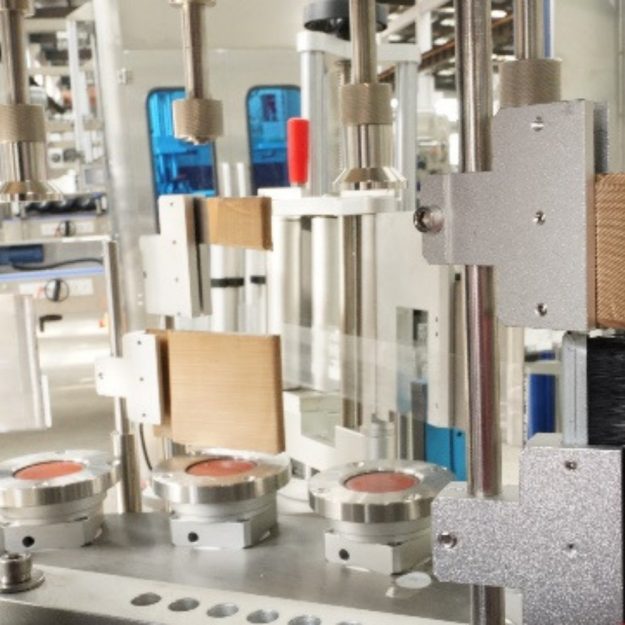

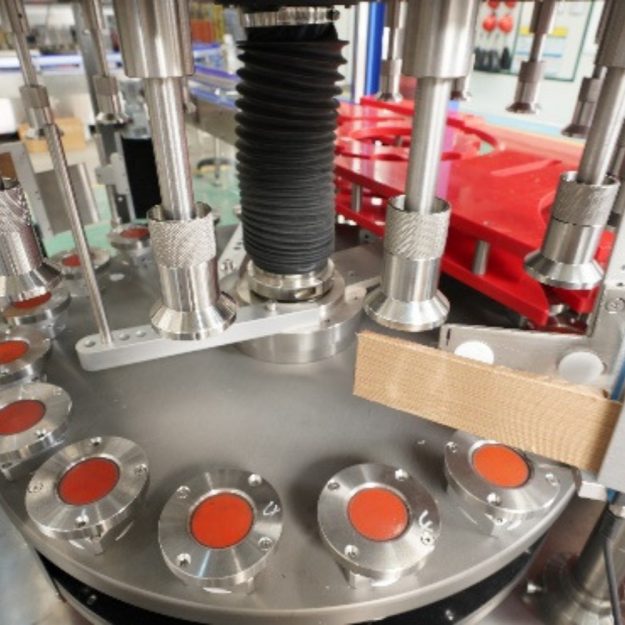

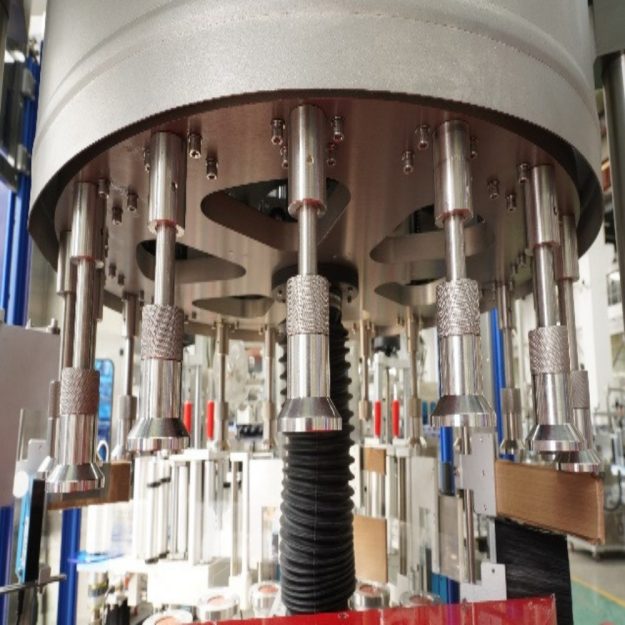

The containers are picked up by the infeed star wheel and transferred to the container table. The container rotation begins when they are positioned between container plates and centering bells.

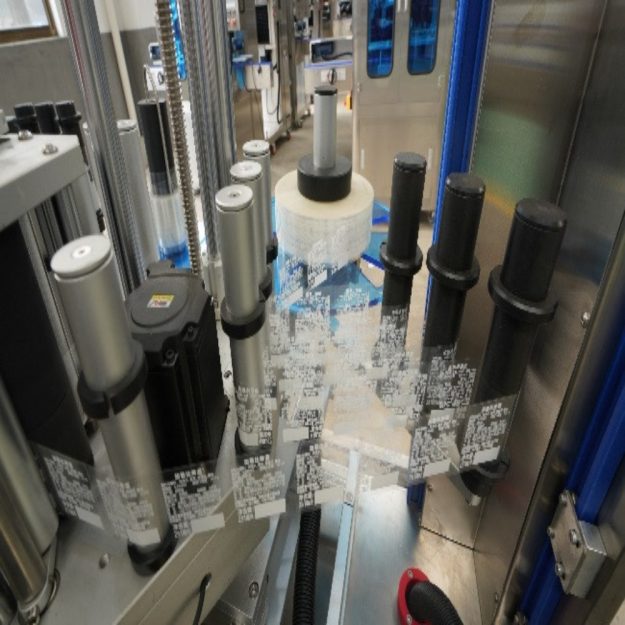

The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed.
In the label feed unit ,the labels are feed while a PLC command and servo-motor provide an exact supply.
The speed of the feed roller is adjusted to the required label length for continuous web tension. A standard threading unit ensures optimal film feed. In the label feed unit, the labels are feed while a PLC command and servo-motor provide an exact supply
As the container is rotated during label transfer, labels are applied tightly.
Process : Infeed bottle → pre-position →label feed →body label→ finish.
Key Features:
- Versatile Labeling: Compatible with a wide range of bottle shapes, including round, square, and rectangular bottles.
- High Speed: Achieves rapid labeling speeds without compromising accuracy, ideal for large-scale operations.
- Advanced Rotary Mechanism: Ensures precise alignment and placement of labels on all three sides.
- User-Friendly Interface: Equipped with a touch-screen control panel for easy operation and customization.
- Durable Build: Manufactured using high-quality materials to withstand rigorous industrial use.
