Automatic 4-in-1 Fruit Juice Filling Machine for Glass Bottles
The Automatic Glass Bottle 4-in-1 Fruit Pulp Juice Filling Machine combines rinsing, hot filling, capping, and bottle sterilization in one compact unit. It is specially designed for thick, high-viscosity juices with pulp, ensuring accurate filling without clogging, consistent sealing, and hygienic processing, making it ideal for juice manufacturers targeting premium markets.
Specifications
| capacity（640ml/330ml bottle）： | 3000-4000BPH 750ml |
| Washing valve heads: | 18 |
| Washing valve heads: | 18 |
| filling valve heads： | 18 |
| filling valve flux： | 140～160ml/s |
| capping heads： | 6 |
| capping force： | 0.6～2.8Nm（adjustable） |
| main motor power： | 7.8KW |
| compressed air consumption： | 0.7Nm3/h（0.6MPa） |
| Weight： | 4000Kg |
| Dimensions | 3600*2200*2200mm |

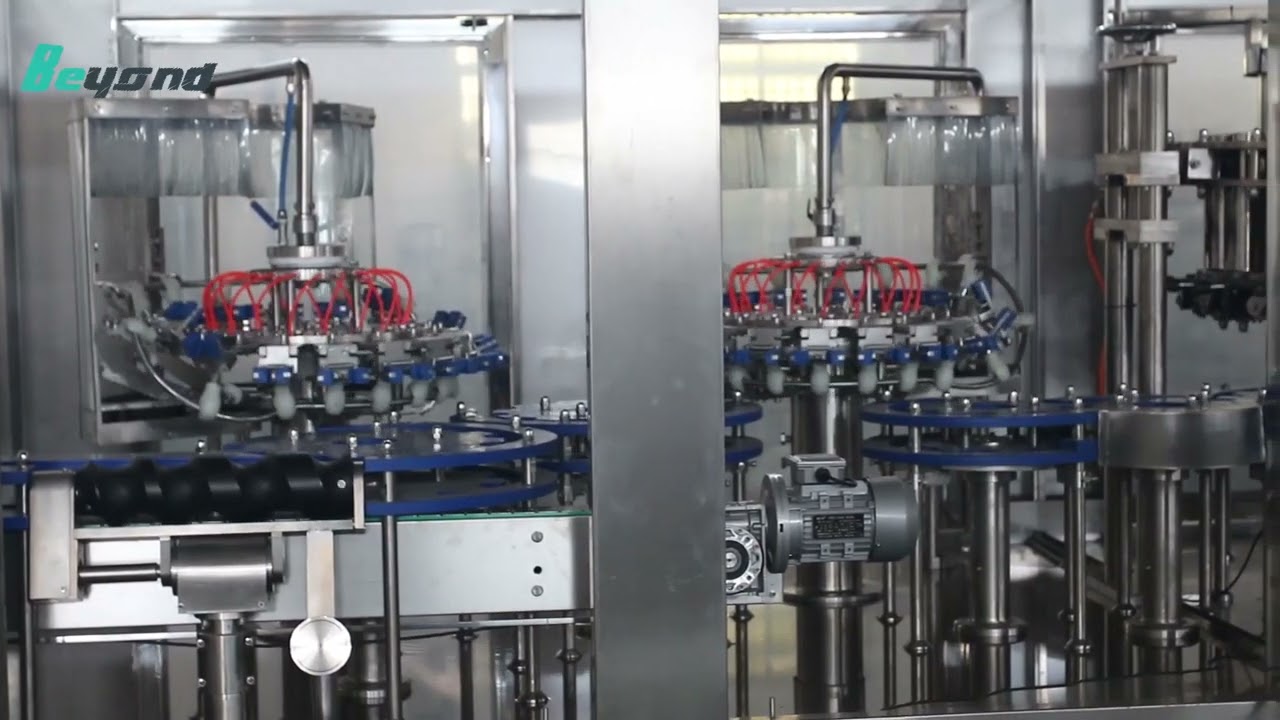

Video
Description
Rinsing System – Ensuring Bottle Hygiene
The rinsing station uses invert grippers and high-pressure sterile water spray to clean bottle interiors. Adjustable nozzles ensure deep, uniform rinsing. The entire unit is enclosed with a stainless steel shield to prevent recontamination.
Fruit Pulp Hot Filling System – Gentle but Precise
This is the heart of the machine. The filling valve is specially designed for viscous liquids with pulp — featuring a widened valve bore and dual-stage filling to prevent pulp blocking. The system maintains a filling temperature of 85–90°C, ensuring pasteurization without damaging fruit texture.
Technical Highlights:
-
Non-contact filling design to avoid microbial contamination
-
Pneumatic-controlled piston-assisted valve for pulp separation
-
Compatible with particles up to 8mm in diameter
-
Minimal oxygen exposure design to reduce oxidation
Cap Sterilizing & Cap Sorting
Before capping, the caps pass through a UV sterilization tunnel and a steam sterilizing jet, offering dual protection. A vibratory sorter feeds caps onto the bottle with high orientation accuracy.
