Automatic 5-Gallon Water Filling Sealing Machine | 3-in-1

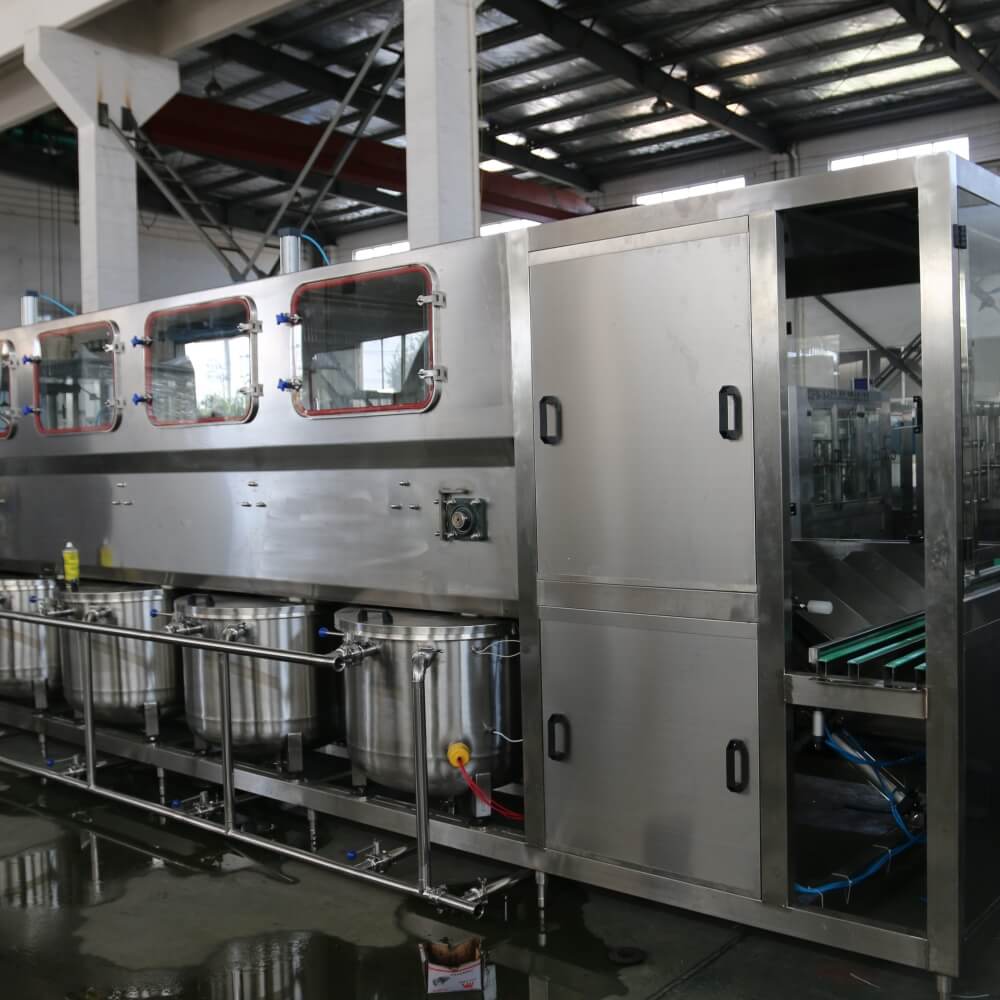

An Automatic 5-Gallon Water Filling Sealing Machine is a high-performance solution that integrates barrel rinsing, water filling, and cap sealing in one compact system. Designed for 18.9L/20L/5-gallon bottles, it ensures hygienic, efficient, and automated water bottling. With stainless steel construction, automatic cap sorting, and PLC control, it’s ideal for medium to large-scale water production lines.
Specifications
| TYPE | QGF-100 | QGF-240 | QGF-300 | QGF-450 | QGF-600 | QGF-900 | QGF-1200 |
| filling heads | 1 | 2 | 3 | 4 | 8 | 8 | 8 |
| barre size(mm) | Φ276×490 | ||||||
| Capacity(b/h) | 60-100 | 100-240 | 250-300 | 400 | 800 | 800 | 800 |
| gas pressure(MPa) | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.6 | 0.6 | 0.6 |
| gas consumption(m3/min) | 0.37 | 0.37 | 0.6 | 0.8 | 1 | 1.5 | 1.8 |
| Motor power kw | 1.38 | 1.75 | 3.8 | 3.8 | 7.5 | 9.75 | 13.5 |
| Rated voltage | 380V/50HZ | ||||||
| Weight (kg) | 680 | 800 | 1500 | 2100 | 3000 | 3500 | 4500 |

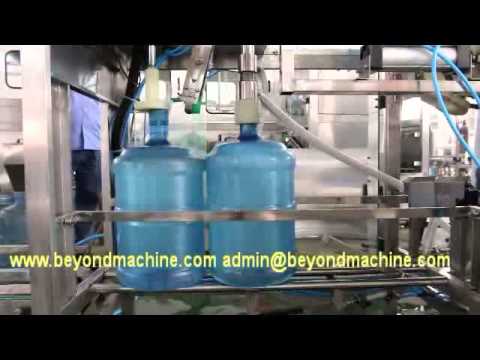

Video
Description
Washing Section – High-Pressure Internal & External Rinse
-
Rotary-type washing with multiple positions for inside and outside cleaning.
-

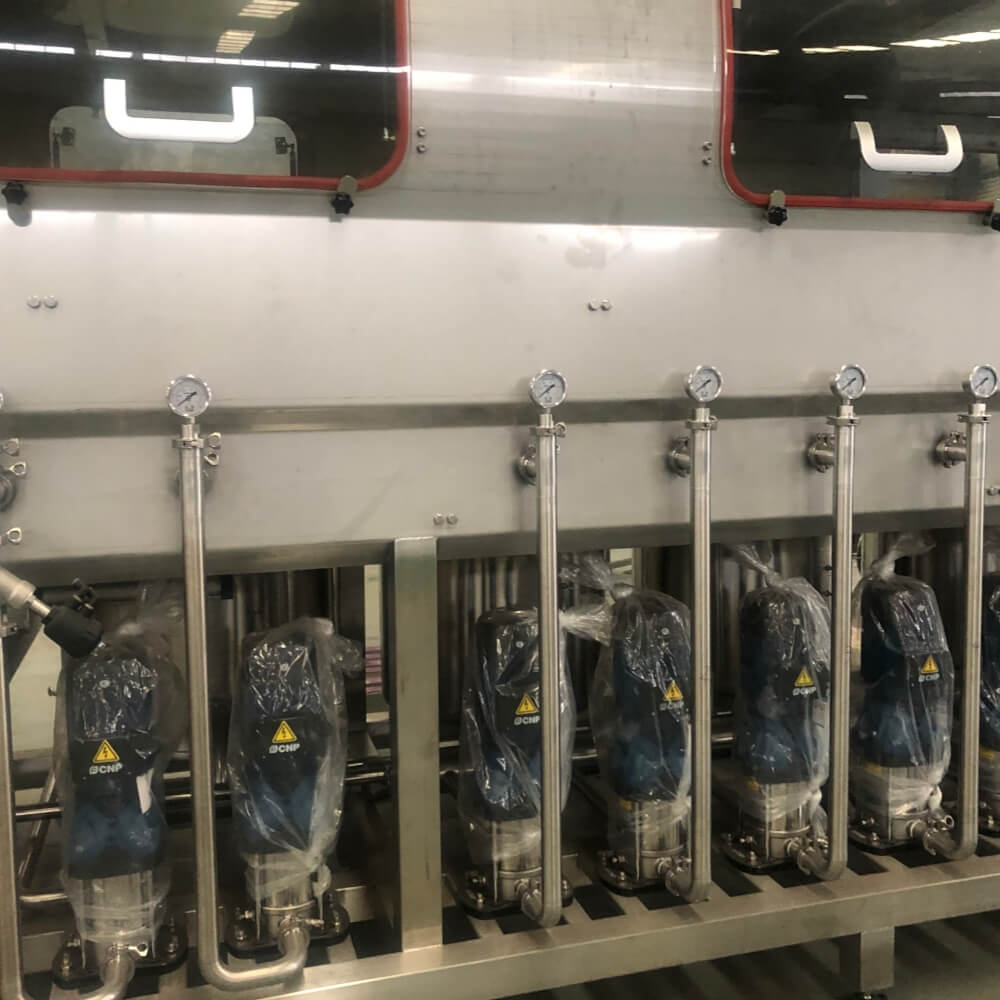

Uses high-pressure pumps and multi-angle spray nozzles to reach every inner surface.
-
Supports hot water, disinfectant, and filtered water rinsing stages with configurable cycle times.
-
Equipped with leak-proof barrel holders and precision timing control.
-
Entire washing area enclosed in SUS304 stainless steel, easy to clean and corrosion-resistant.
Filling Section – Gravity or Time-Controlled Filling Valve
-
Utilizes gravity filling or optional time-flow-controlled valves for high accuracy.
-
Filling valves made of SUS316L stainless steel, ensuring food-grade hygiene.
-
Equipped with drip-proof nozzles and vacuum return system to prevent spillage.
-
Pneumatic or servo-driven valve operation for consistent, synchronized bottle filling.
-
Adjustable filling speed from 200 to 1,200 BPH depending on model and configuration.
Capping Section – Automatic Cap Sorting & Sealing
-
Automatic cap unscrambler feeds sterilized caps to the capping head.
-
Non-contact UV sterilization or ozone sterilization chamber optional.
-
Capping head uses torque control system to avoid over-tightening.
-
Cap pressing adopts pneumatic or motor-driven mechanisms to ensure leak-proof sealing.
-
Anti-rotation cap lock mechanism avoids bottle spin during sealing.
