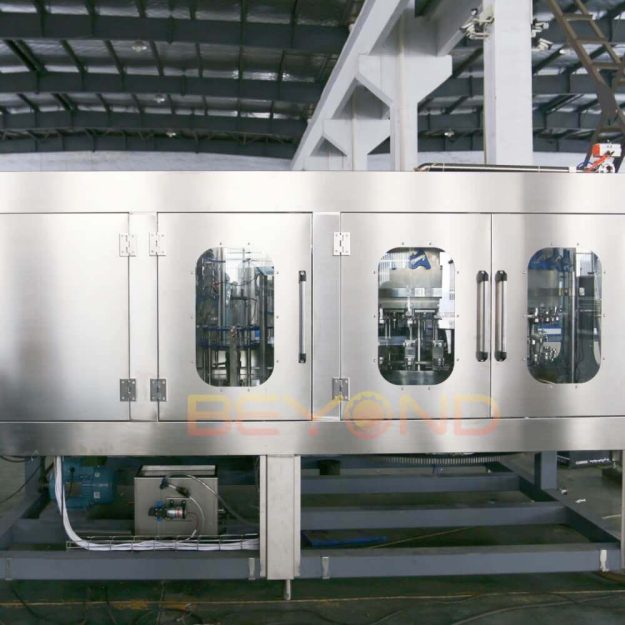

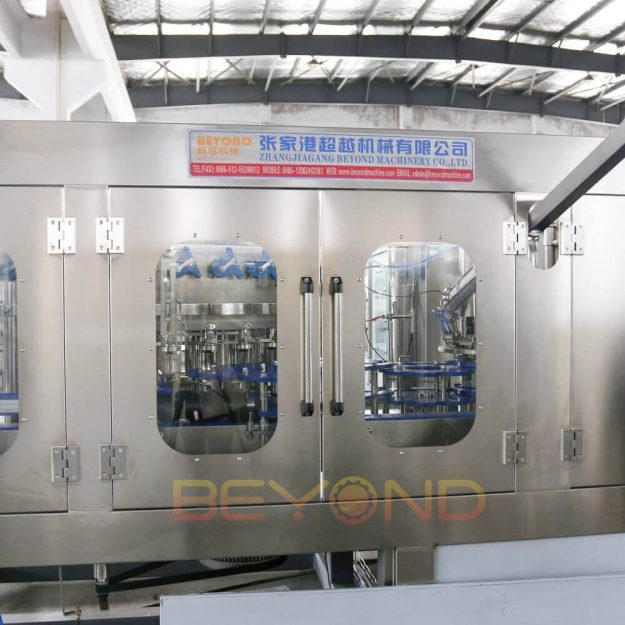

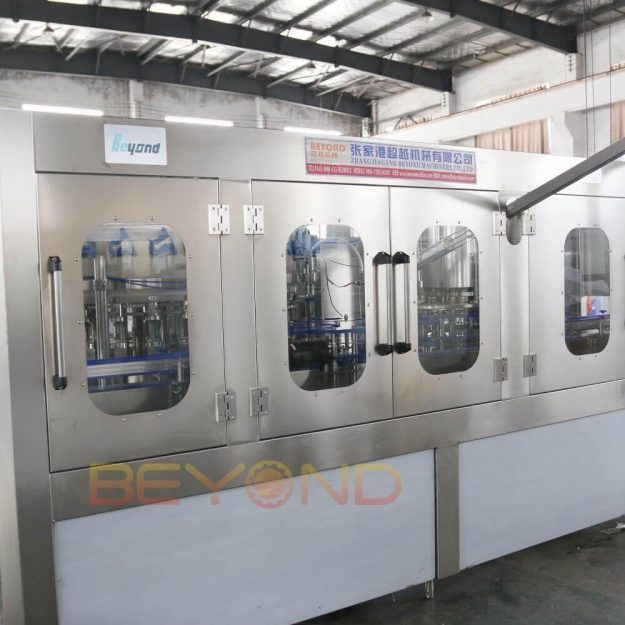

Automatic Carbonated Soft Drink Can Filling Machine
The 32-8 Can Carbonated Drink Filling Machine is specially designed for high-efficiency production of carbonated beverages in cans. Featuring an advanced 32-8 star wheel system, this machine combines filling, and seaming functions into a fully integrated production line, ensuring precision, speed, and reliability.
Specifications
| Model | DGF12/6 | DGF18/6 | DGF24/6 | DGF32/8 |
| Production capacity(500ml)(b/h) | 1000-1200 | 2000-3000 | 4000-5000 | 6000-8000 |
| total power(kw) | 1.5 | 1.5 | 3.75 | 5.6 |
| Dimension (L*W*H)(mm) | 1700x1100x2300 | 1830x1320x2300 | 1950x1580x2500 | 2100x1850x2500 |
| Total weight(kg) | 2000 | 2400 | 3000 | 3500 |
Video
Description

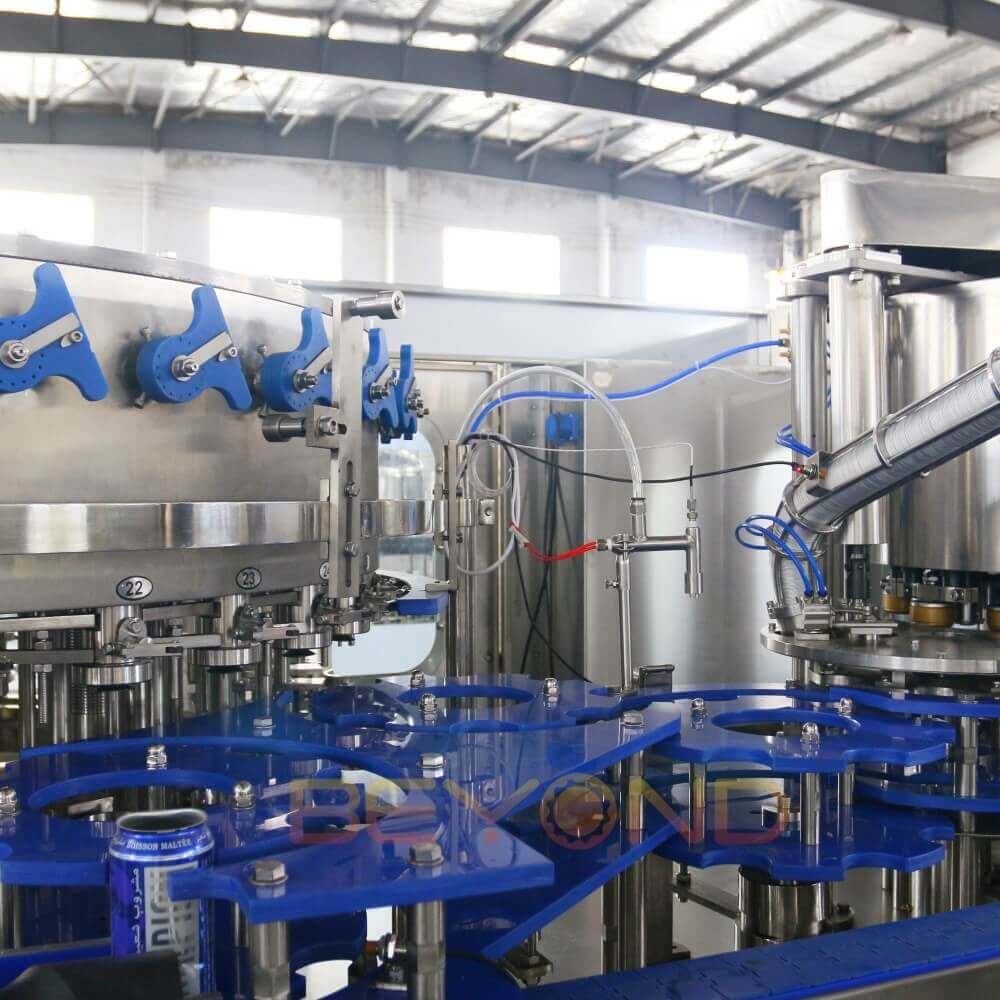

Filling Section:
-
High-precision filling nozzles made of SUS304/SUS316 stainless steel
-
Adjustable filling volume, ensuring consistent liquid level after filling
-
All liquid-contact parts and tanks made of SUS304/SUS316 stainless steel, finely polished, with no dead corners, easy to clean
-
Filling pump made of SUS304/SUS316 stainless steel

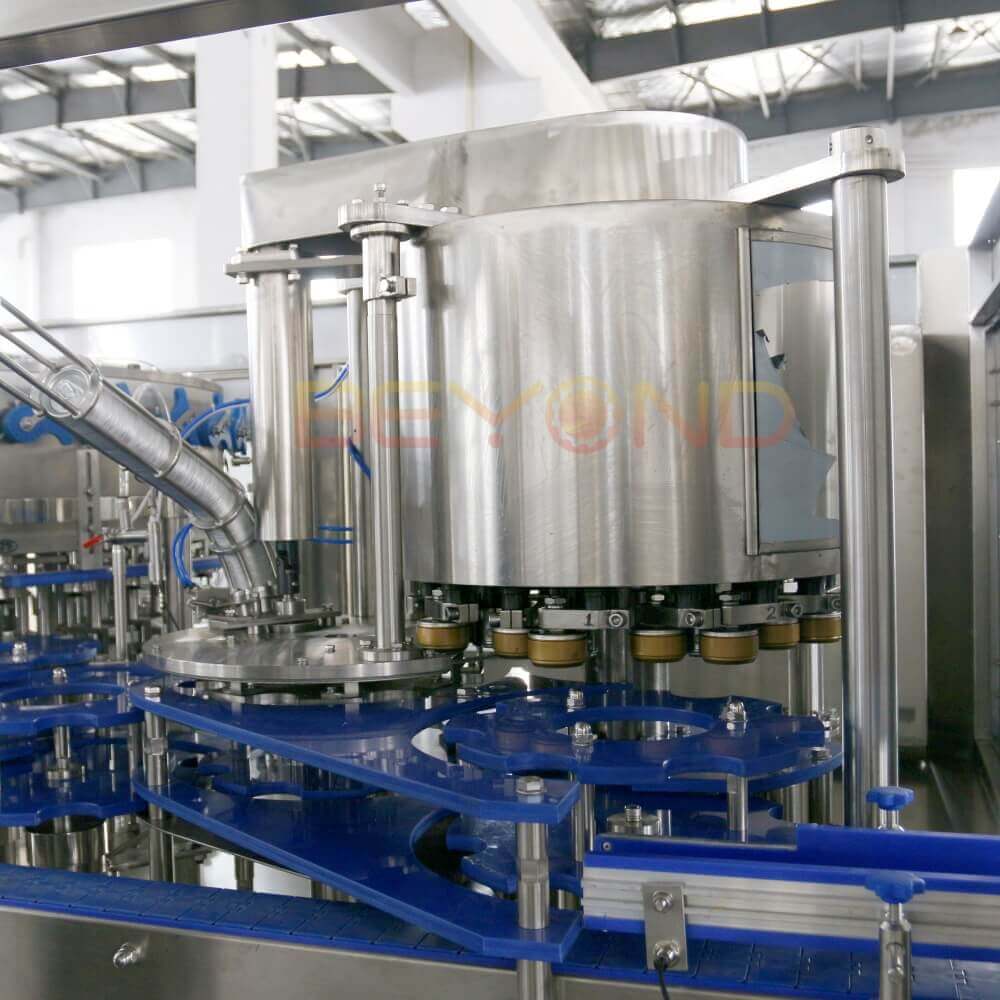

Capping Section:
-
Can placement and capping system with electromagnetic capping heads and discharge function, minimizing bottle collision during capping
-
Entire structure made of SUS304/SUS316 stainless steel
-
Automatic stop when bottles are missing
-
Stable and reliable sealing with a defect rate ≤ 0.2%
