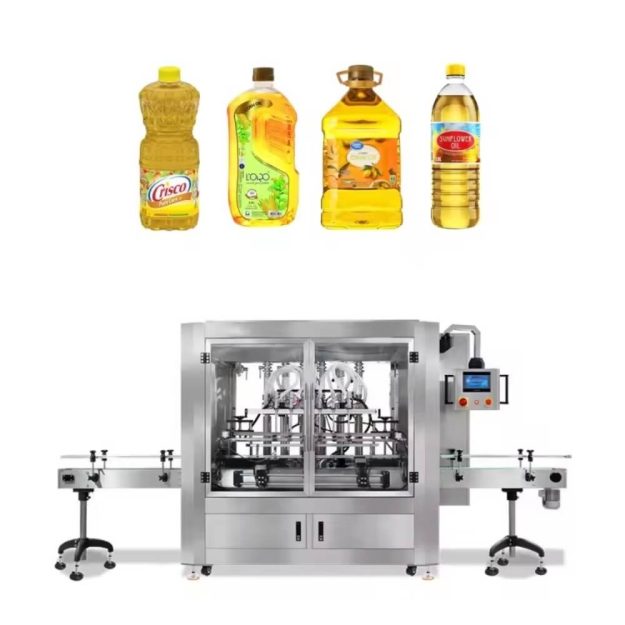

Automatic Flow Meter Type Edible Cooking Sunflower Oil Filling Machine
Our Automatic Flow Meter Type Edible Oil Filling Machine is specifically engineered for edible oils like sunflower oil, soybean oil, and vegetable oil. It adopts flow meter metering technology, suitable for various bottle types (plastic, glass, PET), and supports a wide volume range from 300ml to 5L. This ensures flexible production capability, minimal changeover time, and maximum filling accuracy.
Specifications
| Parameter | Specification |
|---|---|
| Mode | BY4-BY16 |
| Filling Nozzle | 4-16 head flow meter |
| Filling Range | 300-5000ML |
| Filling Capacity | 1000-3600 bottles/hour (Based on 1000ml) |
| Voltage | AC220V/380V 50-60Hz (Special customizable) |
| Air Pressure | 0.5-0.8MPa |
Video
Description
Filling machines can be customized according to production

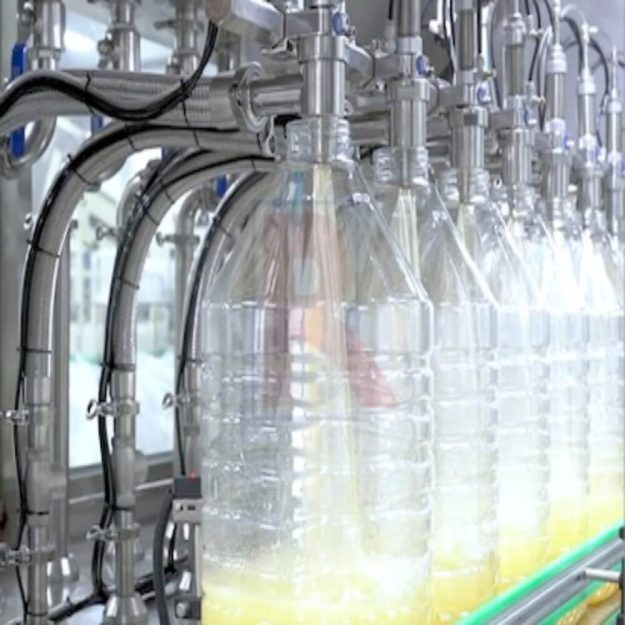

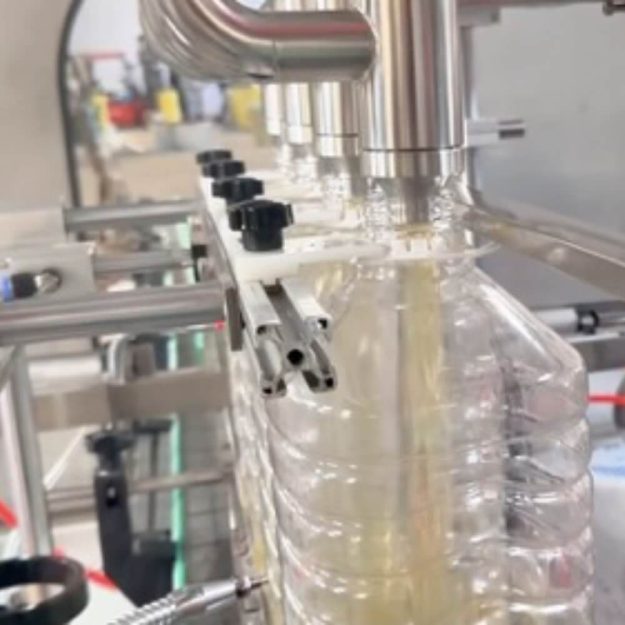

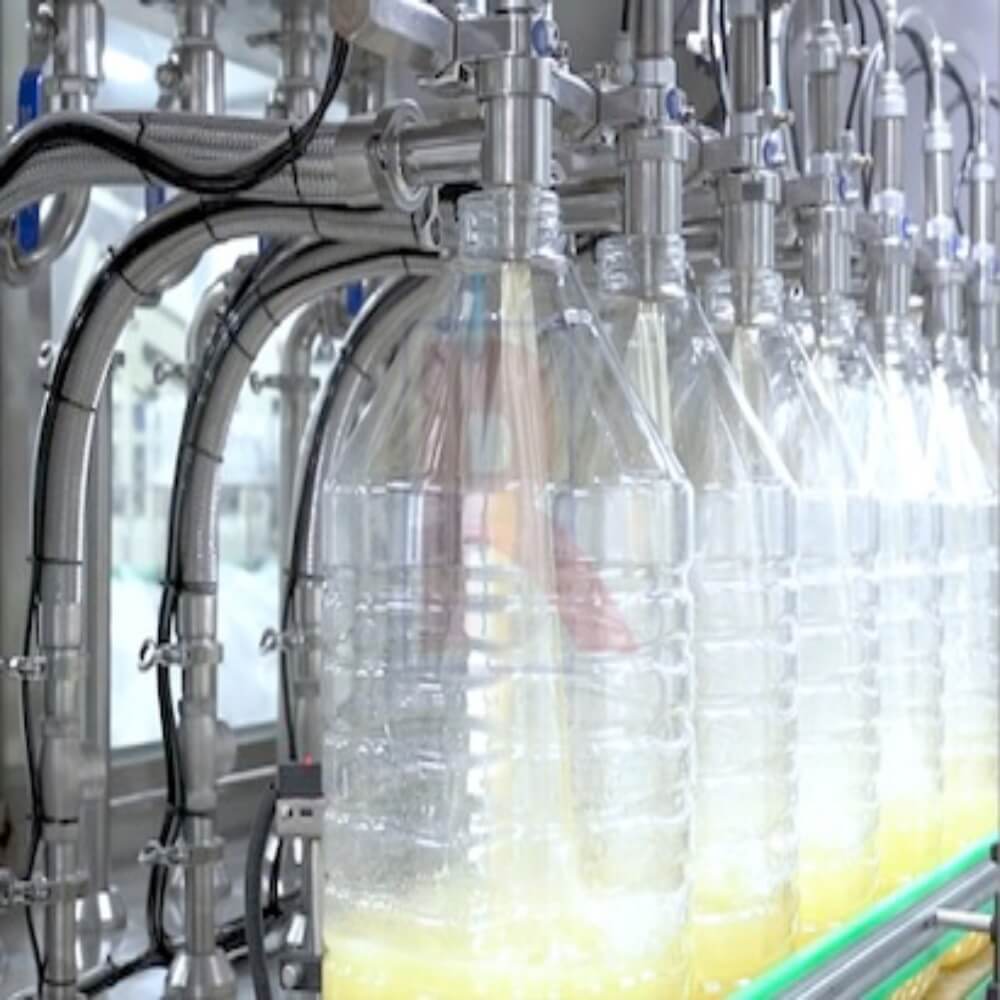

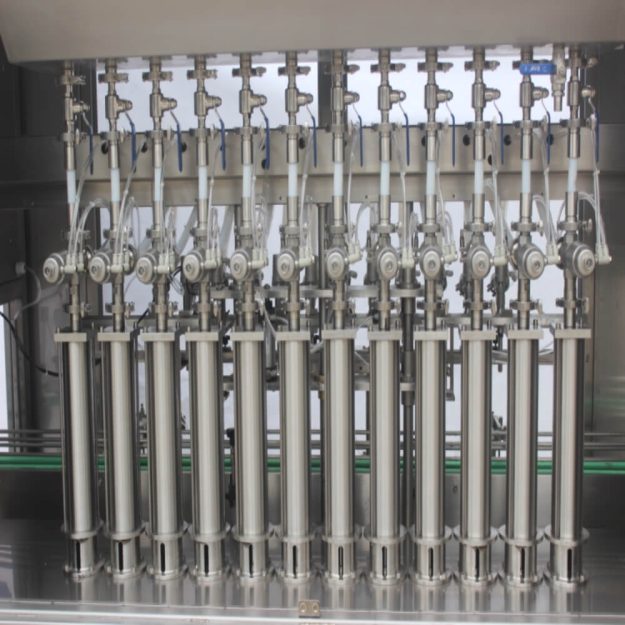

Flowmeter edible oil filling machine
High degree of automation, fast speed, accurate measurement

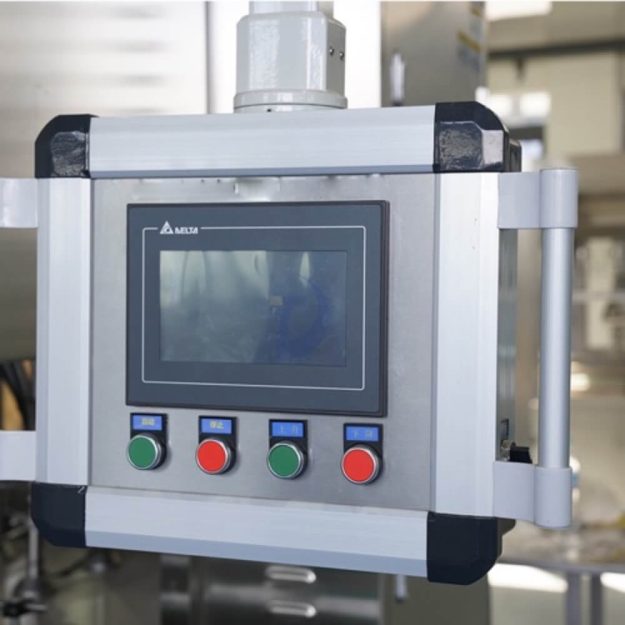

Intelligent filling system
Each filling head is independently controlled, and the filling head can be switched on and off independently, and fine-tuned independently. One-key switching, automatic feedback, and automatic proofreading. When filling materials of different specifications and densities, the parameters can be preset and stored, and one-key switching is used, which makes the operation simpler and more convenient.
Sanitary stainless steel 304 material
The parts in contact with the materials are all made of sanitary stainless steel 304, there is no pollution during the filling process, and the materials are easy to change and clean. The equipment maintenance and cleaning after the filling in the workshop is convenient, which is much better than other filling methods.
Capping System – Fully Automatic Integration
-
Cap sorting + positioning + tightening in one system
-
Compatible with screw caps, press-on caps, or flip-top caps
-
Adjustable torque control for consistent sealing
-
Automatic bottle neck alignment & cap correction
-
Integrated reject system for faulty or missing caps
