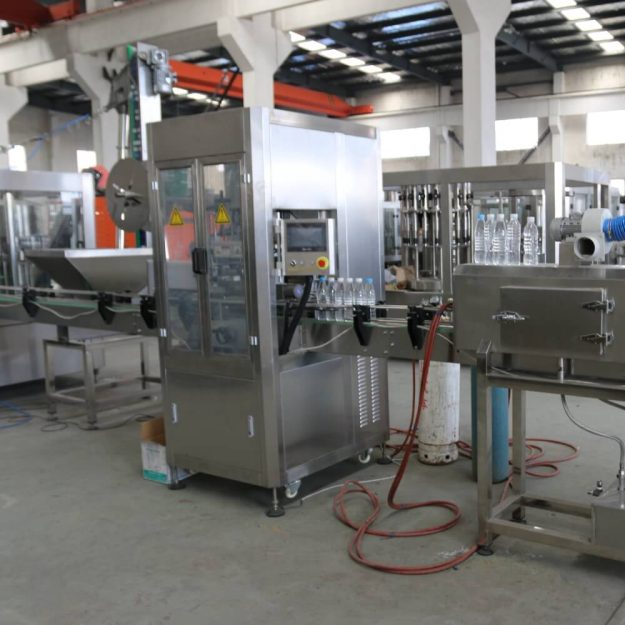

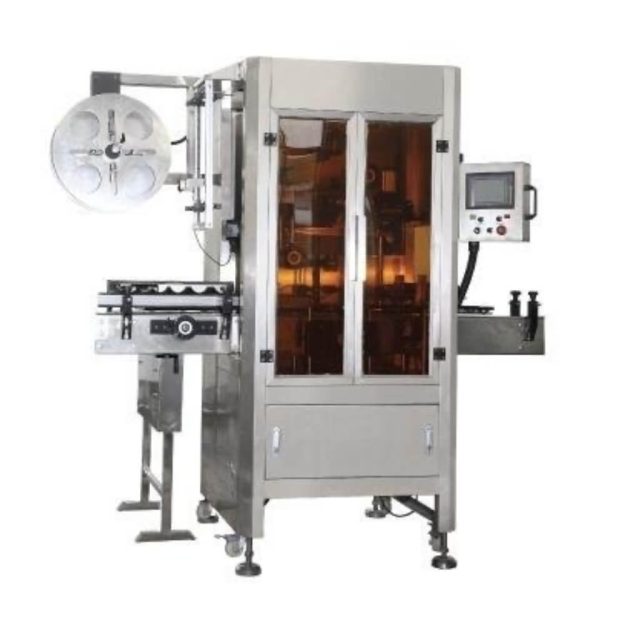

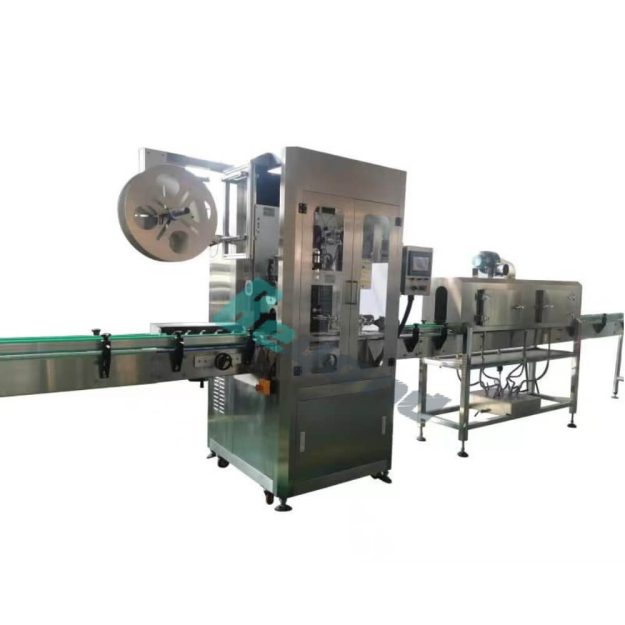

Automatic Sleeve Labeling Machine for Bottles

This labeling machine is mainly for PVC and PET. OPS label belongs to the sleeve labeling machine.
The machine adopts a combination designing of modularization and makes the machine better. The height adjustment adopts motor fluctuation. It is convenient to replace the material. The special cutter head design is good for the cut.

Get A Quote

Specifications

Model SLM-100
Main machine 2500mm L* 1000 mm W * 2200 mm H
Weight approximately 500kgs
Diameter of bottle 25-50mm, 50-95mm,95-125mm, one dimension to be chose from three options, special specification can be made to meet customer’s demands.
Shrink label cut length 25mm ~ 280mm
Label thickness 0.035 mm~0.08 mm(PVC ,PET ,OPS)
Inner core 5”~10”
Machine’s speed 100bpm
Voltage 3 – PHASE 220V/ 380V
Power 15KW(main machine:3KW,power shrink tunnel:12KW)
Steam requirements Saturated vapor pressure of 30 ~ 80kg/Hr use of steam: 0.5 ~ 3MPa (into the device before the decompression from the use of responsible)

Video

YouTube video

Description

Advanced technology: Japan-made motor controls synchronous cutting system to ensure long use life of cutting tool and high precision label. Highly effective production speed: 400 bottles/per minute (standard bottle) It can work with the production line or just work alone.

Label-controlling sensor shelf

Elastic choice: The machine head can be leaned to fit a round bottle, square bottle, elliptic bottle, top of bottle, and body of the bottle. The latest double material-providing system is applied to change material alternately with less time.

Automatic cutting tool positioning system: Search and position automatically by touching the screen.

A unique synchronous cutting base: The cutting base does not need changing within the range of specification. If the specification needs changing, it can be done within two minutes.

Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it. It does not need to be watched when working. An alarm instrument is installed.

Low-consumption maintenance cost: Low-cost abandoned blade for easy change

Long use life of cutting tools: Steel-connecting transmission mechanism, reciprocating cutting, and prolonged use life
