Automatic Water Bottling Machine CGF18-18-6 | 6000BPH Line
A water bottling machine is an automated system that rinses, fills, and caps PET or glass bottles with purified water. The CGF18-18-6 is a rotary 3-in-1 monoblock system integrating bottle washing, filling, and capping, making it ideal for small to medium-scale mineral or purified water production lines. It delivers precise filling, hygienic contact surfaces, and high-speed efficiency of up to 6000 bottles/hour (500ml).
Specifications
| Model | CGF883 | CGF14125 | CGF18186 | CGF24248 | CGF323210 | CGF404010 |
| Heads of washing, filling , sealing | 8-8-3 | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 |
| Production capacity (bottle/hour) | 1000-2000 | 3000-5000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
| Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml | |||||
| Spraying pressure | 2~3 | |||||
| Motor power | Main motor 4.1kw |
Main motor 4.23kw |
Main motor5.03kw | Main motor 6.57kw | Main motor7.5kw | Main motor 8.63kw |
| Power of outer vacuum pump | 0.7 | 0.7 | 1.1 | 1.5 | 2.2 | 2.2 |
| overall dimension (LxWxH) | 2100x1400x2500 | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 | 4600x1800x2650 |
| Weight | 2300 | 2500 | 3500 | 4200 | 5500 | 6800 |

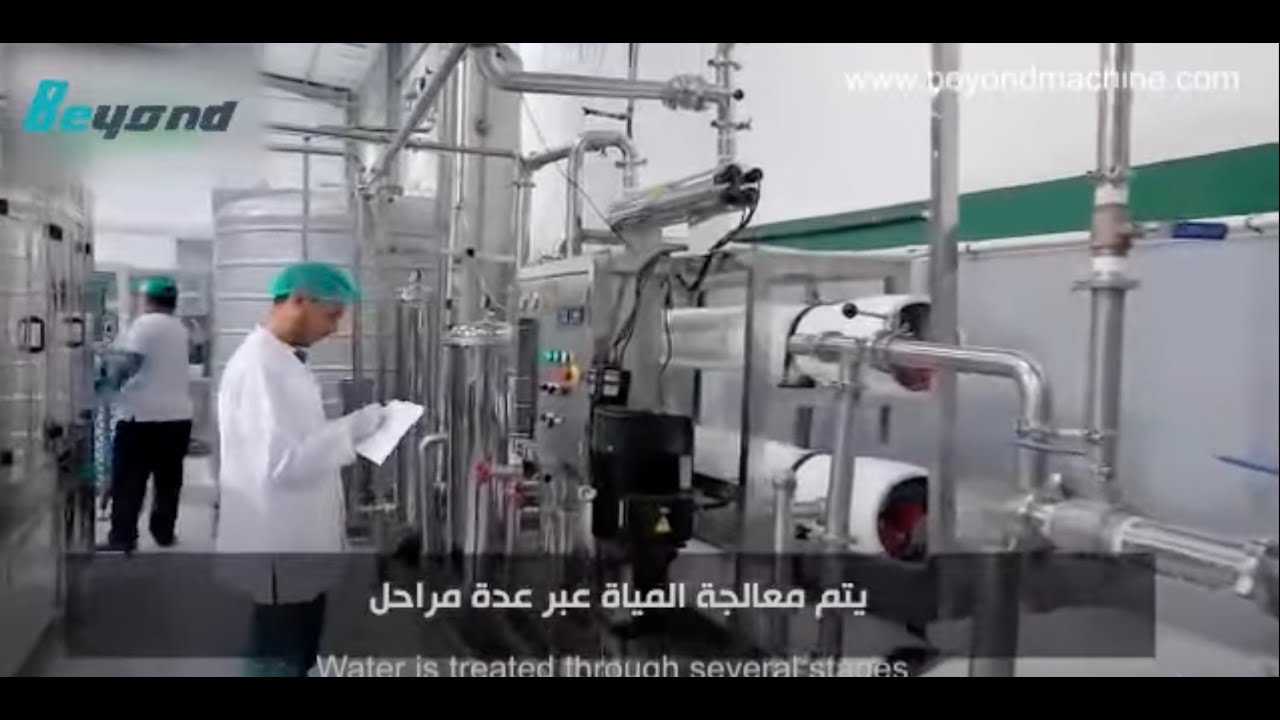

Video
Description
Rinsing Part
1. All 304/316 stainless steel cleaning heads, water-jet water injection design, save water and make it cleaner
2. 304/316 stainless steel holder with plastic pad to ensure minimal collision of bottles during cleaning
3. 304/316 stainless steel cleaning pump makes the machine more durable
Filling Part
1. 304/316 stainless steel high-precision filling nozzle
2. The filling volume can be fine-tuned, and the liquid level will be the same after filling.
3. All 304/316 stainless steel contact parts and liquid tanks, finely polished, no dead corners, easy to clean
4.304/316 stainless steel filling pump
Capping part
1. Placement and capping system, electromagnetic capping head, with unloading function to ensure minimal collision of bottles during capping process
2. All 304/316 stainless steel construction
3. No bottle or cap
4. Stop automatically when bottle is missing
