Beer Can Filling Machine

It is applicable for pressure fillers and cappers of carbonated drinks in the beer and drink industry. It is a pop canned beer in the digestion and absorption of advanced foreign and domestic sealing machines on the basis of independent development of the can filling, and sealing unit. Filling and sealing is the overall designed, power system by filling the sealing system to ensure both absolute synchronization and coordination. It adopts advanced machines, electrical equipment, and pneumatic control technology. It has the characteristics of filling reposefully, high speed, liquid level control, capping reliably, frequency conversion timing, and less material loss. It can equip a long-distance control system according to the customers’ request. It is the preferred equipment for the medium beer and beverage plant.
Major electrical components used in Japan Mitsubishi PLC, inverter and proximity switches, Siemens of Germany’s Simulation output, and solenoid valves of South Korea, it is all designed to the most reasonable configurations by the experienced electrical engineers of our company. The whole production speed can be in accordance with the requirements in the touch screen set, all common automatic fault alarms, and the corresponding location of the fault reason, according to the severity of the failure, PLC automatically determines whether the host can continue to run or stop.

Get A Quote

Specifications

Model YDGF12-1 YDGF18-6
Heads of filling, sealing 12-1 18-6
Production capacity(can/hour) 1500-3000 5000-6000
Can type(mm) 200/202/206/209
Filling pressure(Mpa) isostatic pressure
Max.filling temp(℃) 0-5
Total Power(KW) 2.2 4
Overall dimension(L×W×H)(mm) 2200×1600×2200 2500×2000×2350
Weight(kg) 2650 4200

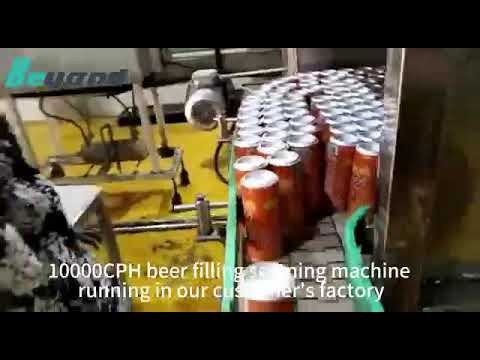

Video

YouTube video

Description

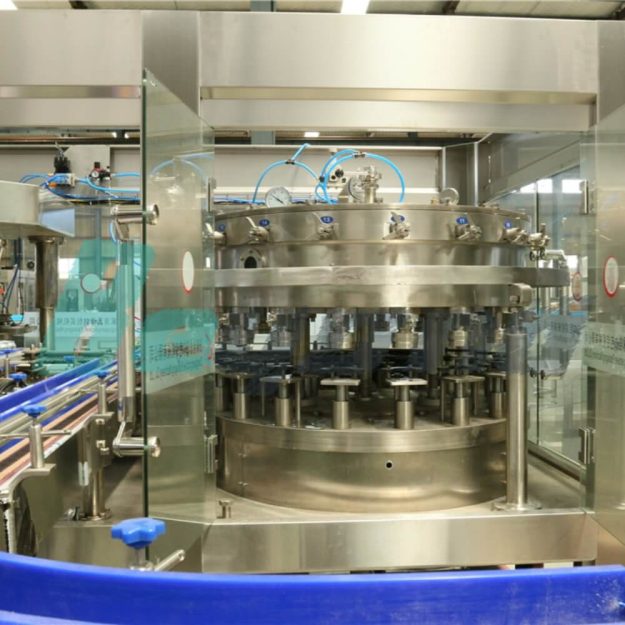

Filling Part

The filling system adopts the isobaric filling principle. The liquid material tank is from stainless steel, inside or outside mirror polished. It is equipped with a level controller. These valves are suitable for filling the beer.

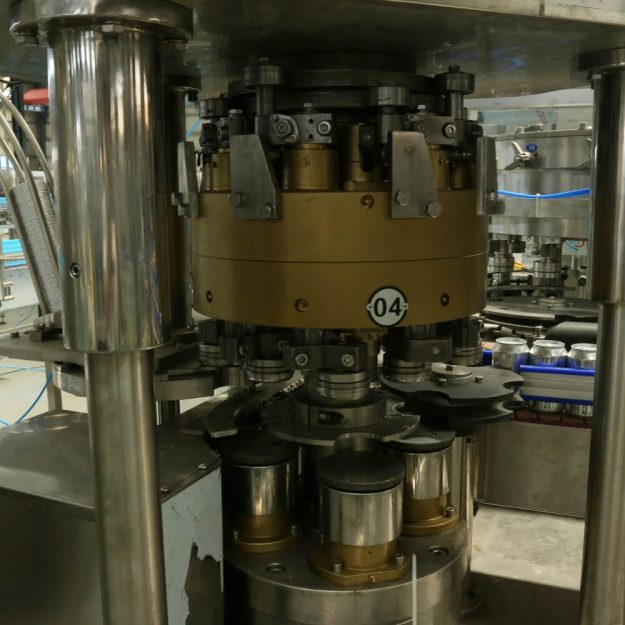

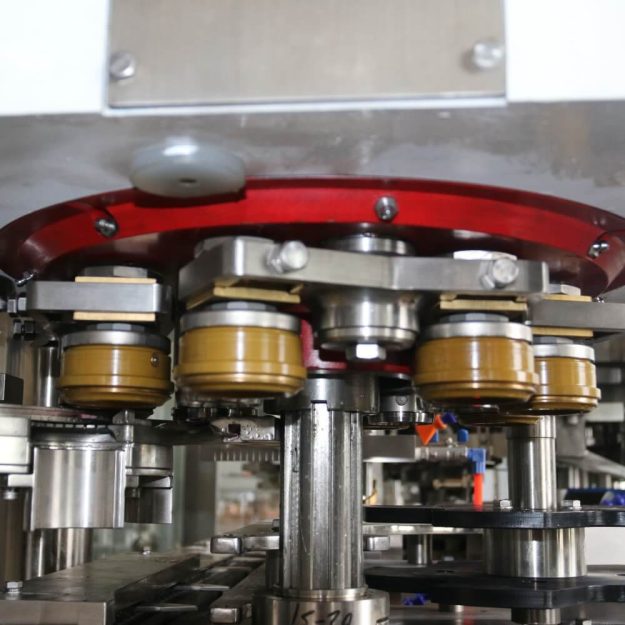

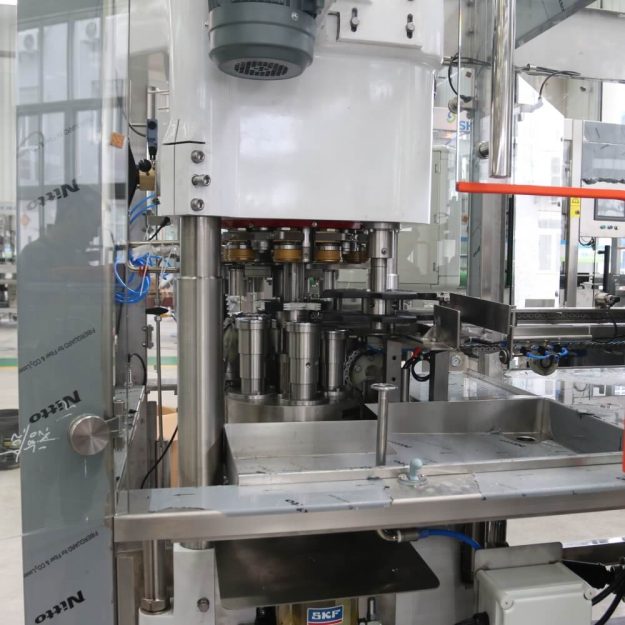

Seaming Part

1. There is a buffering system on the machine so that there is no can be broken in the process;
2. The can mouth is positioned automatically and the sealing mould shares good power distribution guaranteeing better sealing quality;
3. The sealing head with enough pressure so that there is no leaking after sealing;
4. Stable performance, low noise, less energy consumption, and high working efficiency as well;
