Efficient Glass Bottle Water Filling Machine | High Output
An efficient glass bottle water filling machine is designed for high-volume production, offering integrated rinsing, filling, and capping functions in one compact unit. Ideal for mineral or purified water plants, these machines use precision-engineered filling valves and hygienic components to ensure speed, accuracy, and contamination-free operation. Designed for 2000 to 24000 BPH capacities, they support quick changeovers, easy maintenance, and excellent bottle integrity.
Specifications
| Model | CGF8/8/1 | CGF14/12/5 | CGF18/18/6 | CGF24/24/8 | CGF32/32/10 | CGF48/48/12 |
| Production Capacity:500ml(B/h) | 1000 | 5000 | 8000 | 10000 | 14000 | 20000 |
| Suitable Bottle Standard:(mm) | 150-300 | 150-340 | 150-340 | 150-340 | 150-340 | 150-340 |
| Suitable Cap Standard:(mm) | φ50-φ110 | |||||
| Filling Pressure:(Mpa) | 0.2-0.3 | |||||
| Installed Capacity:(L) | 3.13 | 3.84 | 3.84 | 3.84 | 5.6 | 7.3 |
| Filling Temperature: | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature | Room Temperature |
| Overall Size:L×W×H(mm) | 2400×1670 ×2350 |
2470×1970 ×2350 |
2670×2160 ×2350 |
2865×2170 ×2350 |
3700×2570 ×2350 |
4500×3400 ×2400 |
| Total Weight:(kg) | 2500 | 3000 | 3500 | 4000 | 5000 | 6500 |

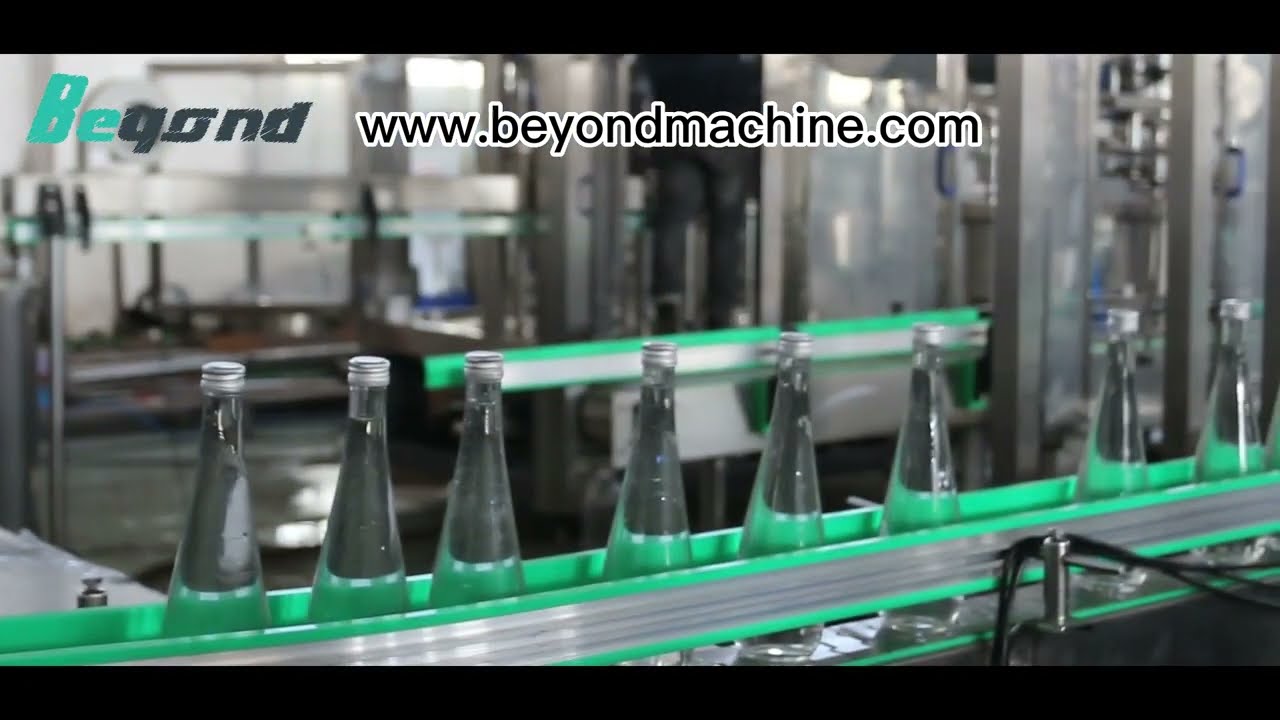

Video
Description
Rinsing System
-
Inverted bottle neck holding system prevents cross-contamination.
-
Multi-stage rinsing: recycled water followed by sterile or ozone-treated water.
-
Grippers use anti-scratch, food-grade material.
-
Full CIP capability with auto-cleaning spray nozzles.
Filling System
-
Gravity filling or electronic flow meter control for high precision.
-
Special Design Tip: For high clarity water, gravity filling is preferred for simplicity and lower maintenance, but for carbonated products, counter pressure filling is essential.
-
Filling valves made from 316L stainless steel with mirror-polish interiors to prevent microbial growth.
-
Anti-drip nozzles and controlled liquid levels ensure consistent fills.
Capping System
-
Crown cap, aluminum ROPP, or plastic screw cap – interchangeable heads available.
-
Cap sorting with electromagnetic cap elevator or vibration feeder for high speed.
-
Torque control and no-bottle-no-cap system for quality assurance.
