Fully Automatic Inclined Cap Capping Machine with Servo Device for Skewed Nozzle Caps – Ideal for Detergent Bottles
The fully automatic inclined cap capping machine is specially designed for precise and efficient capping of cleaning product bottles. Equipped with a servo capping device for skewed nozzle caps, it ensures consistent torque, prevents leakage, and protects the nozzle’s shape. Perfect for detergent, disinfectant, and household cleaner production lines, this machine combines speed, accuracy, and easy operation to meet modern industrial bottling standards.
Specifications
| Technical Parameter | Specification |
|---|---|
| Capping Station | Single Head |
| Production Speed | ≥2000 bottles/hour |
| Capping Method | Inclined Four-Wheel Chuck |
| Bottle Conveying | Clamping with Bottle Straightening Guide |
| Dimensions (L*W*H) | 1000*1000*1600 mm |
| Main Motor Power | 1 KW; 220/380V; 50/60HZ |
| Main Machine Weight | Approx. 200 kg |
| Air Supply | 0.6-0.8 Mpa |

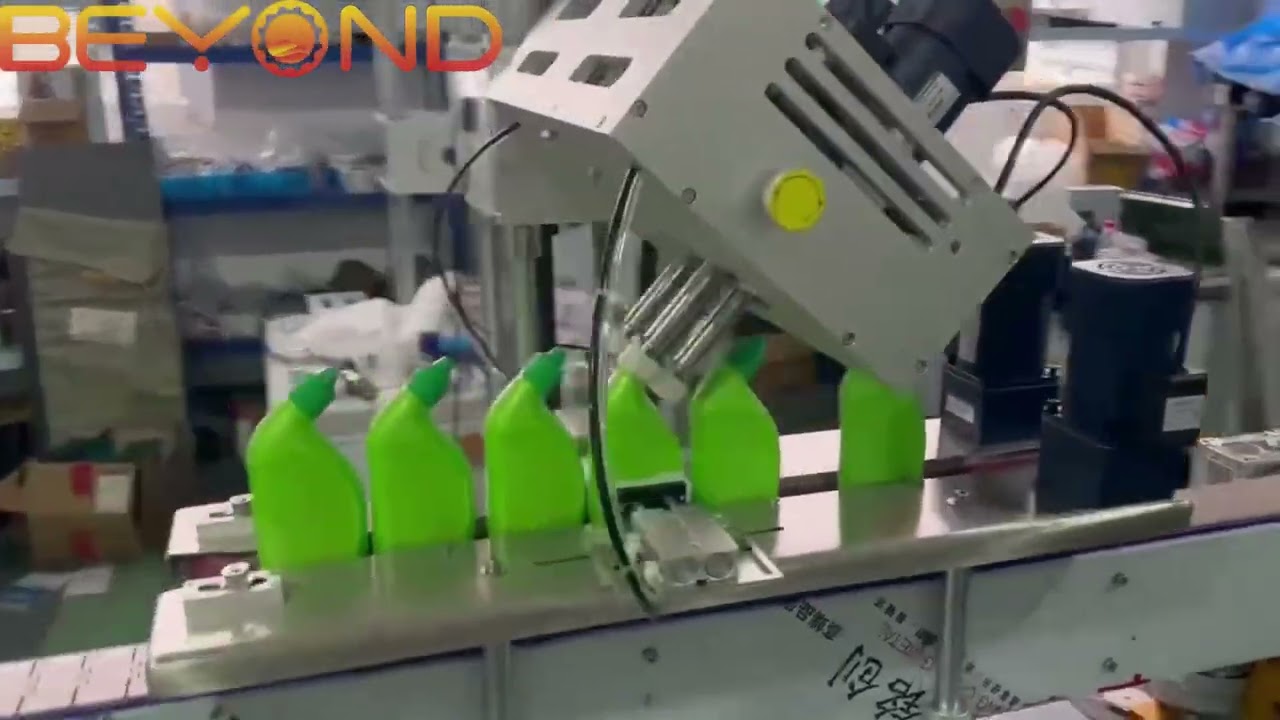

Video
Description

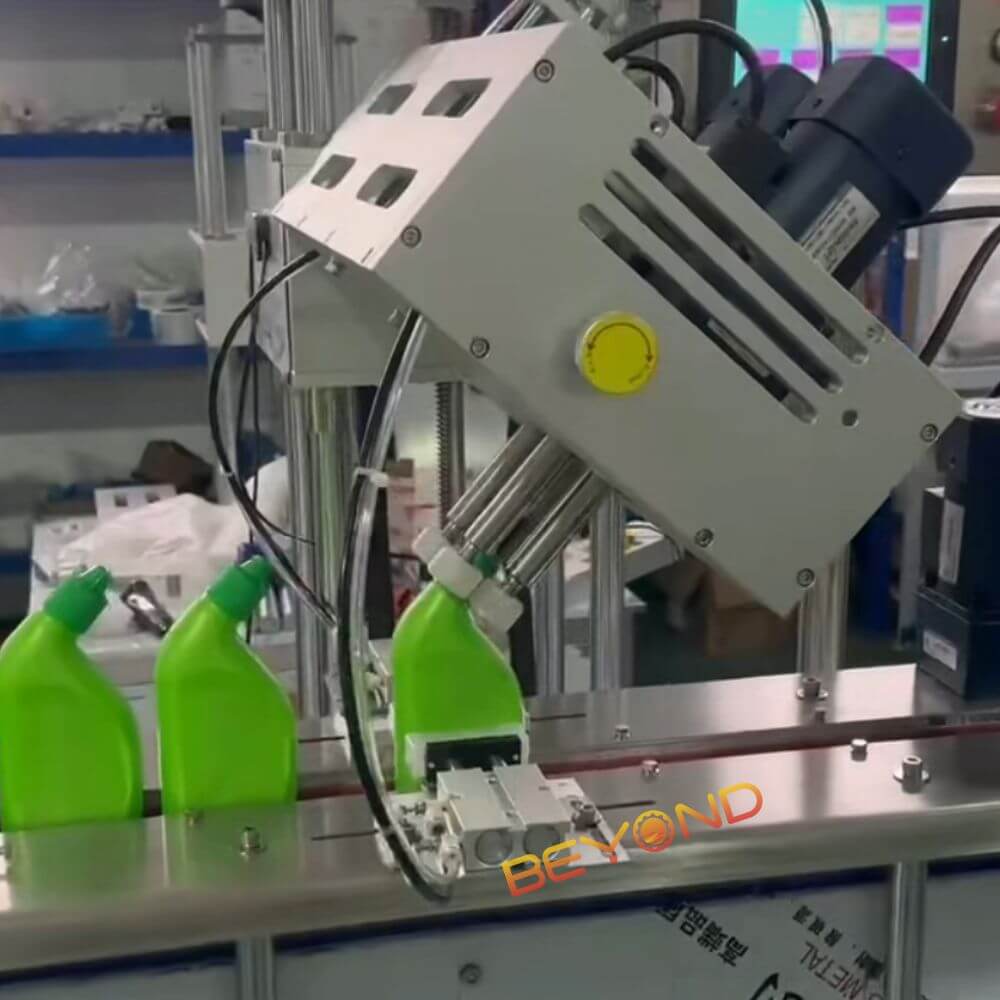

This machine features a high-precision servo motor system that automatically adjusts to different cap sizes and bottle shapes, making it suitable for a wide range of cleaning product bottles, including skewed nozzle designs. The standardized main mold allows for quick specification changes, reducing downtime during production. Constructed from SUS304 stainless steel, the equipment is highly resistant to corrosion and easy to clean, ensuring hygiene in detergent and chemical bottling processes. Its advanced touch-screen control system provides real-time monitoring of torque, capping speed, and operational status, enabling operators to maintain consistent quality with minimal manual intervention. Designed for continuous high-speed production, it integrates seamlessly into existing bottling lines, optimizing efficiency and minimizing maintenance costs.
