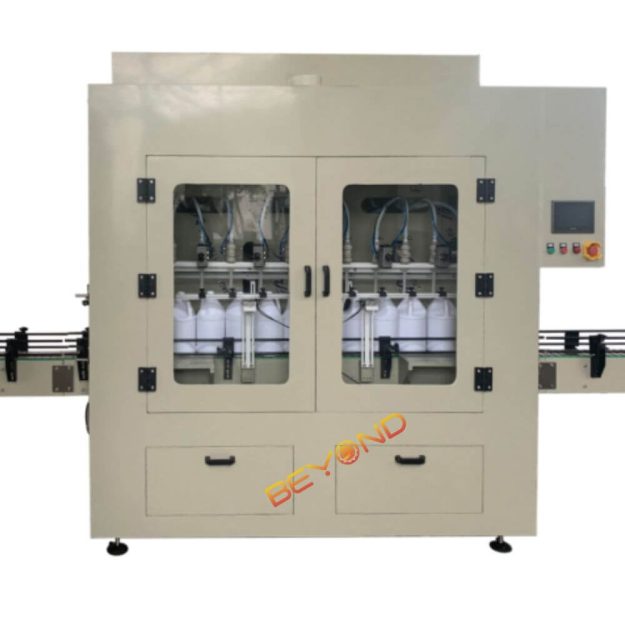

Fully Automatic Toilet Cleaner Oblique Mouth Anti-Corrosion Filling Machine
The fully automatic toilet cleaner oblique mouth anti-corrosion filling machine is a specialized liquid filling equipment designed for packaging toilet cleaner and other corrosive liquids into angled-mouth plastic bottles. It features an anti-corrosion filling system, high precision nozzles, and fully automated operation, ensuring safe, efficient, and leak-free production. This machine is ideal for manufacturers seeking reliable solutions for handling strong acids, alkalis, or chemical cleaning products.
Specifications
| Parameter | Specification |
|---|---|
| Number of filling heads | 6 heads |
| Production speed | With a filling volume of 500ml and water as the medium, the production speed is ≤ 24-30 bottles/minute |
| Filling capacity | 500ml-1000ml depending on the customer’s product volume |
| Filling method | Beveled nozzle inserts into the bottle for filling |
| Power supply | 220V/380V |
| Total power | 1.0Kw |
| Applicable bottles | Ф40mm-Ф100mm depending on the customer’s product volume |
| Metering error | ≤±1‰ |
| Working pressure | 0.55Mpa-0.65Mpa |
| Dimensions | 1500mm × 900mm × 2300mm |
| Machine weight | 700 kg |
Video
Description
Designed for handling corrosive liquids safely, the fully automatic toilet cleaner oblique mouth anti-corrosion filling machine combines precision engineering with robust anti-corrosion materials. Its advanced filling system adapts to angled-mouth bottles, providing accurate volume control while preventing leaks or spills. With automated bottle feeding, filling, and discharge, the machine improves production speed and reduces manual labor, making it ideal for toilet cleaner and chemical liquid manufacturers seeking efficient, reliable, and safe bottling solutions.
-

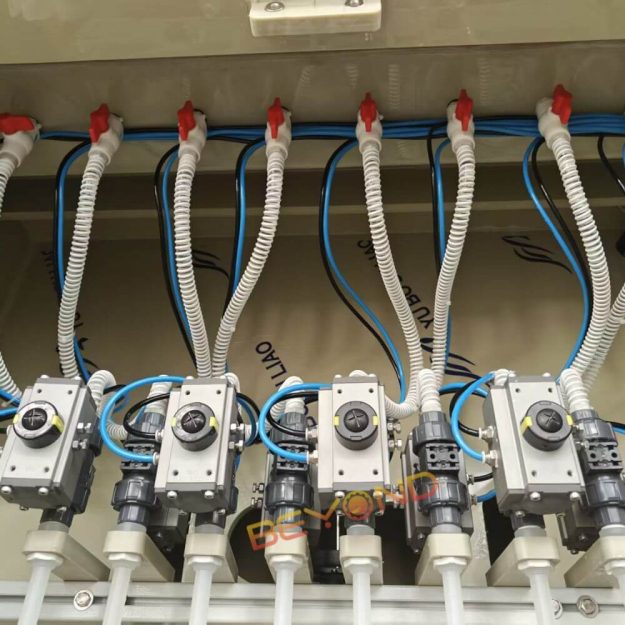

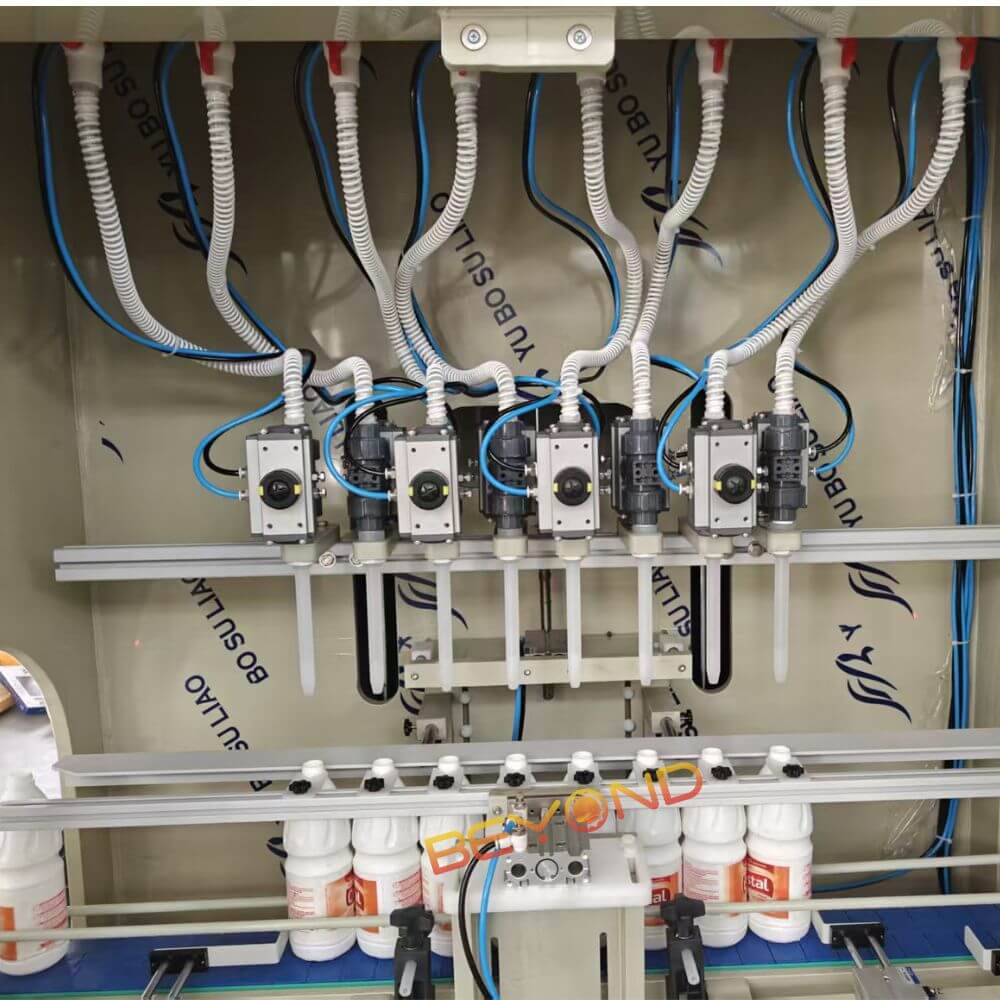

Oblique Mouth Filling Nozzle: Specially designed angled nozzles prevent spillage and ensure precise filling for irregular bottle openings.
-
Anti-Corrosion Construction: All contact parts are made of high-quality stainless steel and corrosion-resistant materials suitable for strong acids and alkalis.
-
Fully Automatic Operation: Automatic bottle feeding, filling, and discharge, reducing manual labor and improving production efficiency.
-
Adjustable Filling Volume: Supports different bottle sizes and filling volumes with high precision (±1–2%).
-
Leak-Free Design: Advanced sealing and drip-prevention system ensures clean production environment.
-
Easy Maintenance: Modular design allows quick replacement of worn parts, cleaning, and inspection.
-
High Production Efficiency: Capable of filling hundreds to thousands of bottles per hour depending on configuration.
-
Suitable for toilet cleaners, chemical cleaners, acidic and alkaline liquids.
-
Ideal for medium and large-scale production.
-
Ensures operator safety by reducing direct contact with corrosive chemicals.
-
Improves production efficiency and accuracy, minimizing waste and downtime.
