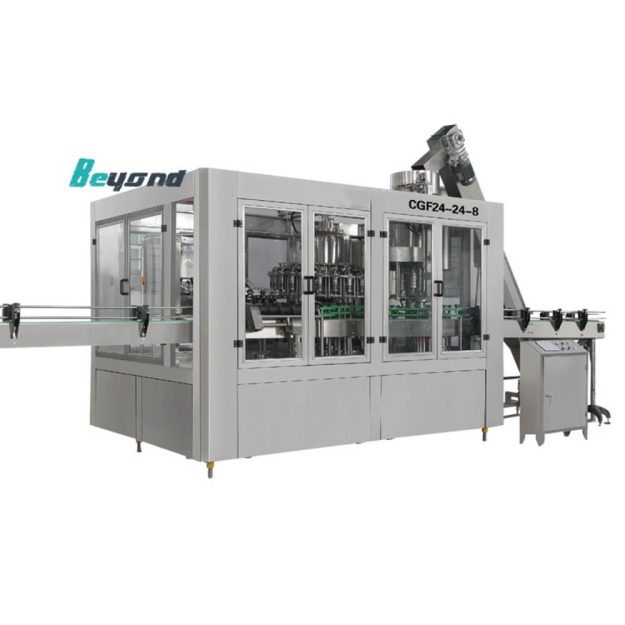

Glass Bottle Carbonated Water Filling Machine
A glass bottle carbonated water filling machine integrates rinsing, isobaric filling, and capping in a single unit. Designed to preserve CO₂, it ensures high filling accuracy, hygienic processing, and consistent sealing—ideal for sparkling water, soda, and flavored carbonated beverages in glass bottles.
Specifications
| Model | DCGF18186 | DCGF24248 | DCGF323210 | DCGF404012 | DCGF505012 |
| Head of washing, filling, sealing | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-12 | 50-50-12 |
| Capacity (b/h) | 4000-6000 | 6000-7000 | 8000-10000 | 12000-15000 | 15000-18000 |
| Suitable bottle diameter(mm) | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml | Φ=50-100 H=150-310 330-1500ml |
| Filling precision | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm | ≤±5mm |
| Motor power | 3.84kw | 4.1kw | 5.6kw | 7.5kw | 11kw |
| Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
| Overall dimension (mm) | 2600×1900×2550 | 3100×2200×2800 | 3850×3000×2850 | 4850×3800×2750 | 5750×3550×2750 |
| Weight(Kg) | 3650 | 4800 | 6800 | 8650 | 10500 |
Video
Description

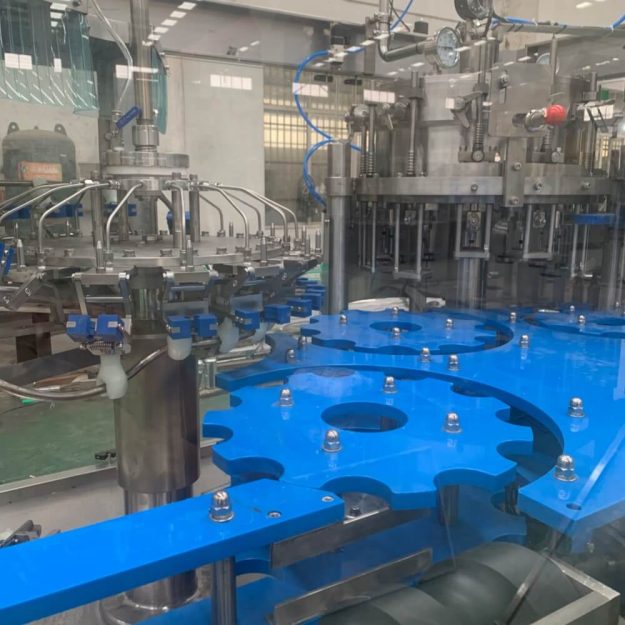

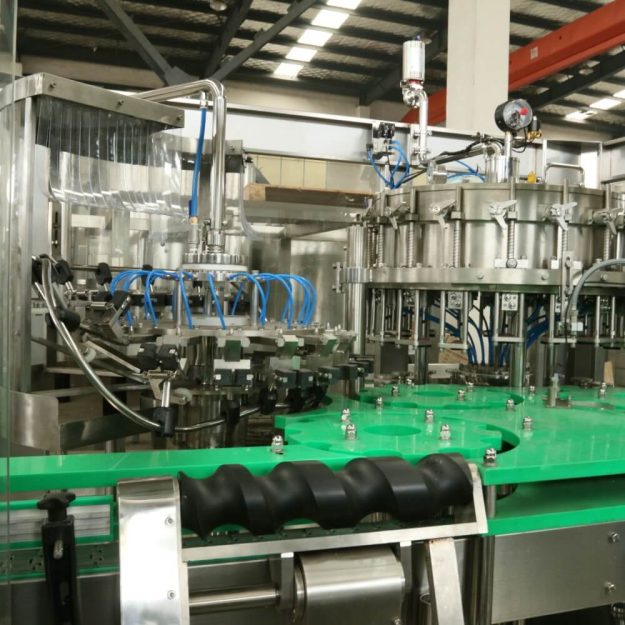

Rinsing Section
The rinsing system is designed to eliminate impurities and ensure hygiene before filling. Key features include:
-
Stainless steel 304/316 rotary rinsing turret
-
No-bottle-no-rinse sensor system
-
Neck-handling grippers to ensure bottle integrity
-
Customizable to use sterile water or ozonated water

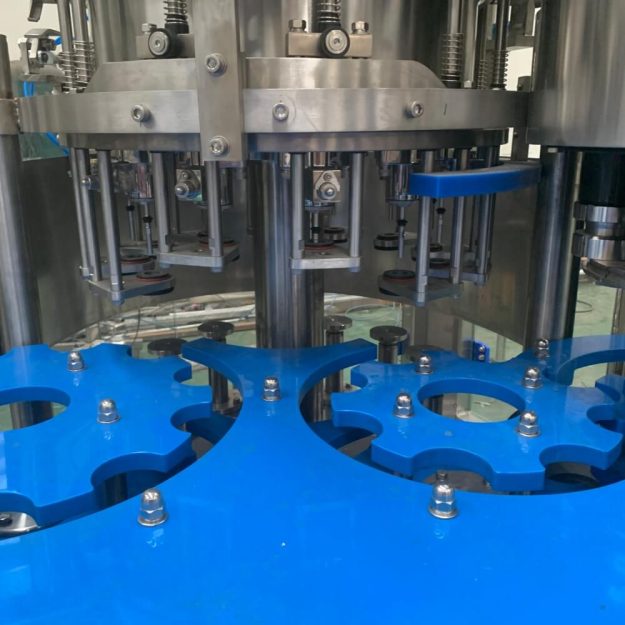

Isobaric Filling Section
This section uses counter pressure filling technology, essential for carbonated drinks to retain CO₂. Highlights include:
-
Isobaric (equal pressure) filling valves for minimal foaming
-
Precision level control via electronic or mechanical valves
-
Optional vacuum pre-evacuation system to reduce oxygen pickup
-
Pressure-relief valves to prevent bottle breakage
Capping Section
Reliable sealing ensures product integrity and shelf life. Our capping module supports:
-
Crown cap or twist-off cap options
-
Automatic cap sorter and cap chute
-
Magnetic or mechanical capping heads with torque control
-
Anti-rotation device to stabilize bottle neck
