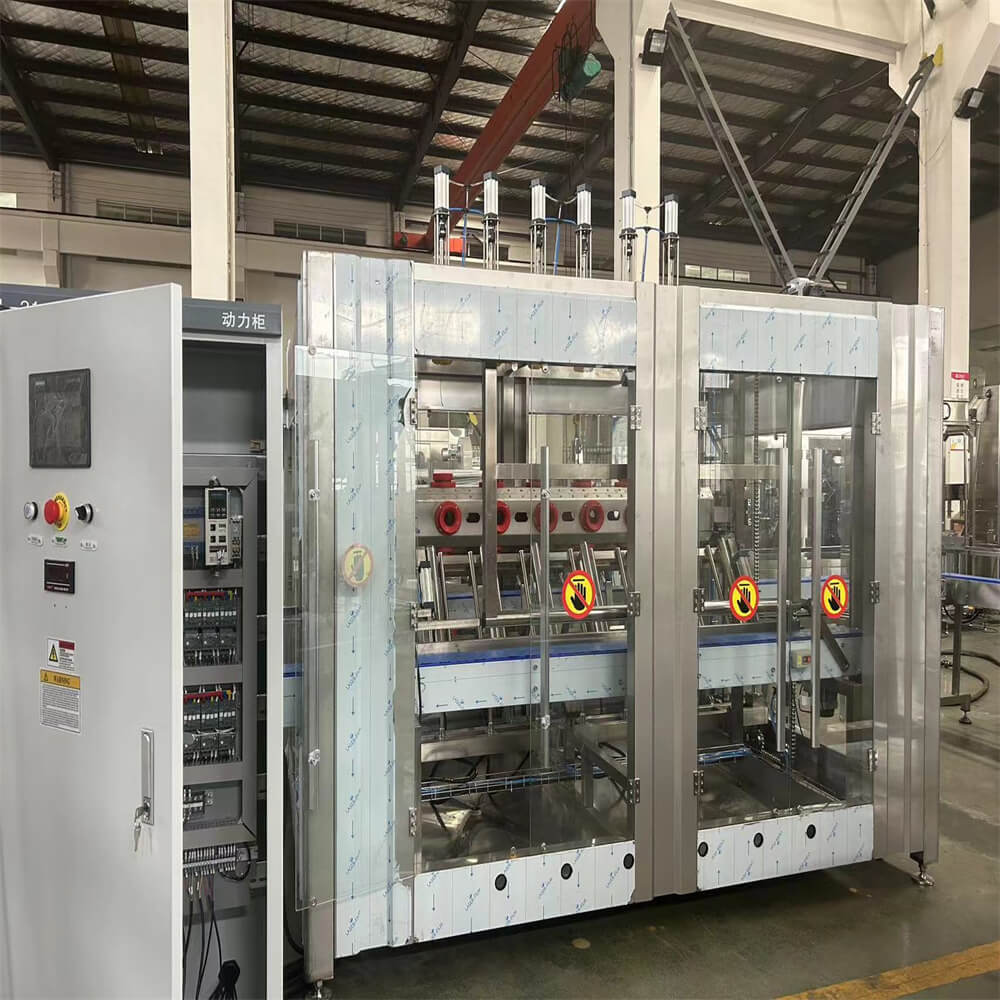

High Quality 5 Gallon Water Bottle Filling Machine Line
A high quality 5-gallon water bottle filling machine integrates washing, filling, and capping into a fully automatic line. Designed for large-capacity production, it ensures hygienic processing, efficient throughput, and long-term operational stability—ideal for bottled water manufacturers targeting consistent output and regulatory compliance.
Specifications
| Main configuration | Technical parameters |
| Filling pump | CDMF32-3 5.5KW |
| Cylinder | SU63*350 |
| Cylinder | SU63*50 |
| Low-voltage electrical components | AC contactor, relay, etc. |
| Mechanical filling valve | Variable frequency speed control pneumatic |
| Inverter | FR-E740-2.2K-GHT |
| Installed power | 10KW |
| Dimensions | 3800（L）×1500（W）×2400（H）mm |
| Material description | Bracket: 2mm316 stainless steel stamping plate folding
Side panel: 3mm316 stainless steel stamping plate folding Water tray: 2mm316 stainless steel |

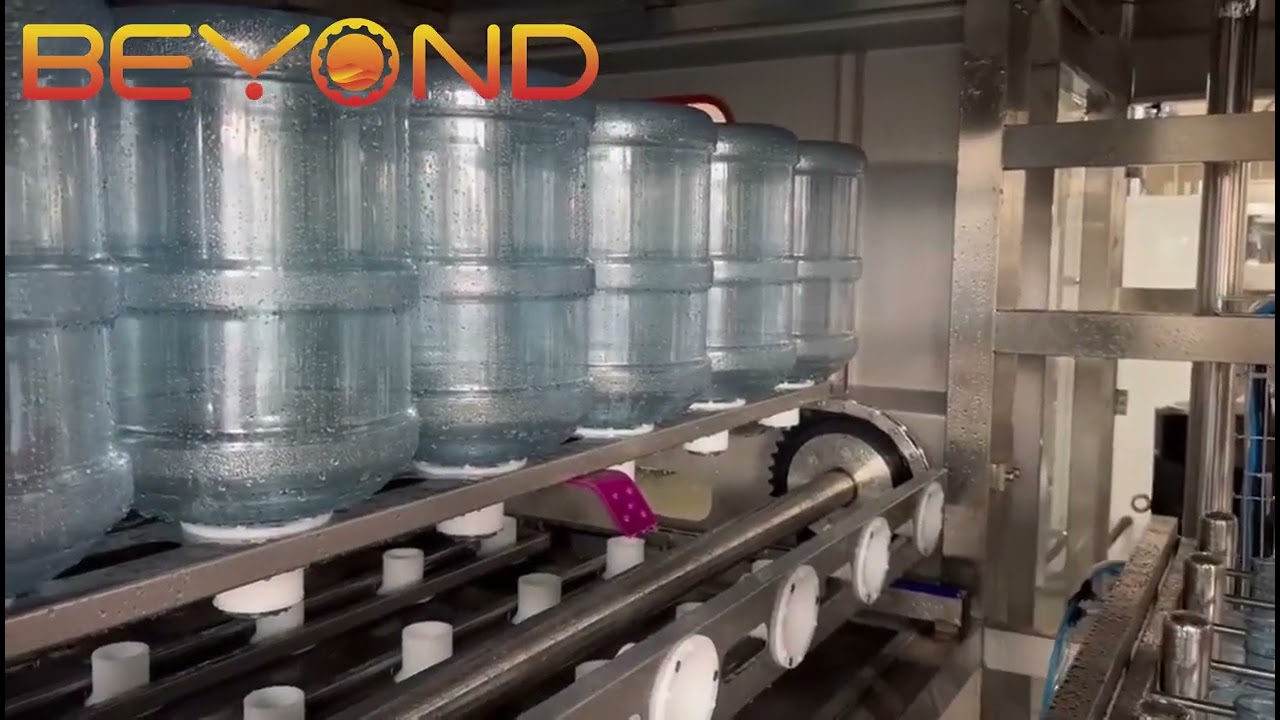

Video
Description
Washing Unit – Deep Cleaning for Hygiene Compliance
The washing station uses high-pressure, multi-step rinsing with internal and external nozzles to ensure all reused 5-gallon barrels are thoroughly cleaned. Equipped with stainless steel nozzles and optional hot water or ozone disinfection modules, it guarantees microbiological safety.
Expert Note: Many low-end systems skip external brushing, leading to contamination risks. We recommend a dual-action brushing + high-temp rinse for regions with higher hygiene regulations.
Filling Unit – Precision Filling with Zero Leakage
Our filling system employs gravity or pressure-based filling valves (depending on line speed). For example, a 600BPH line benefits from pressure valves with anti-leak diaphragm control, ensuring each 5-gallon bottle receives exactly the correct volume (±0.5%).
Technical Insight: The unique “no bottle–no fill” sensor system saves water and reduces operational errors, while the internal liquid contact surfaces are mirror-polished SS316L for maximum corrosion resistance and cleanability.
Capping Unit – Leak-Proof & Tamper-Evident Closure
Equipped with a pneumatic capping head, the machine ensures each cap is tightly sealed and tamper-evident. It supports both snap-on and screw-on caps with optional cap sterilization via UV or ozone.
Industry Tip: In tropical or humid climates, we strongly advise the addition of a cap sterilizer to prevent mold and microbial growth, especially in export-grade production lines.
