High-Speed Water Bottle Filling Machine | 72-72-18 Rinser Filler Capper

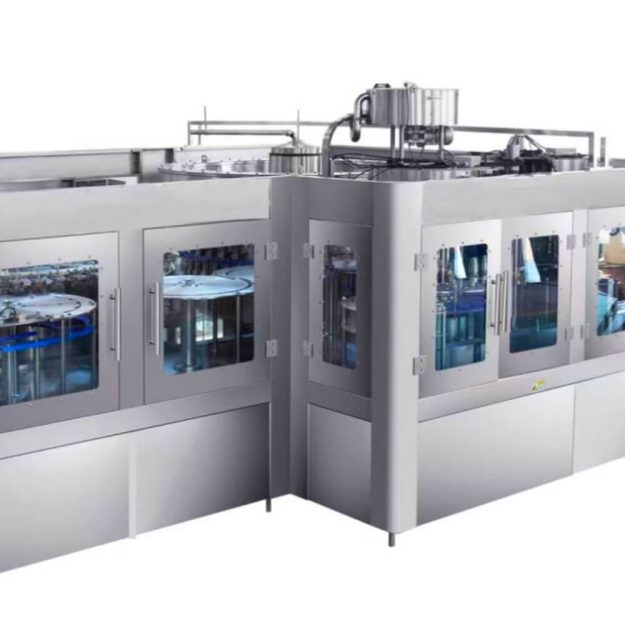

The 72-72-18 water bottle filling machine is a high-efficiency monoblock unit that integrates 72 rinsing heads, 72 filling heads, and 18 capping heads. Designed for large-scale mineral or purified water bottling lines, it ensures fast, stable, and hygienic production for up to 24,000 BPH.
Specifications
| Specification | Value |
|---|---|
| Model | CGF72-72-18 |
| Bottle Volume Range | 200ml – 2000ml |
| Production Capacity | Up to 24,000 BPH (500ml) |
| Filling Type | Gravity or slight vacuum |
| Air Consumption | 0.8 m³/min @ 0.6–0.8 MPa |
| Water Pressure | 0.2 – 0.25 MPa |
| Main Motor Power | 11 kW |
| Machine Dimensions | 5900 × 4700 × 2650 mm |
| Machine Weight | Approx. 10,500 kg |
Video
Description

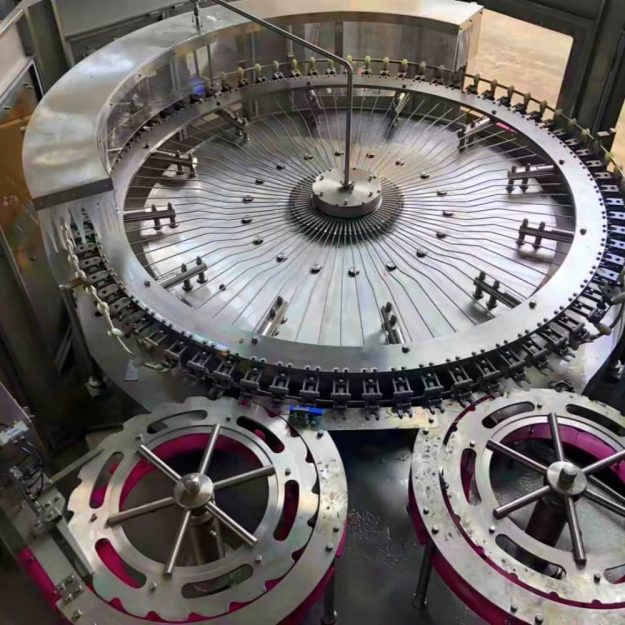

Rinsing Station – 72 Heads
-
Each head uses SUS304 stainless steel clamps that securely hold bottle necks while rotating 180° for internal rinsing.
-
Rinsing media: filtered or ozonated water
-
Equipped with a return water recovery system
-
Independent drain paths to ensure no cross-contamination
-
“No bottle – no rinse” function to save water
-
Optional sterile air flushing system

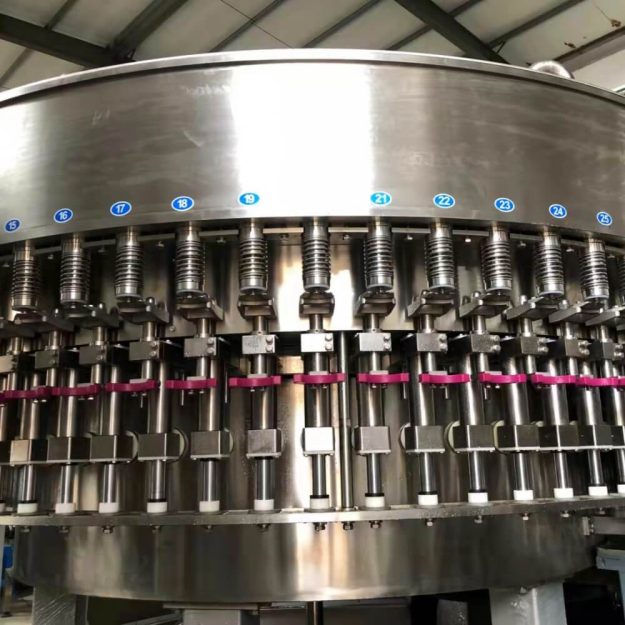

Filling Station – 72 Heads
-
Utilizes gravity or slight negative-pressure filling technology
-
Specially designed filling valves ensure rapid, foam-free filling
-
Integrated liquid level sensor for accurate fill control
-
Bottle neck handling mechanism avoids bottle deformation
-
All liquid contact areas comply with FDA-grade stainless steel
-
Easy dismantling for daily maintenance and quick CIP
Capping Station – 18 Heads
-
High-efficiency rotary capping system using magnetic torque heads
-
Handles plastic screw caps (28mm / 30mm)
-
Cap sorter and elevator integrated for continuous feeding
-
Auto cap absence detection & rejection system
-
Adjustable torque via HMI, ensuring tightness consistency
-
Safety clutch to prevent cap damage and mechanical overload
