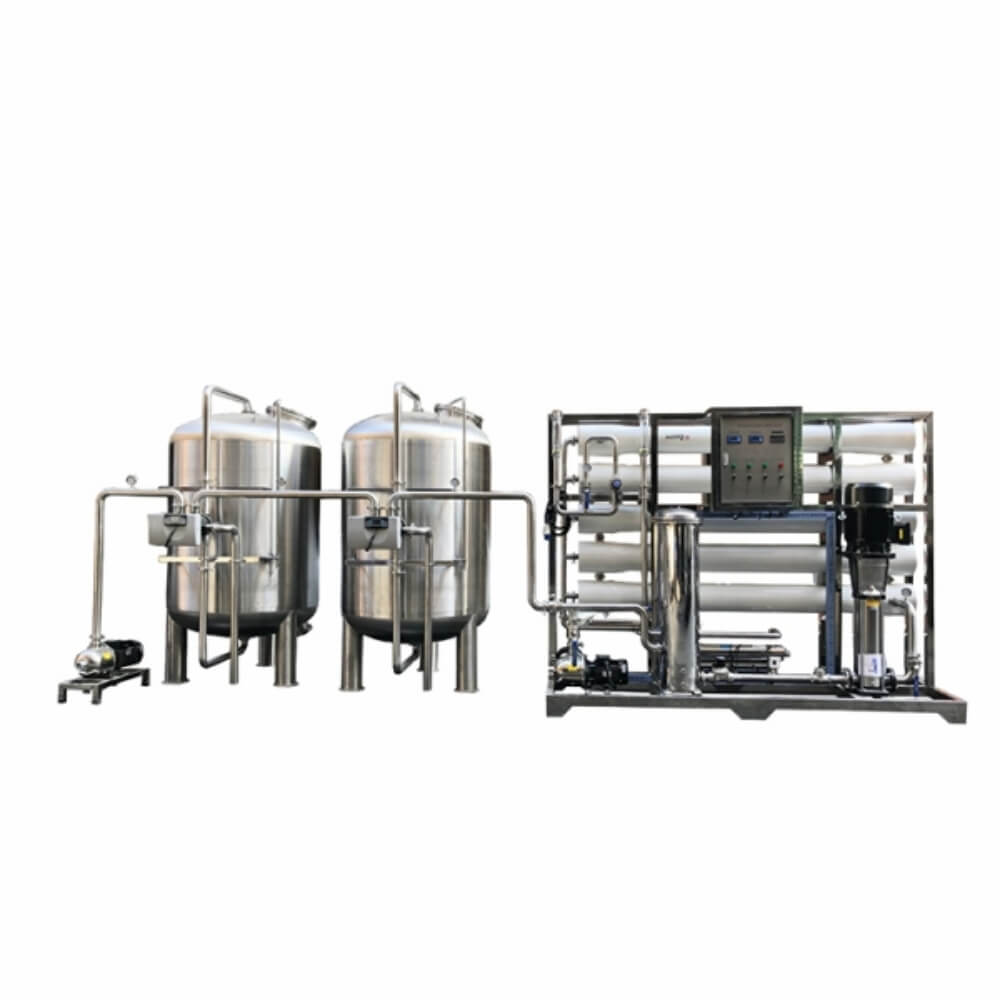

Pure Water Equipment – Reliable, Customizable Solutions for Clean, Safe Water
Pure water equipment is exactly what it sounds like—equipment designed to remove impurities and contaminants from raw water, making it clean, safe, and suitable for a wide range of uses. From bottled water production and food manufacturing to pharmaceuticals and laboratories, having access to purified water isn’t a luxury—it’s a necessity.
At its core, a pure water system typically includes a series of treatment steps such as:
- Pre-filtration (sand, carbon, and cartridge filters)
- Reverse Osmosis (RO)
- UV Sterilization or Ozone Disinfection
- Deionization (DI) or EDI Modules
- Ultrafiltration (UF) (depending on application)
Each step plays a role in tackling different types of impurities—from sediments and chemicals to microorganisms and dissolved salts.
Specifications
| Model | RO 1000 | RO-2000 | RO-3000 | RO-4000 |
| Section area (m3) | 0.28 | 0.5 | 0.78 | 1.13 |
| Filtering speed(m/h) | 8-12 | 8-12 | 8-12 | 8-12 |
| Treating volume (m3/h) | 2-3 | 4-6 | 8-10 | 12-15 |
| Pressure (Mpa) | <0.3 | <0.3 | <0.3 | <0.3 |
| Filter layer height (mm) | 1200 | 1200 | 1200 | 1200 |
| Inlet and outlet turbidity(mm) | Ø 550*700*2150 | Ø 650*900*2400 | Ø 1100*1000*2600 | Ø 1500*1200*2900 |
| Weight(kg) | 750 | 1200 | 1800 | 2200 |

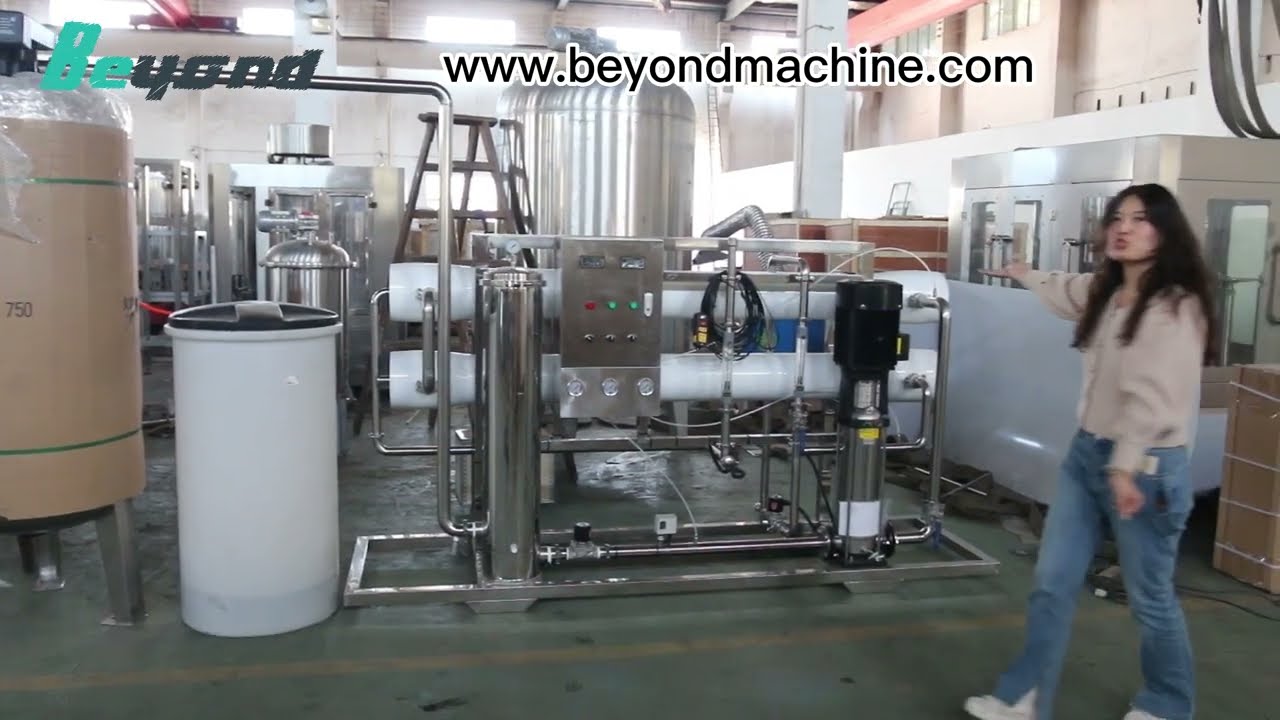

Video
Description
The machine is mainly used in the beverage-filling operations. Suitable for non-carbonated drink-filling machines, The three functions of bottle wash, fill and seal are composed in one body of the machine.
The whole process is automatic. The machine is used in filling juices, mineral water, and purified water in bottles made of polyester and plastics.
The machine can also be used in hot filling if it is installed with a temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.
The filling operation is faster and more stable because the micro-pressure filling operation of the new type is adopted.
The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle-entering chains to adjust speeds and coordinate with the transducer of the main machine to make the operations of moving the bottle forward steadily and reliably.
It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On this basis, the filling parts of the machine can be changed into filling methods of lower vacuum. The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy, and such materials. The aluminum theft-proof cap and plastic cap can be adopted.
With over 20 years of experience, we don’t just sell equipment—we build complete water purification solutions tailored to your exact needs. Here’s what sets us apart:
- Modular Design – Systems from 250 LPH to over 500,000 LPH, expandable as your business grows
- Top-Grade RO Membranes – Up to 99% salt rejection rate for better water quality
- Smart Control Systems – PLC/HMI automation for hands-free operation and real-time monitoring
- Hygienic Piping & Frames – Made with SS304 or SS316L stainless steel, suitable for food and pharma
- Energy-Efficient Pumps – Quiet, powerful, and built to last
- Custom Pre-treatment Options – Softener tanks, antiscalant dosing, carbon filters—all designed for your local water source
🔄 Frequently Asked Questions
Q: What’s the difference between RO and UF?
A: RO (reverse osmosis) removes dissolved salts, heavy metals, and bacteria. UF (ultrafiltration) handles particles and microbes but not dissolved salts.
Q: How long do membranes last?
A: With proper pre-treatment and maintenance, RO membranes typically last 2-3 years.
Q: Can I upgrade my existing system?
A: Absolutely. We offer system upgrades, automation retrofits, and performance optimization.
