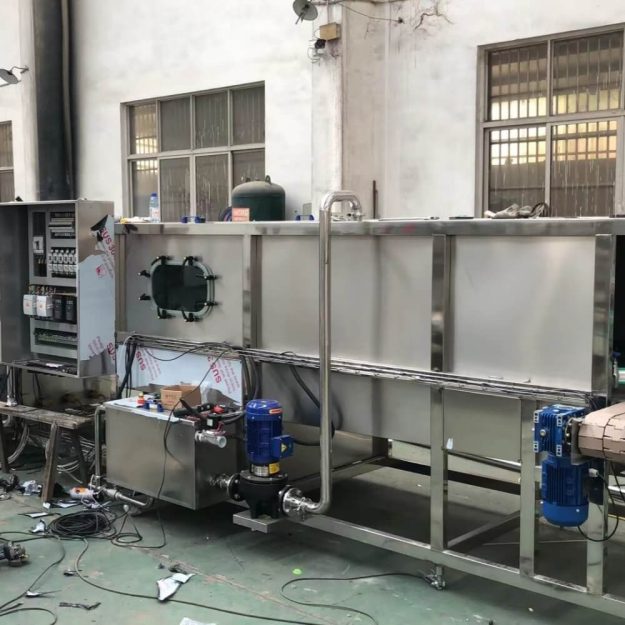

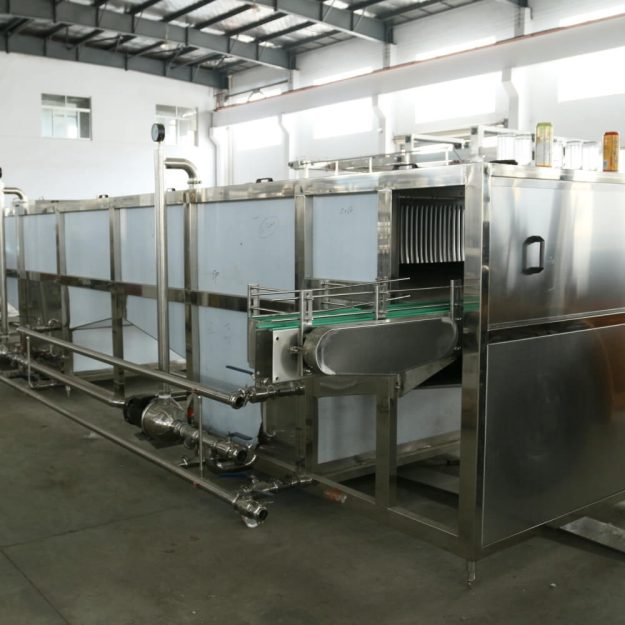

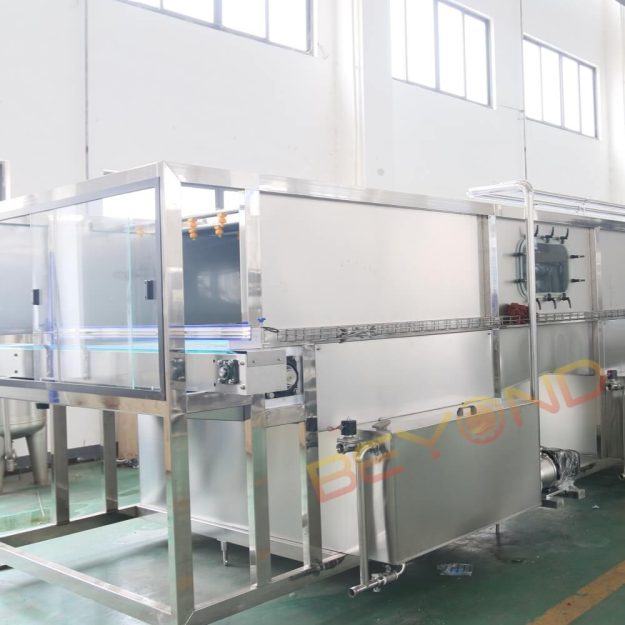

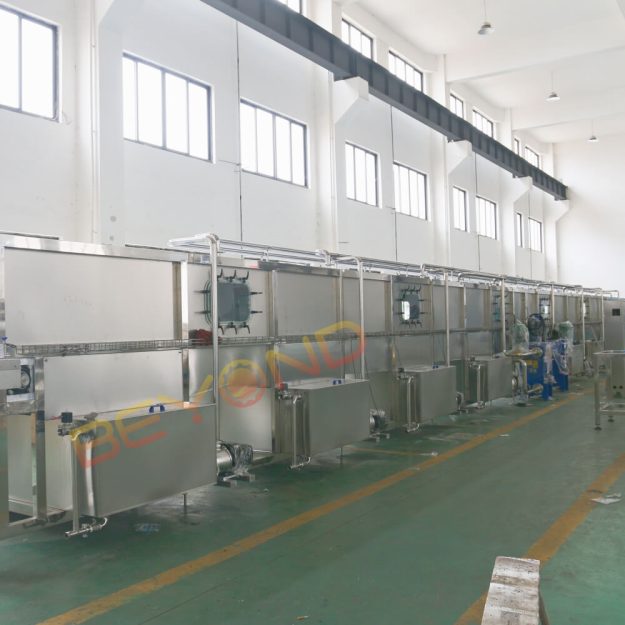

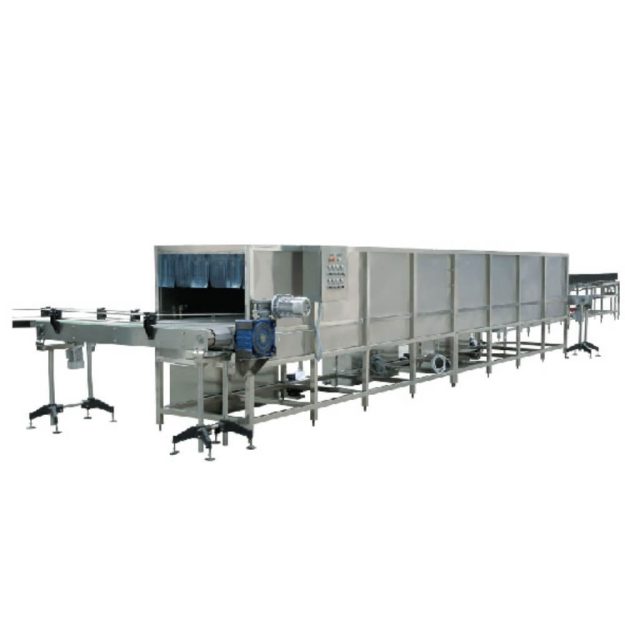

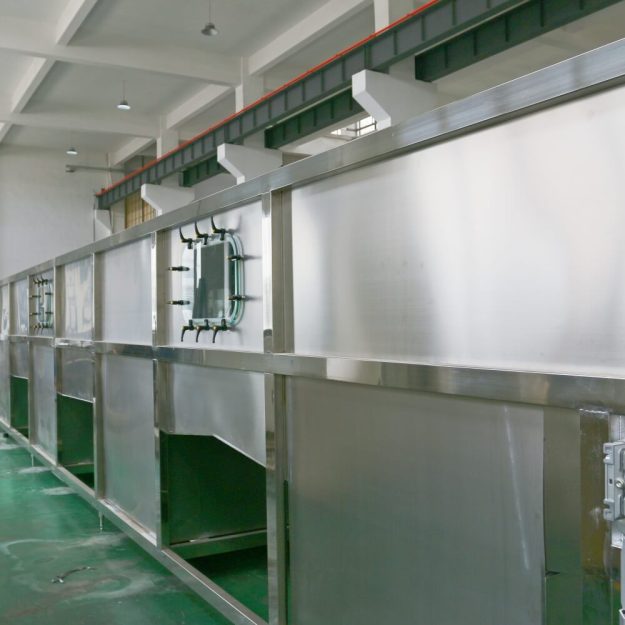

Spray Pasteurizing Conveyor Cooling / Warming Tunnel

PL type spraying cooling machine are developed on base of absorbing advanced technique from home and abroad. With three zones treatment of circulated cooling water and the treatment time can be adjusted according to the user’s requirement. The machine can applicable to all types juice . The machine body is made of SUS304 stainless steel and can run stably and smoothly.

Get A Quote


Model WB-1 WB-2
Production Capability(b/m) 80-150 250-400
Highest sterilization temperature) Max 100 Max 100
Surface speed of conveyer belt(mm/min) 110-553 200-1000
Circular water volume(m³/h) 15 25
Pressure of steam main pipe (Mpa) 0.4 0.4
Overall dimension(L×W×H)(mm) 12000×1914×1700 14000×2900×1700

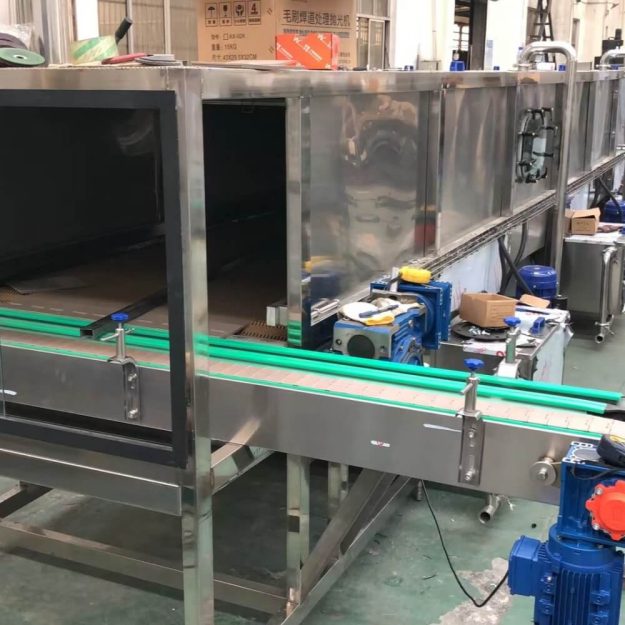

1. High reliability conveying device and flexibility speeding system

The conveying belt for bottles is high strength plastic chain net which has god strength and abrasion proof. The driving conveying adopts step-less motor which can change the speed of conveying belt easily.

2. High effective spraying system

Via arranging the atomization nozzles on the chain plate in order to spray the bottles evenly, the spraying water can be utilized completely and the spraying covers large area

3. The temperature can be controlled flexibly and easily set

The machine adopts temperature controlling system which can control the temperature exactly and be sensitive to the response. Press the button to set temperature between 0-100°C
