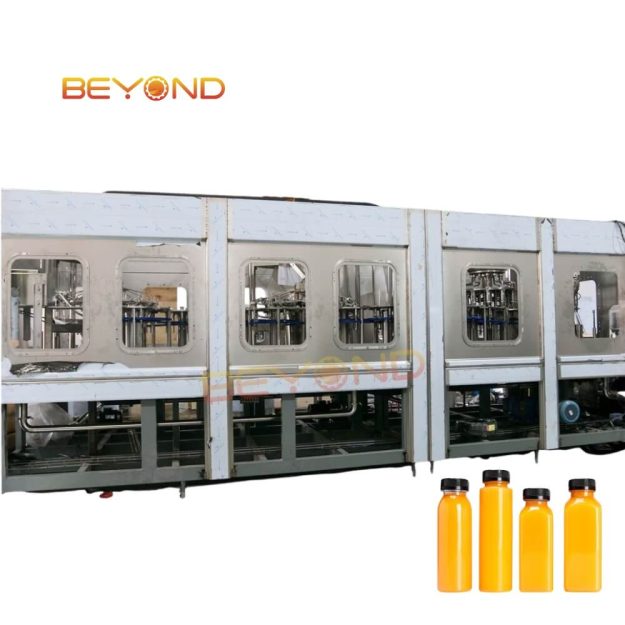

Ultra-Clean Filling Machine for ESL Milk & Juice | 60-Day Cold Chain Shelf Life
The Ultra-Clean Filling Machine for ESL Milk & Juice is engineered for producers seeking longer shelf life, high food safety standards, and flexible beverage applications—without the complexity and cost of full aseptic systems.
Based on over 16 years of beverage filling experience, this solution bridges the gap between hot filling and aseptic filling. It is ideal for ESL milk, NFC juice, juice drinks, protein beverages, and functional dairy products, delivering reliable hygiene control and consistent filling accuracy at industrial scale.
Ultra-clean technology focuses on controlled contamination, not absolute sterility—making it a cost-effective, energy-efficient choice for modern dairies and juice plants.
Specifications
| Item | Specification |
|---|---|
| Machine Type | Ultra-Clean Filling Machine for ESL Milk & Juice |
| Capacity Range | 3,000 – 24,000 BPH |
| Bottle Volume | 200 ml – 2000 ml |
| Applicable Products | ESL Milk, NFC Juice, Juice Drinks, Dairy Beverages |
| Bottle Material | PET / HDPE |
| Filling Temperature | 4 – 25 ℃ |
| Filling Accuracy | ±0.5% |
| Filling Environment | Ultra-clean controlled zone |
| Oxygen Pickup | ≤ 1.5 mg/L (typical) |
| Filling Valves | Hygienic low-oxygen filling valves |
| Cap Sterilization | Chemical or UV sterilization |
| CIP System | Fully automatic CIP |
| Control System | PLC + Touch Screen |
| Main Material | SUS304 (SUS316L optional) |
| Automation Level | Fully automatic |
| Customization | Available |
Video
Description
Maximize Shelf Life. Minimize Cost.
The Smart Ultra-Clean Solution for Cold Chain Beverages.
Unlock 45-90 days of shelf life for your fresh milk, yogurt, and NFC juices. Our Ultra-clean (ESL) system bridges the gap between standard filling and expensive aseptic lines—delivering Log 3 safety at a fraction of the investment.
Automatic Ultra-Clean Filling Monoblock (ESL Series)
Engineered for sensitive beverages, our ESL series integrates Sterilizing, Rinsing, Filling, and Capping into one compact monoblock. It is specifically designed to handle low-acid (pH > 4.6) and high-acid products distributed under cold chain conditions.
Key Applications:
- Dairy: Pasteurized Milk, Drinking Yogurt, Flavored Milk.
- Plant-Based: Oat Milk, Almond Milk, Soy Milk.
- Juice & Tea: NFC Juice, Cold Brew Tea, Functional Waters.
Which System Fits Your Strategy?
|
Feature |
Standard Hygienic |
Our Ultra-Clean (ESL) |
Aseptic Filling |
|
Primary Goal |
Low Cost |
Balance (Cost vs. Shelf Life) |
Ambient Storage |
|
Typical Shelf Life |
7-14 Days (Cold) |
45-90 Days (Cold) |
6-12 Months (Ambient) |
|
Log Reduction |
Log 1 |
Log 3 – Log 4 |
Log 6 |
|
Investment Level |
Low |
Medium (Best ROI) |
Very High |
|
Tech Complexity |
Low |
Moderate |
High |
