Water Bottling Equipment | CGF32-32-8 | 12,000 BPH Line
The CGF32-32-8 is a fully automatic water bottling equipment designed for rinsing, filling, and capping PET bottles. With a production capacity of up to 12,000 bottles per hour, it integrates three processes in one monoblock machine, making it ideal for medium to large-scale water production lines.
Specifications
| Model | CGF883 | CGF14125 | CGF18186 | CGF24248 | CGF323210 | CGF404010 |
| Heads of washing, filling , sealing | 8-8-3 | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 |
| Production capacity (bottle/hour) | 1000-2000 | 3000-5000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
| Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml | |||||
| Spraying pressure | 2~3 | |||||
| Motor power | Main motor 4.1kw |
Main motor 4.23kw |
Main motor5.03kw | Main motor 6.57kw | Main motor7.5kw | Main motor 8.63kw |
| Power of outer vacuum pump | 0.7 | 0.7 | 1.1 | 1.5 | 2.2 | 2.2 |
| overall dimension (LxWxH) | 2100x1400x2500 | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 | 4600x1800x2650 |
| Weight | 2300 | 2500 | 3500 | 4200 | 5500 | 6800 |
Video
Description

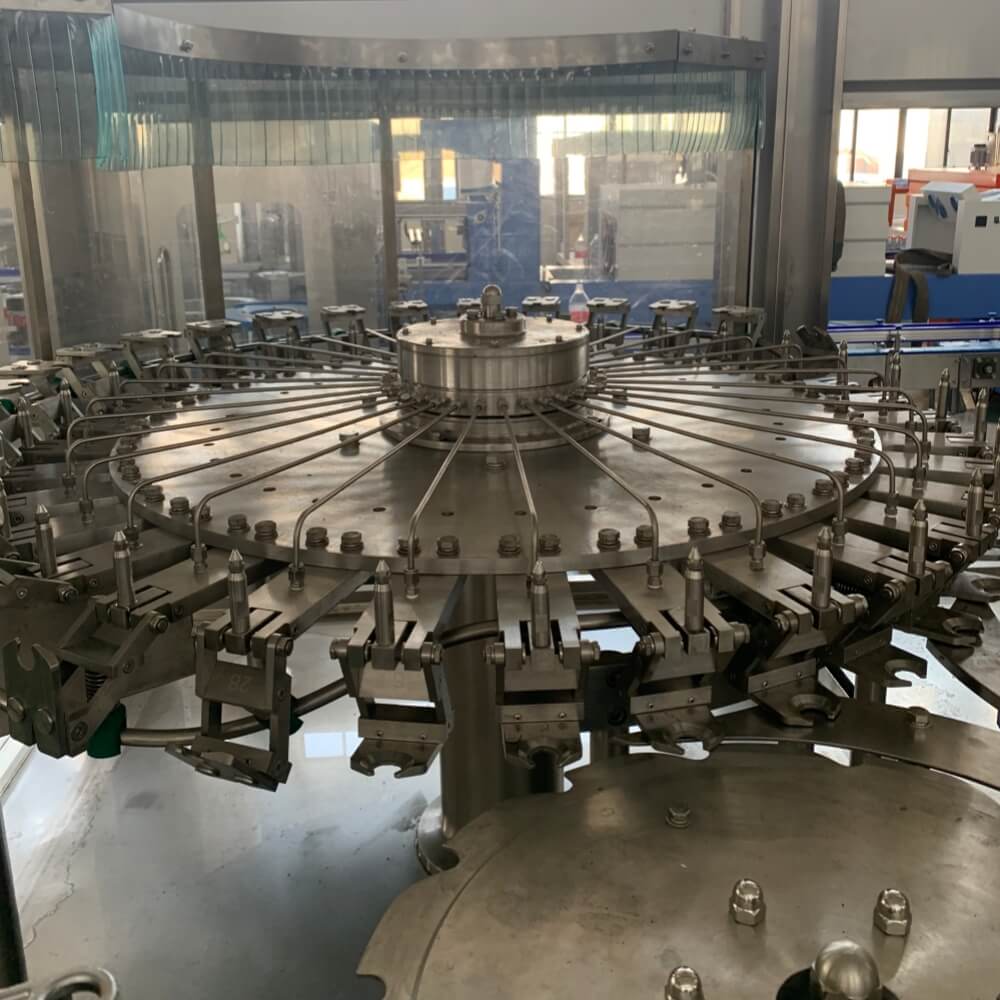

Rinser Unit – 32 Heads
Function: Inverts and washes empty PET bottles using sterile water or ozone-treated water.
Highlights:
-
Neck-holding design avoids bottle body contamination
-
SUS304 stainless steel clamp arms with precise motion
-
Drip tray and closed-loop water recovery system
-
Optional air rinsing or ionized air for dry cleaning

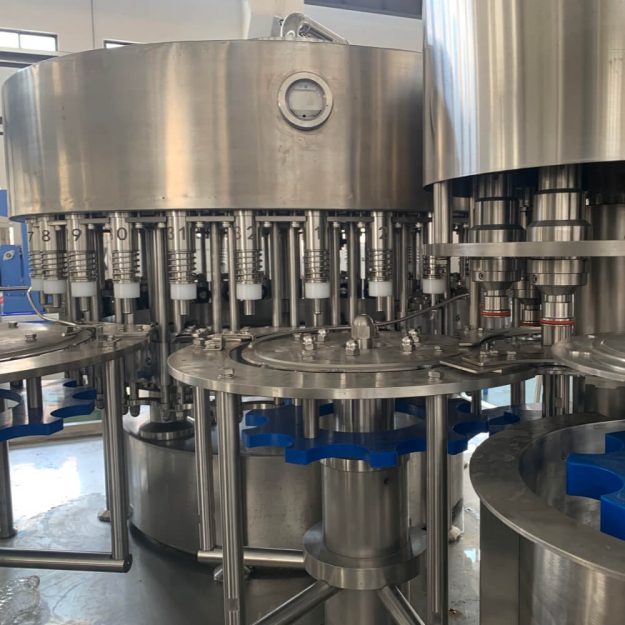

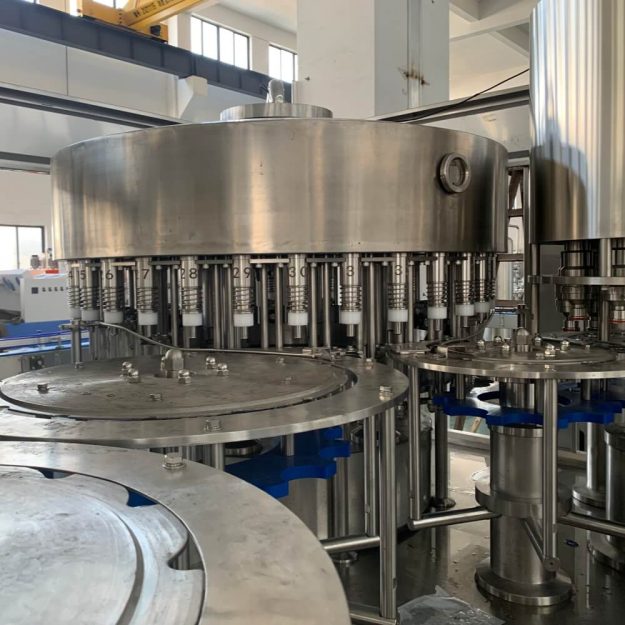

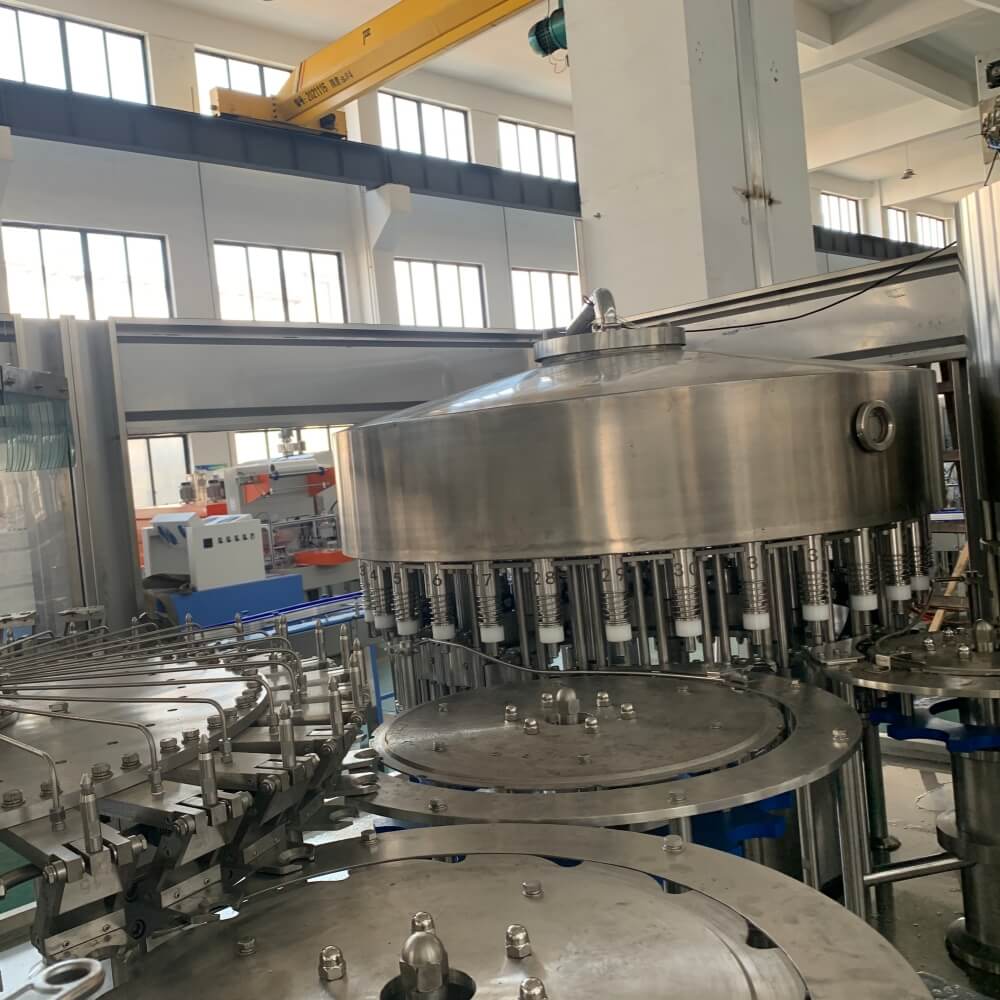

Filler Unit – 32 Heads
Function: Gravity-type filling of non-carbonated water (pure/mineral) into PET bottles.
Highlights:
-
High-speed gravity filling valves for accurate volume control
-
No-bottle, no-fill sensor system
-
SUS304 contact parts (SUS316 optional for acidic liquids)
-
Anti-drip and anti-foam nozzle design
-
Clean-in-Place (CIP) enabled for hygiene compliance
Capper Unit – 8 Heads
Function: Automatically places and tightens plastic screw caps onto bottles.
Highlights:
-
Magnetic torque capping heads for consistent tightness
-
No-cap, no-capping mechanism
-
Cap sorting and feeding via centrifugal cap sorter or elevator
