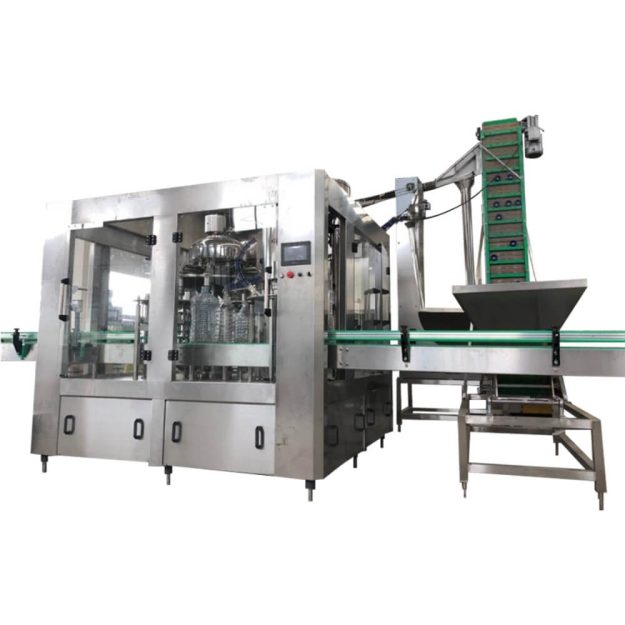

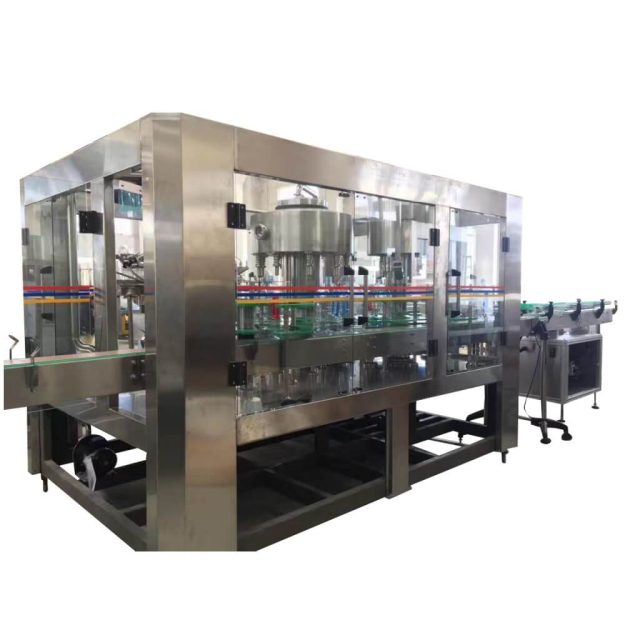

Automatic 5L Bottle Water Washing Filling Capping Machine

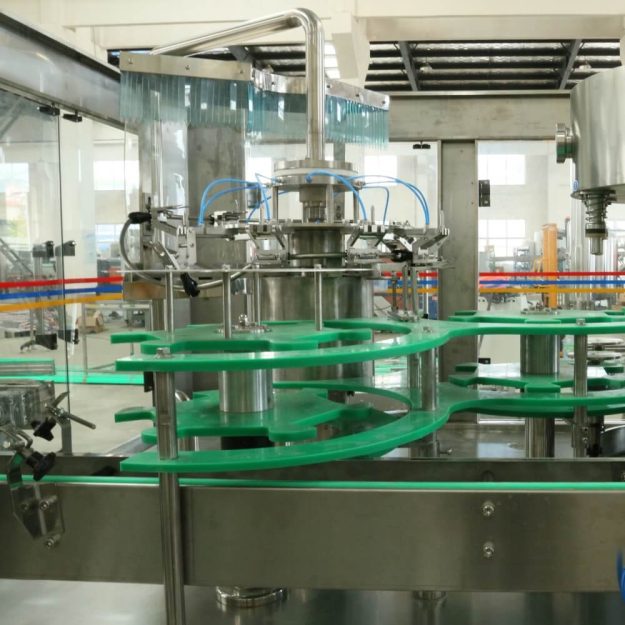

It is mainly composed of a bottle washing clamp, upper rotary plate, guide rail, water distributing plate, shield, water spraying device, water tray, etc. Bottle washing clamp rotates with the upper rotary plate, and open the bottle mouth clamp with elastic distortion when contacting the bottle feeding star-wheel, which can clamp the bottleneck, then overturns at 180° along the guide rail, bottle mouth may become downwards for cleaning and drying the bottle with water, then overturn for 180°, bottle mouth becomes upwards and then conveyed with the star-wheel; shield can prevent sprinkling of cleaning water; water distributing plate can deliver the cleaning water from the still parts to the rotary parts.

Get A Quote

Specifications

3L-5L-10L filling production line
model 2~2~1 4~4~1 6~6~1 9~9~4 12~12~4 16~16~4 20~20~5
capacity(5L)BPH 200 400 600 1000-2000 2000-3000 3000-4000 4000-5000
Footprint(M3) 50 60 100 150 180 200 250
Total power(KW) 10 15 18 20 25 30 40
operator 5 5 5 5 5 5 5

Video

YouTube video

Description

Three- progress for washing the bottle of 5L/10L bottled water washing filling capping machine: Washing inside and outside with alkalescent liquid, washing inside and outside with disinfectant water, washing inside and outside with pure water

  • The 5L/10L bottled water washing filling capping machine alkalescent liquid and disinfectant water can be cycling used.
  • The 5L/10L bottled water washing filling capping machine washing, filling, and sealing process is controlled by a PC and has the safe device for interlock, signal, and self-detection.
  • The whole automatic 5L-10L bottled water washing filling capping machine is made of the stainless steel, meets the demands of food hygiene, with the feature of reasonable structure, easy in operation, exact actionm, it’s the ideal equipment for the barreled water
