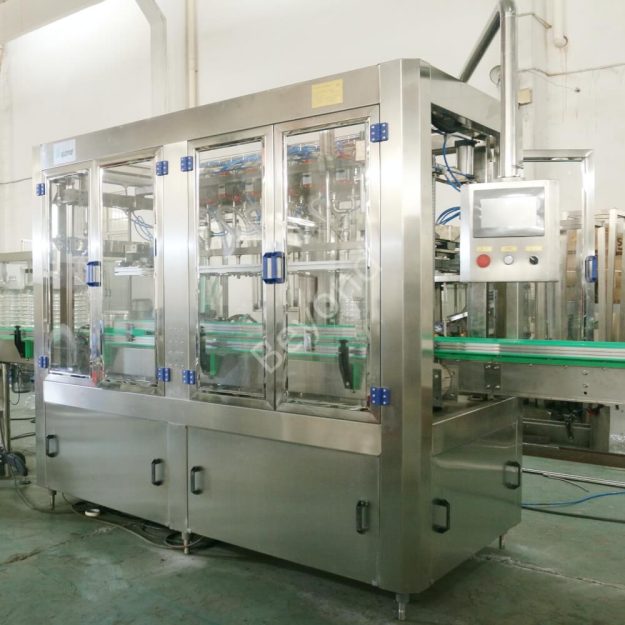

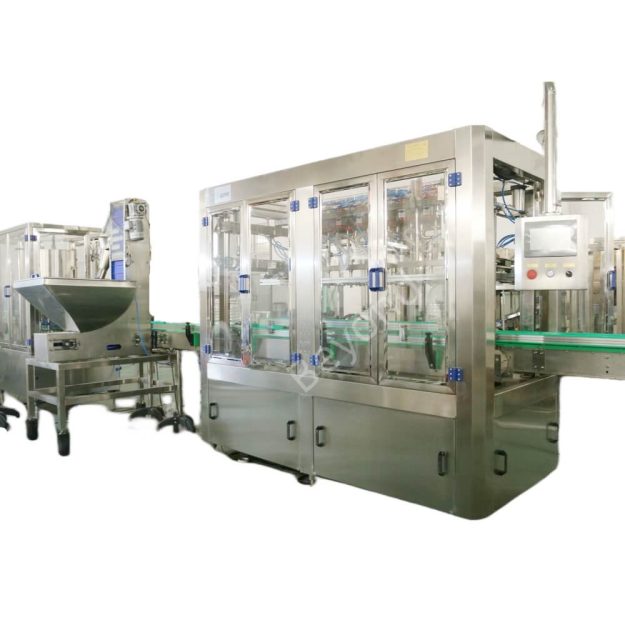

Oil Loading Cell Filling Machine

This type machine is used for 4kg -30 kg liquid filling . It can finish a series of operations automatically, such as bottle inlet, weight filling, and bottle outlet. Especially for SL, edible oil lubrication .it is a nice choice for foodstuff, pharmacy, cosmetic and chemical industries.

Get A Quote

Specifications

Filling heads 12
Applicable size Customized
Filling speed 20KG: ≤1000BPH
Filling accuracy 20KG: ±20g
Overall dimension 5600*1700*2300 (length * width * height)
Main engine power 2KW; 220/380 V;50/60 HZ
Main engine weight about 800kg
Air source 0.6-0.8MPa

Video

YouTube video

Description

Major Characteristics

1、This machine adopts PLC, touch screen control panel, convenient to adjust.

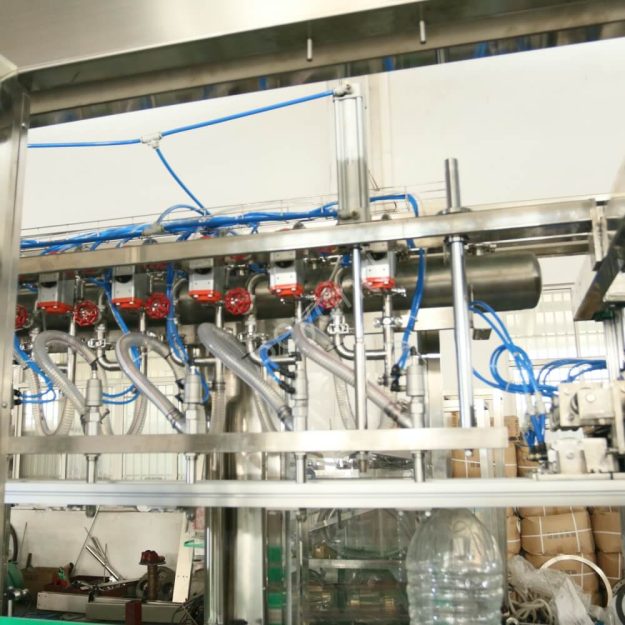

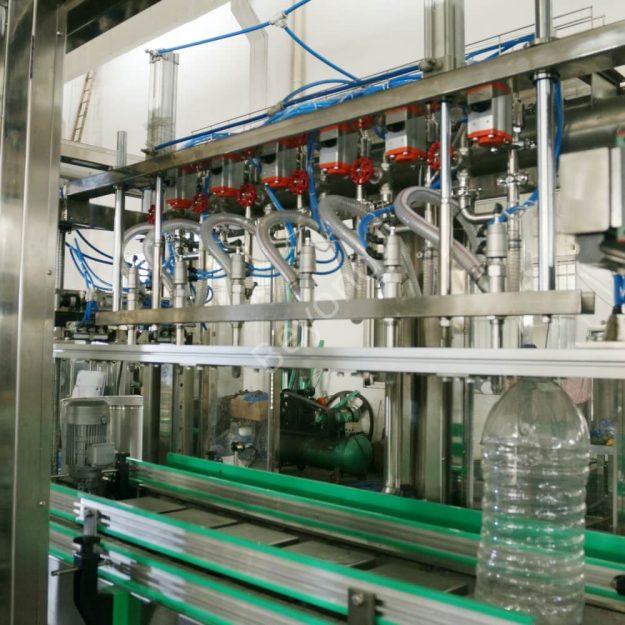

2、Each filling head has the weigh and feedback system. Each filling head can be regulated.
3、Photoelectric sensor, approximate switch and other electric elements are the international famous brand. No container no filling. The main host can trigger the alarm if there is any container blocked.
4、Submerged filling makes it possible to reduce form. It is suitable for various kinds of filling products.
5、The whole machine meets GMP standard. It is easy to disassemble clean and maintain, and the parts which contact with the filling products are made of high quality stainless steel. The whole machine is safe, environmental, sanitary, adapts to various kinds of working places.



Advantage:

1.PLC touch screen controls the whole machine, parameter adjustment is convenient, filling quantity is displayed in the touch screen.
2.Automatic intelligent detection drum neck,then filling.
3.Electrical equipment are imported.Germany HBM weighing sensor,Germany LEUZE photoelectric sensor,PLC and Other equipment are world famous brands.
4.High precision filling.Adopt high speed have slow speed switch filling mode,PLC control the filling valve slowly closed when reach to the target filling capacity,so that the filling accuracy can be very high.
5.Diving filling,no dripping from filling mouth,and the filling needles will not contact with the filling material when filling.
6.To make sure the machine clean when filling,we set a special drain sump under the needles,and the filling machine will be send to the drum in next filling.
7.The machine mechanism design is reasonable, the frame is strong.
8.No damage with the drum surface and bottom.
