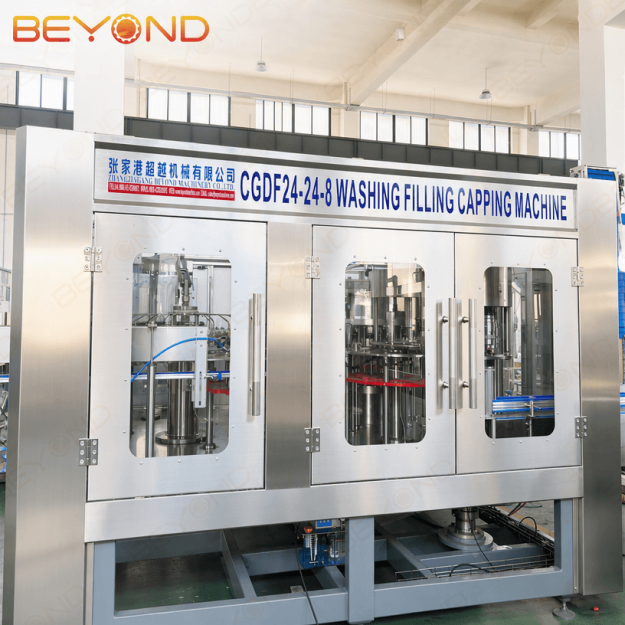

24-24-8 Automatic Carbonated Beverage Filling Machine 10000BPH
The 24-24-8 Carbonated Beverage Filling Machine is an automatic PET bottle filling system designed for high-efficiency carbonated beverage production. With a rated production capacity of up to 10,000 bottles per hour (10000BPH), this machine is suitable for bottled soda, carbonated soft drinks, sparkling beverages and other carbonated products.
Specifications
| Model | DCGF 16126 | DCGF 18186 | DCGF 24248 | DCGF 32328 | DCGF 404010 | DCGF 484812 | DCGF 606015 | DCGF 808020 |
| Heads of washing, filling, sealing | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 48-48-12 | 60-60-15 | 80-80-20 |
| Production capacity(bottle/hour) | 3000-4000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-18000 | 20000-24000 | 24000-28000 | 36000-40000 |
| Suitable bottle height | H=170-320 | |||||||
| Spraying pressure | 0.25-0.3 | |||||||
| Total Power | 1.5+0.37 | 2.2+0.37 | 3+0.45+ 0.25 | 5.5 | 7.5 | 11 | 15 | 19 |
| Overall dimension(L×W×H) | 2300× 1680× 2650 | 2500× 1760× 2650 | 3100× 2100× 2650 | 3800× 2800× 2650 | 4000× 3300× 3400 | 4850× 3650× 3300 | 6500× 5400× 3500 | 7650× 6400× 2700 |
| Weight | 2600 | 3500 | 4650 | 6800 | 8500 | 10000 | 12500 | 16000 |
Video
Description
24 Heads Bottle Rinser
Working Principle:
PET bottles are automatically transferred into the rinsing section for internal cleaning before filling, helping maintain hygienic production conditions.
Technical Highlights:
- Automatic Bottle Positioning — Stable bottle positioning helps ensure accurate alignment between bottles and rinsing nozzles.
- Hygienic Stainless Steel Design — Product-contact and rinsing areas use hygienic stainless steel construction for easy cleaning and maintenance.
- Continuous Automatic Operation — The rinsing process is synchronized with bottle transfer for smooth and stable high-speed production.

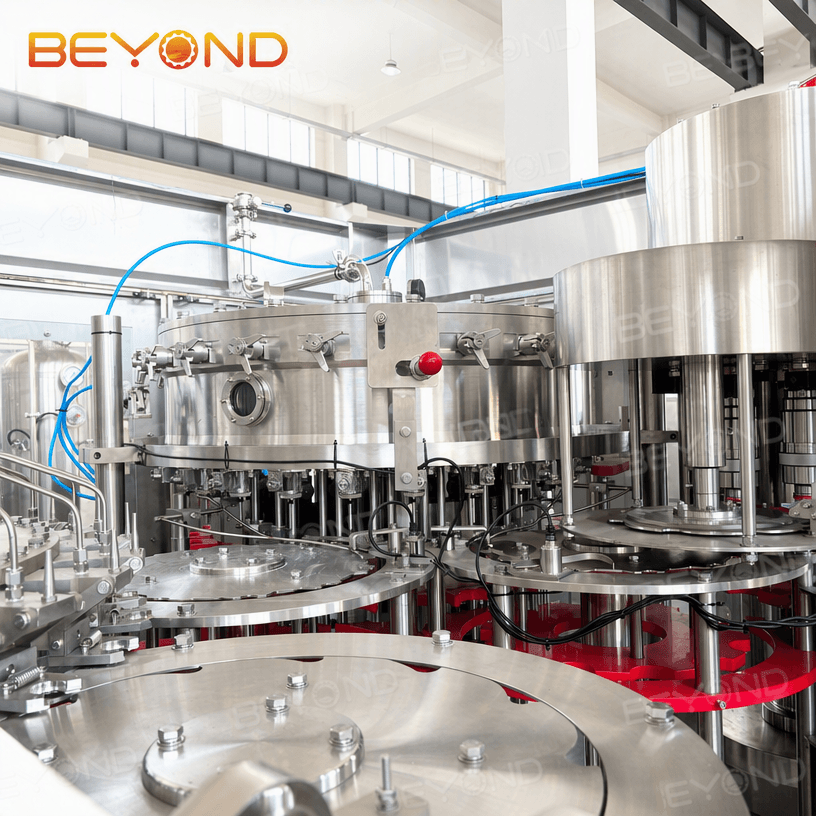

24 Heads Carbonated Beverage Filler
Working Principle:
The filling valve system is specially designed for carbonated beverages. The filling process helps minimize product foaming and CO₂ loss while maintaining stable filling performance.
Technical Highlights:
- Stable Filling Performance — The synchronized filling system helps maintain consistent liquid levels across bottles during continuous production.
- CO₂ Retention Design — The filling process is optimized to reduce unnecessary carbonation loss and help maintain beverage quality.
- High-Efficiency 10000BPH Production — 24 filling valves support stable production at approximately 10,000 bottles per hour.
- Easy-to-Clean Filling Structure — The filling system is designed for convenient cleaning and maintenance, helping meet the requirements of beverage production.

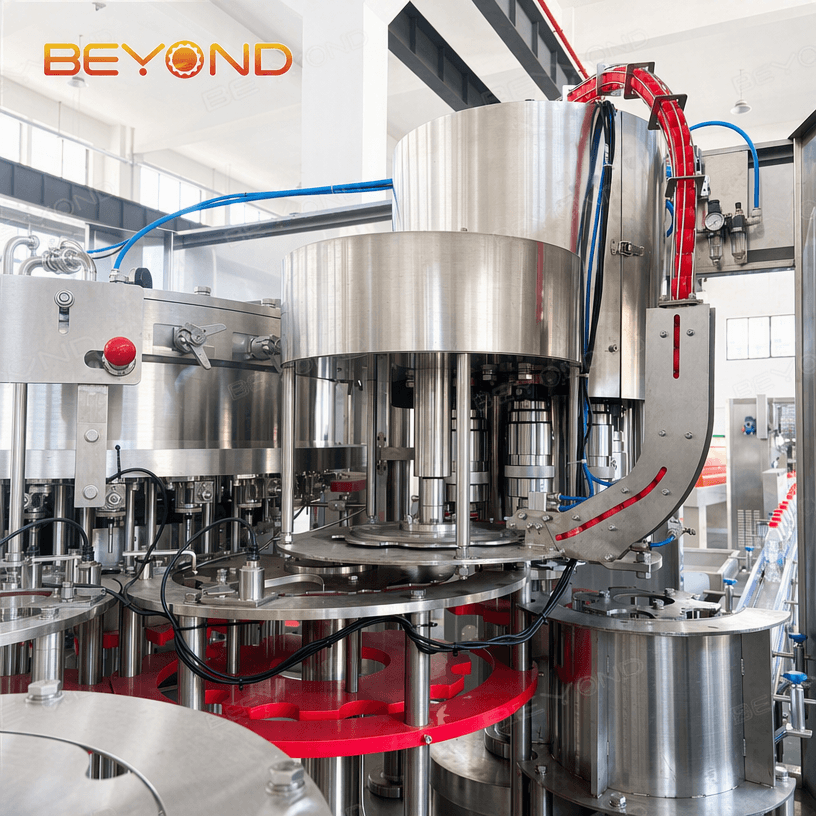

8 Heads Automatic Capper
Working Principle:
After filling, bottles are automatically transferred to the capping section. The 8-head capping system provides continuous and synchronized bottle sealing for efficient production.
Technical Highlights:
- Stable Cap Feeding — The automatic cap delivery system provides a continuous supply of caps for high-speed production.
- Accurate Cap Positioning — The capping mechanism helps ensure proper alignment between the bottle neck and cap.
- Consistent Capping Torque — Controlled capping helps achieve reliable sealing while reducing the risk of loose or over-tightened caps.
- Leak-Resistant Bottle Sealing — Proper cap application helps prevent leakage and protects the carbonated beverage during storage and transportation.
