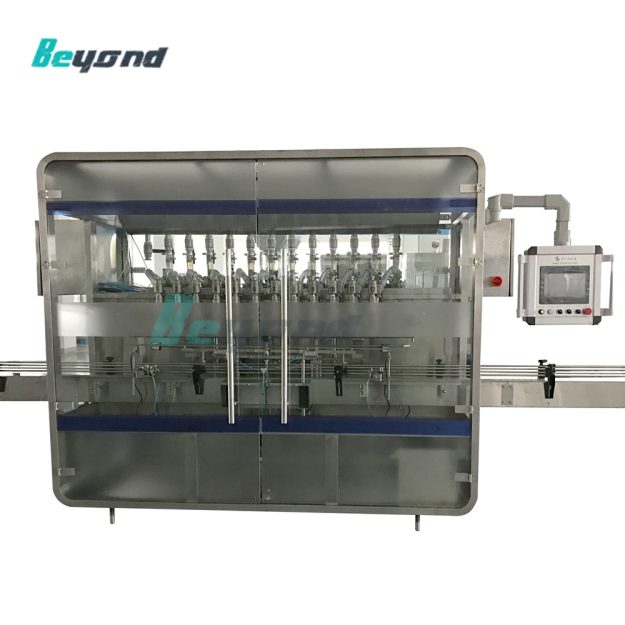

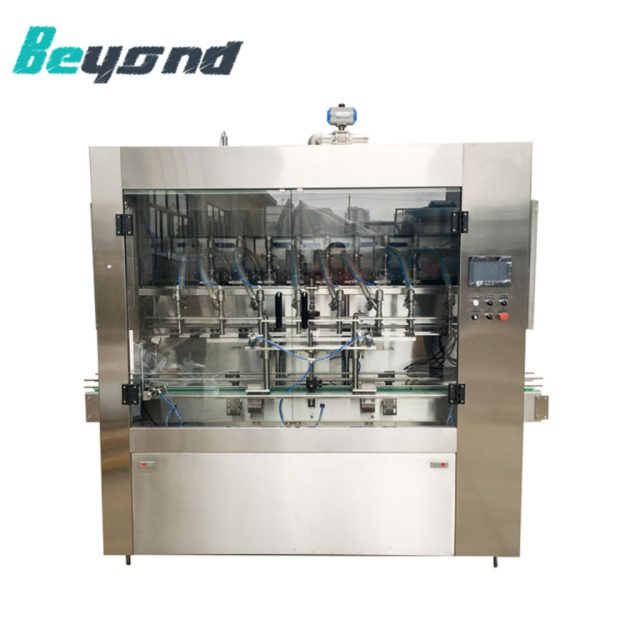

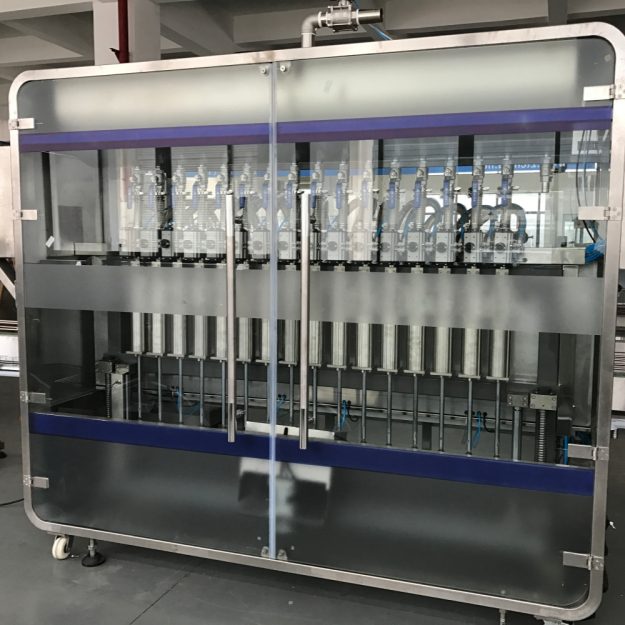

Automatic Detergent / Chemical Filling Machine

The CBP series weight/injection filler is a high-tech product designed and developed by our company. It mat suit for different viscosity of water agents, semi-fluid, and paste, it is widely used in the product filling of foodstuff, cosmetics, medicine, grease, daily chemical industry, detergent, pesticide, and chemical industry. Using the straight filling way may be used in the different vessels, needn’t add any parts.

Get A Quote


Filling material Bleach ,degreser,floor clean, detergent
Filling nozzle 8
Filling volume 100-500ml (bottle neck diameter should  be same )
Metering system Piston pump
Filling speed 1300 bottles/hour based on100ml
Filling precision ±1%
Air consumption 0.6~0.8MPa
Power 220/380v  50/60Hz
Power 1.Kw
Single machine noise ≤50dB
Weight 1000Kg
Machine size L2200*W900*H2000mm


YouTube video


Touch screen operation, humanization design, easy to operate .

The microcomputer can program PLC control,easy and convenient to change the type and parameter .

An accurate liquid level sensor, automatic feeding material, and ordinary pressure to fix flowway parameters help you to finish the accurate filling section .

The machine through a special design for the lifting institution, is easy and convenient to adjust and can pack multiple types of containers. It is different from the traditional lifting method, the traditional lifting makes the tube too bend leading to delayed filling time.

Photoelectric sensor and pneumatic door coordinate control, lack bottle, pour bottle all have automatic protection

Pneumatic control valve, effective safety, each flow way has independent adjustment and cleaning .

Freely setting filling volume through the touch screen.

Adopt a none-drip and none-silk filling nozzle institution design.

The main body material is SUS 304 and through the anode dispose aluminum alloy, contact part is SUS 316
