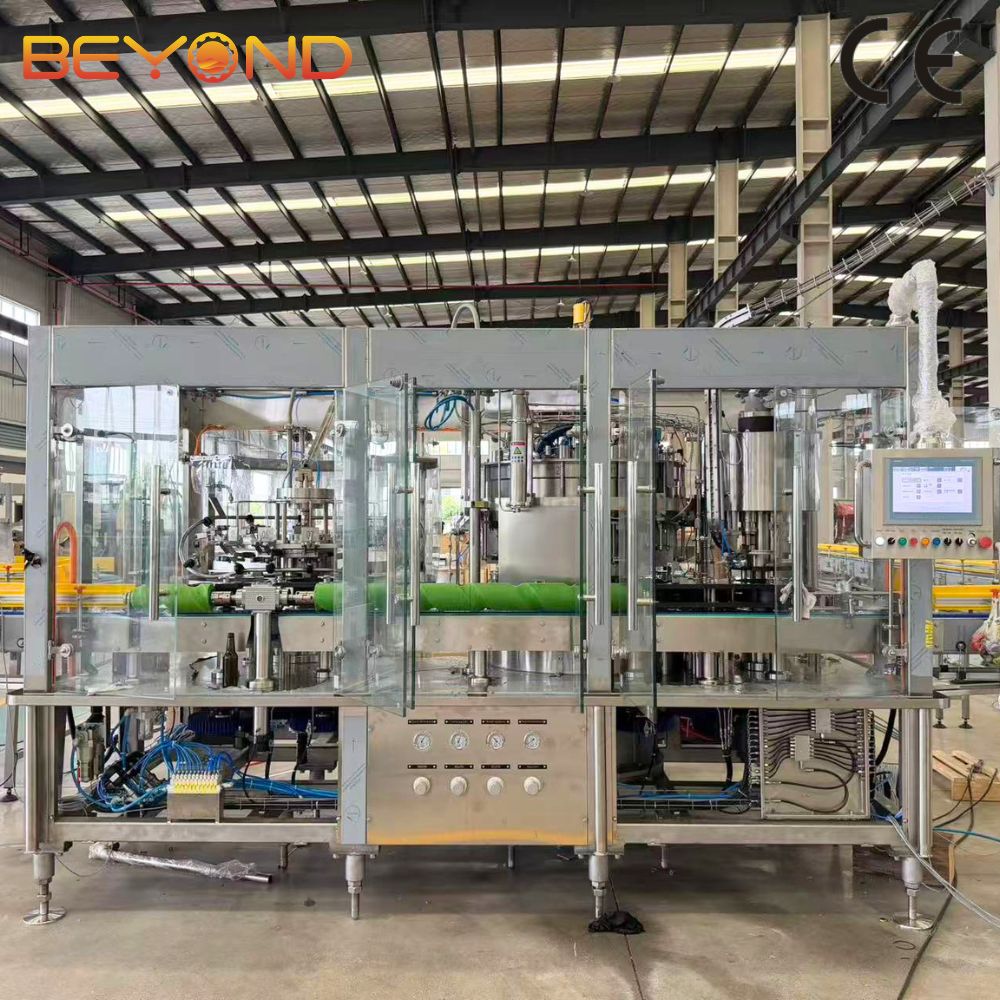

Automatic High Speed Beer Glass Bottle Filling Line for Brewery with Rinsing Filling and Capping System
High speed beer glass bottle filling machine is an automatic bottling system designed for breweries to efficiently rinse fill and seal glass beer bottles with high precision and stable production capacity It is widely used in craft beer and large scale beer production lines with capacity ranging from 2000 to 20000 bottles per hour ensuring hygienic filling low oxygen pickup and consistent filling level for commercial beer packaging
Specifications
Technical Parameters
| Item | Specification |
|---|---|
| Capacity | 2000–20000 BPH (customizable) |
| Bottle Type | Glass beer bottle |
| Bottle Volume | 200–1000 ml |
| Filling Type | Isobaric (counter pressure) |
| Function | Rinsing – Filling – Capping |
| Cap Type | Crown cap |
| Control System | PLC + Touch screen |
| Material | SUS304 stainless steel |
| Filling Accuracy | ±1% |
| Application | Beer brewery production line |
Video
Description

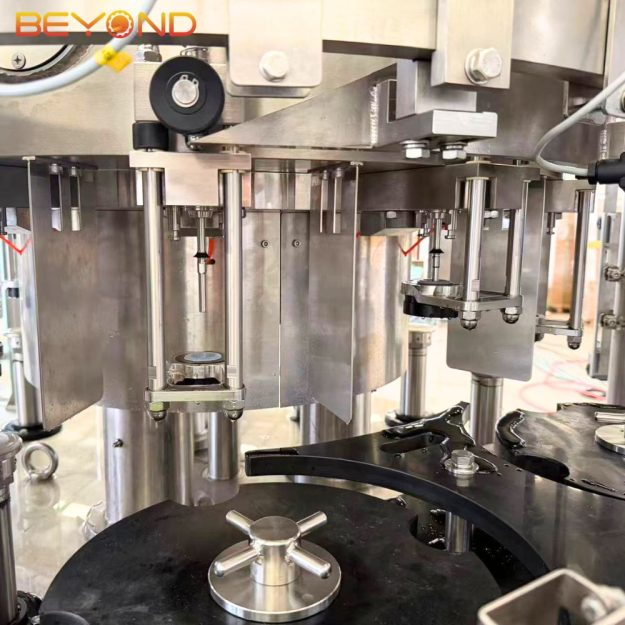

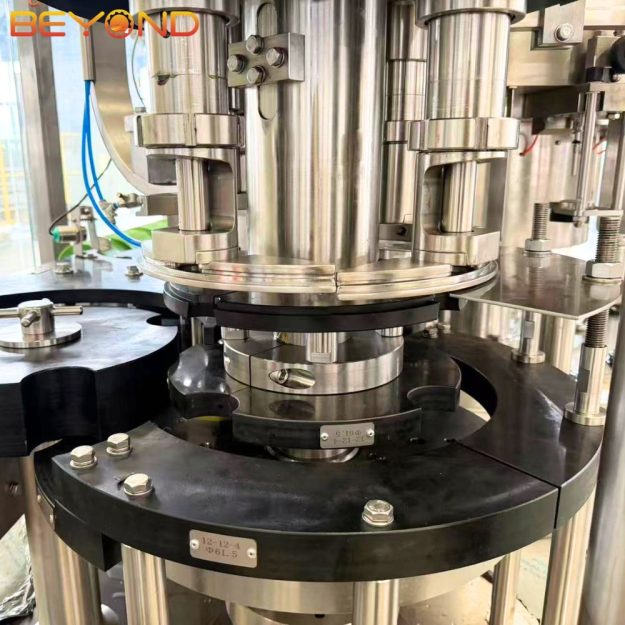

High speed beer glass bottle filling machine adopts advanced isobaric filling technology to ensure stable filling quality for carbonated beer without excessive foam generation The system is equipped with bottle rinsing filling and crown capping functions integrated into a rotary structure which significantly improves production efficiency and reduces manual operation requirements The filling valves are designed with precise pressure control to maintain CO₂ stability and minimize oxygen pickup during the filling process The machine body is made of high grade stainless steel ensuring durability corrosion resistance and compliance with food grade hygiene standards It is suitable for different glass bottle sizes and can be customized according to brewery production capacity layout and automation level In addition the machine is controlled by a PLC system with a touch screen interface allowing easy parameter adjustment real time monitoring and stable operation during long time production runs
