Automatic PET Bottle Blowing Machine

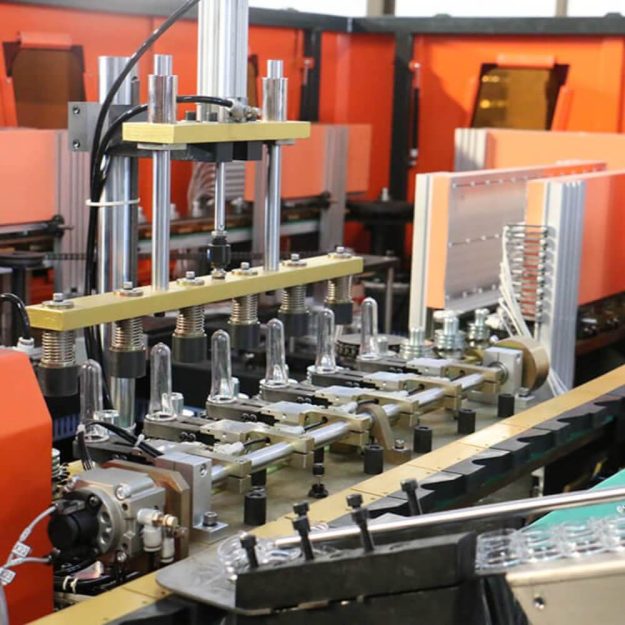

The servo high-speed bottle-blowing machine is used for PET water bottles, hot filling bottles, steam drink bottles, edible oil bottles, pesticide bottles, and so on. Servo high-speed bottle blowing machine adopts a servo control system, which has the characteristics of a stable and reliable structure, is fast and stable, easy to maintain, convenient and convenient for mold, and meets the need for continuous production online. Touch screen control and temperature adjustment make it easy to blow different bottle type temperature regulation. Its servo transmission system has high positioning accuracy, fast and stable speed, good reliability, no gas source saving energy, and low maintenance cost, and the tension rod is controlled by a servo motor. The servo high-speed bottle blowing machine has the advantage that can be segmented stretching, bottle embryo location, and first, to ensure that the stretch when the bottle embryo verticality, second drawing again, to ensure that every bottle embryo tensile uniformity and consistency. Fast stretch and accurate position.

Get A Quote


Cavity 2
Theory output 2000
Max.volume 2L
Bottle mouth maximum overall DIdiameter 80mm
Bottle biggest diameter 100mm
Bottle maximum height 330mm
Light tube quantity 32pcs
Light tube power 0.75KW
Maximum heating power 24KW
All electric machine installation 27KW
Actual consumption 19KW
Work pressure 7-9kg/cm2
Low-pressure gas consumption 1000L/min
Blow bottle pressure 25-35kg/cm2
Higher -pressure gas consumption 1500Ltr/min
Work pressure 5-6 kg/cm2
Temperature range 10℃
Consumption 5000kcal/hr
Forzen water flow 30L/min
Size of the machine 2.25×1.6×1.7
Weight of the machine 2.5ton

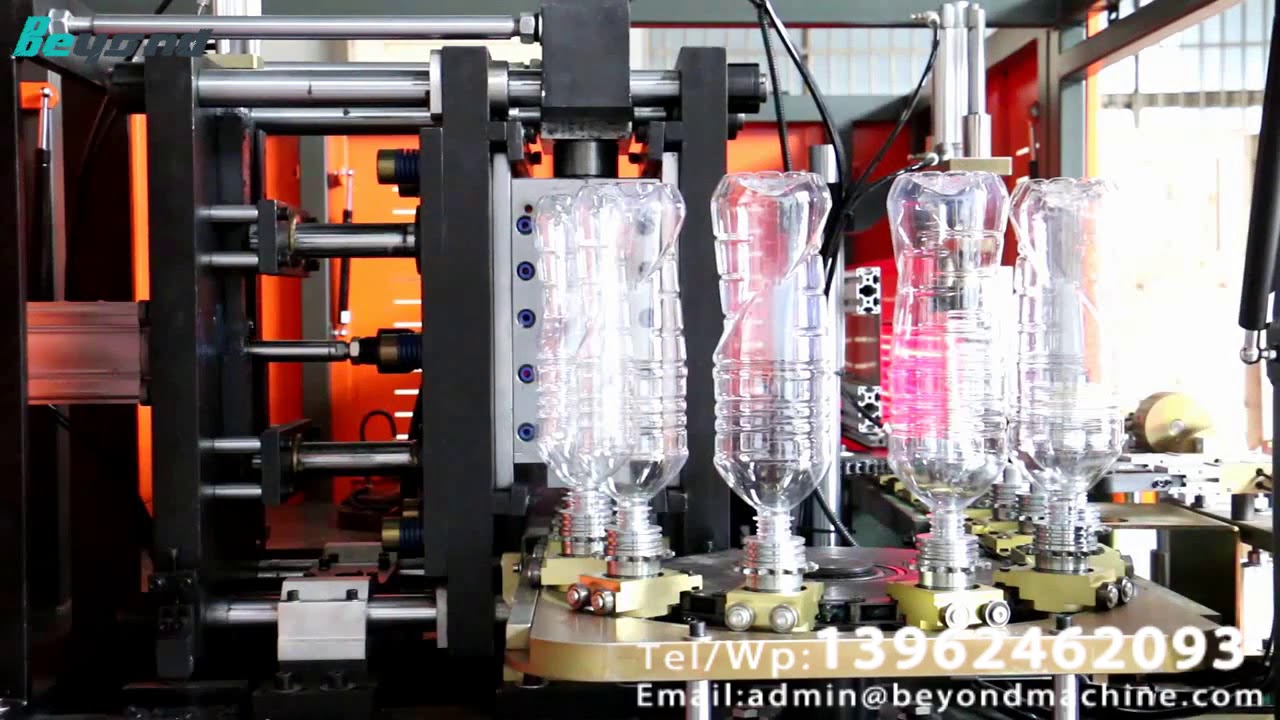

YouTube video


Characteristics of edible oil bottle straight line blowing machine:
1. Highly automated;

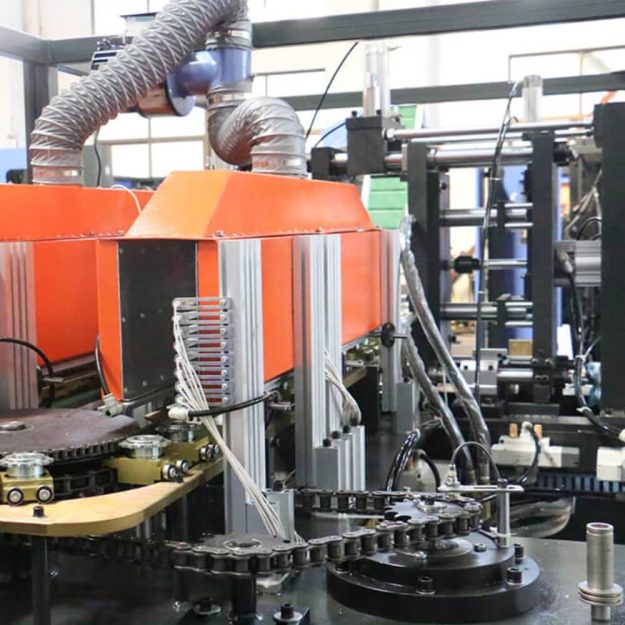

2. Stable cylinder heating system and efficient blowing system;
3. High efficiency and high production;
4. Environmental protection, no pollution;
5. Energy-efficient and energy-saving;
6. Edible oil bottle straight line bottle blowing machine maintenance convenience, safe operation, low noise.
