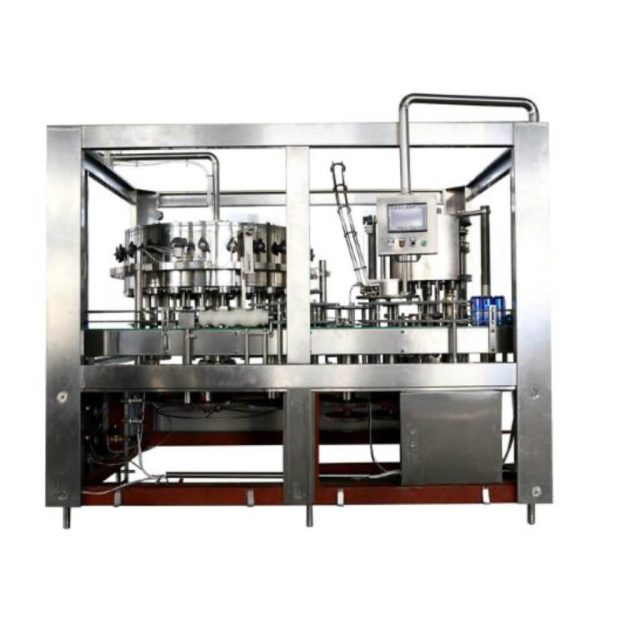

Beer Can Washing Filling Seaming Machine

The Beer Can Washing Filling Seaming Machine is a comprehensive solution for breweries, designed to handle washing, filling, and seaming in a seamless process. This automated machine saves time, reduces labor costs, and ensures each can is thoroughly washed, accurately filled, and securely sealed, helping breweries meet quality and sanitation standards effortlessly.

Get A Quote

Specifications

Model YDGF12-1 YDGF18-6 YDGF30-6
Heads of filling, sealing 12-1 18-6 30-6
Production capacity(can/hour) 1500-3000 5000-6000 8000-12000
Can type(mm) 200/202/206/209
Filling pressure(Mpa) isostatic pressure
Max.filling temp(℃) 0-5
Total Power(KW) 2.2 4 7
Overall dimension(L×W×H)(mm) 2200×1600×2200 2500×2000×2350 2600×2100×2350
Weight(kg) 2650 4200 5500

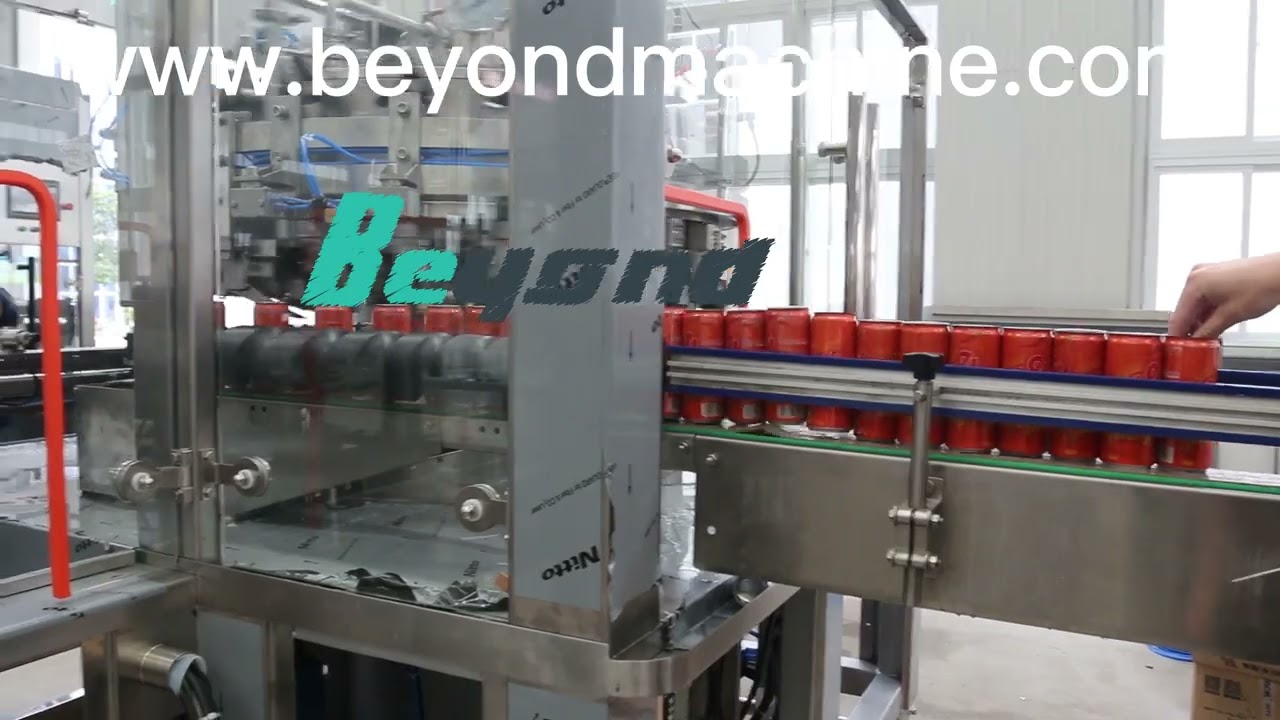

Video

YouTube video

Description

Filling Part

The filling system adopts the isobaric filling principle. The liquid material tank is from stainless steel, inside or outside mirror polished. It is equipped with a level controller. These valves are suitable for filling the beer.

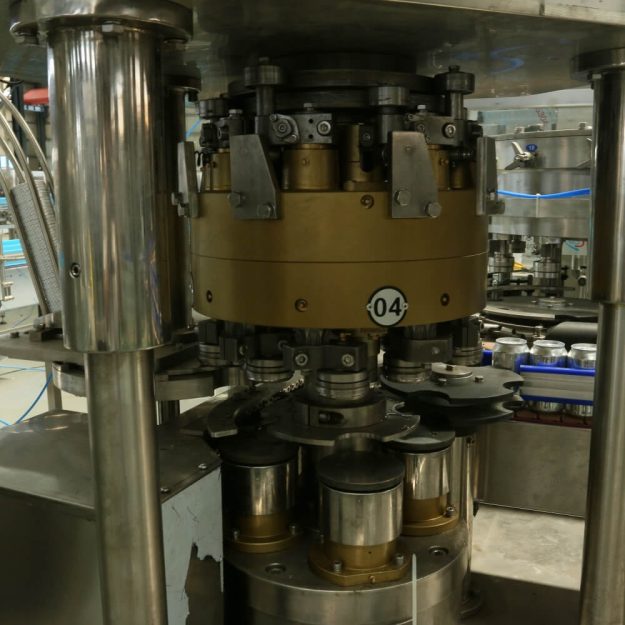

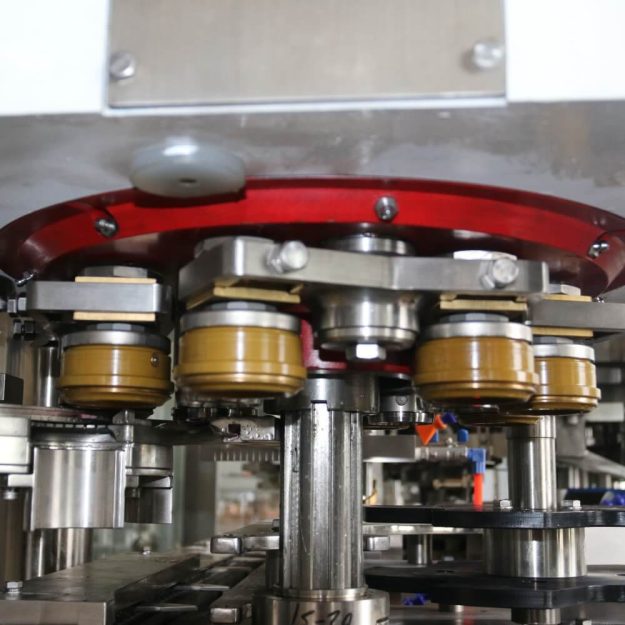

Seaming Part

1. There is a buffering system on the machine so that there is no can be broken in the process;
2. The can mouth is positioned automatically and the sealing mould shares good power distribution guaranteeing better sealing quality;
3. The sealing head with enough pressure so that there is no leaking after sealing;
4. Stable performance, low noise, less energy consumption, and high working efficiency as well;
