CGF606015 Automatic Water Filling Machine | 24,000 BPH Line

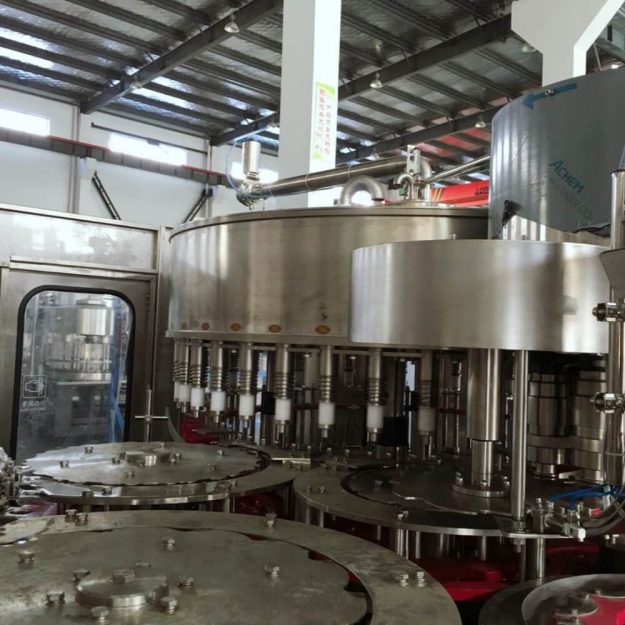

The CGF606015 is a high-speed 3-in-1 water filling machine featuring 60 rinsing, 60 filling, and 15 capping heads. Designed for industrial-scale PET bottling lines, it delivers up to 24,000 bottles per hour with precise filling, hygienic operation, and robust stainless-steel construction. Ideal for mineral and purified water factories seeking efficiency and reliability.
Specifications
| Parameter | Specification |
|---|---|
| Capacity | 15,000–24,000 BPH (500ml PET bottles) |
| Bottle Size | 200ml – 2000ml |
| Rinsing Heads | 60 |
| Filling Heads | 60 |
| Capping Heads | 15 |
| Filling Method | Gravity or light-pressure filling |
| Construction | SUS304/316L stainless steel |
| Cap Type | Plastic screw caps (flat/sports cap) |
| Control System | PLC + Touchscreen (Siemens/Mitsubishi) |
| Air & Power Supply | 0.7MPa, 8–12kW |
Video
Description

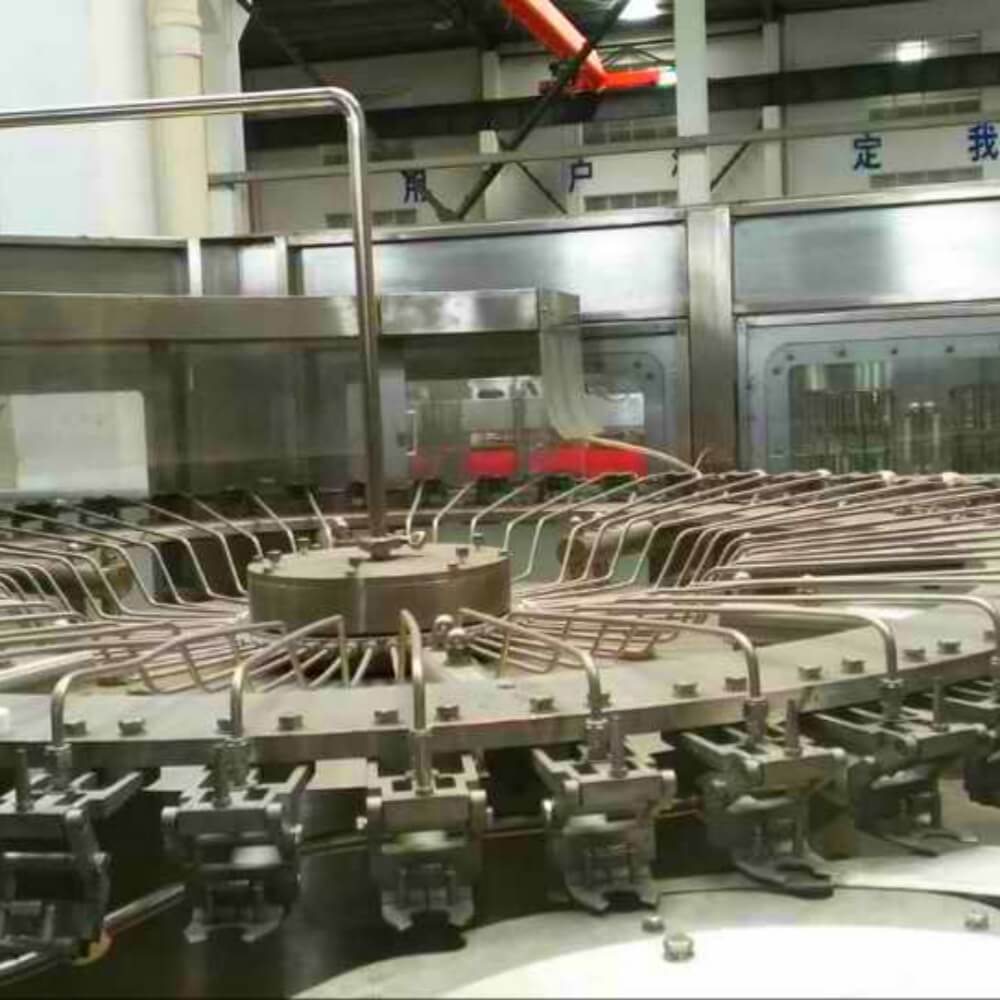

Rinsing Section (60 Rinsing Heads)
Equipped with 60 rotary rinsing grippers, this station ensures continuous high-speed cleaning for up to 24,000 BPH.
-
Each gripper grips the neck and inverts the bottle for a 180° rinse
-
Internal spray nozzles ensure full contact inside the bottle
-
Water recovery system reduces consumption

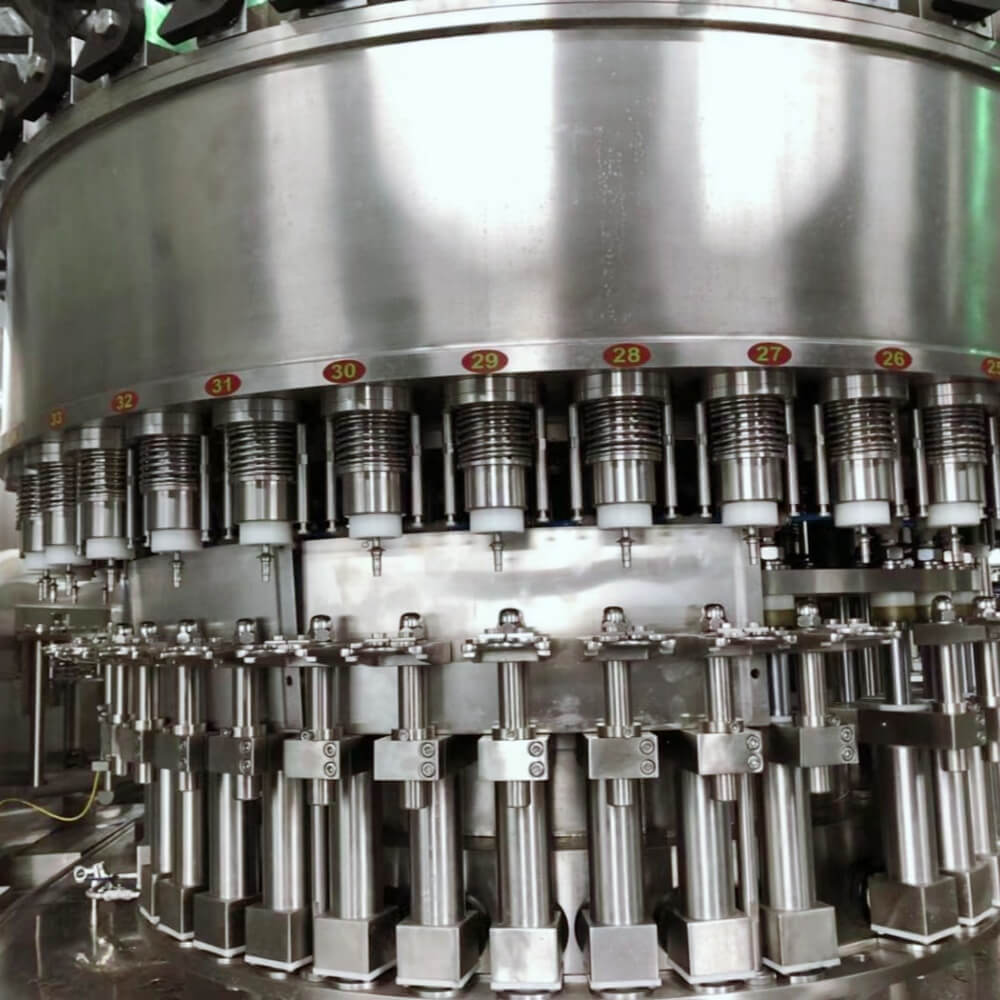

Filling Section (60 Filling Valves)
The 60 rotary filling valves are engineered for precision, speed, and clean operation.
-
Gravity/micro-pressure filling for different water types
-
Bottle mouth-centered nozzles prevent splashing
-
Anti-drip and foam control design
-
Integrated CIP spray balls

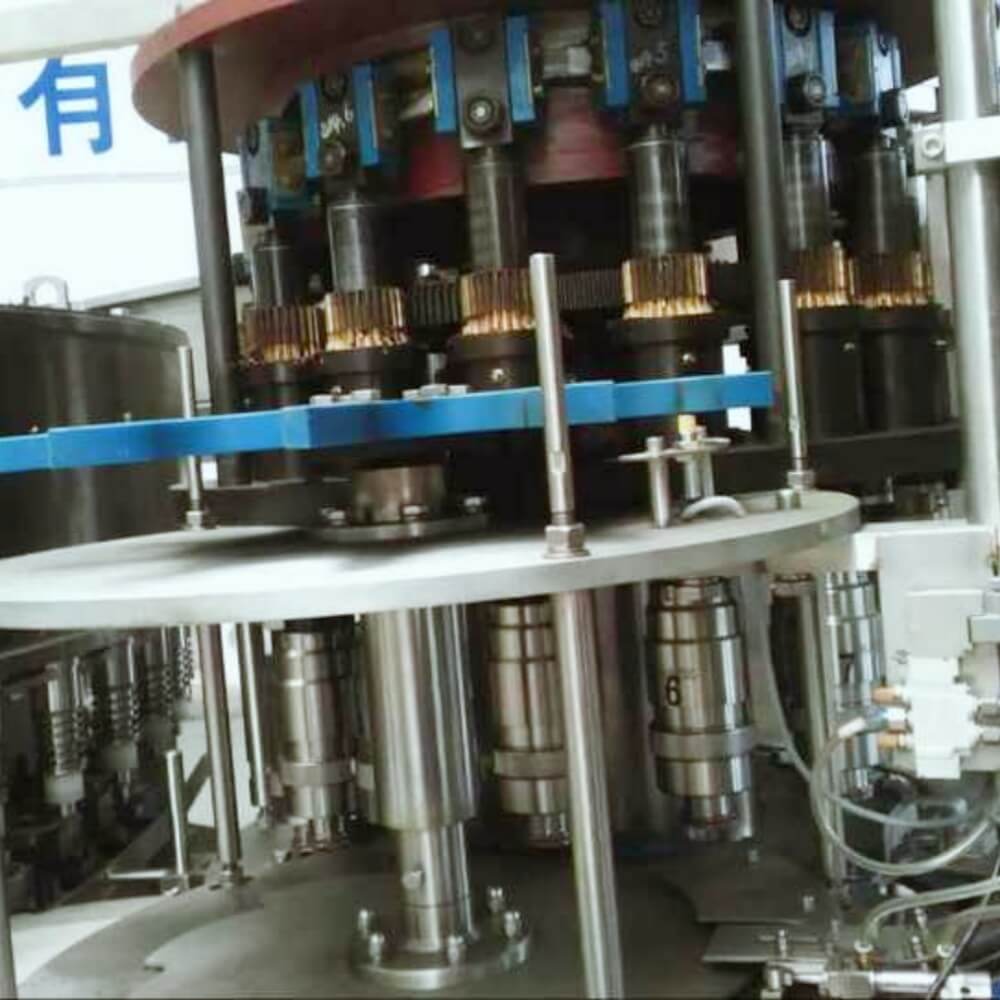

Capping Section (15 Capping Heads)
With 15 magnetic capping heads, this unit provides stable, high-speed capping for both flat and sports caps.
-
Independent torque adjustment on each head
-
No-bottle-no-cap, mis-cap auto rejection
-
Stainless steel cap chute with anti-jam sensor
