High-Speed Water Filling Line CGF50-50-12 for PET Bottles
The CGF50-50-12 is a fully automatic 3-in-1 water filling line designed for high-speed bottling of purified and mineral water. It integrates rinsing, filling, and capping processes, achieving up to 22,000 bottles per hour (500ml) with precision and hygiene. Suitable for PET bottles ranging from 200ml to 2500ml, this machine is ideal for large-scale beverage production facilities.
Specifications
| Parameter | CGF50-50-12 | CGF60-60-15 | CGF72-72-18 |
|---|---|---|---|
| Rinsing Heads | 50 | 60 | 72 |
| Filling Heads | 50 | 60 | 72 |
| Capping Heads | 12 | 15 | 18 |
| Production Capacity (500ml) | 18,000–20,000 BPH | 24,000–26,000 BPH | 30,000–32,000 BPH |
| Applicable Bottle Volume | 200ml–2L PET bottles | 200ml–2L PET bottles | 200ml–2L PET bottles |
| Air Pressure Required | 0.6–0.8 MPa | 0.6–0.8 MPa | 0.6–0.8 MPa |
| Air Consumption | 0.5 m³/min | 0.7 m³/min | 0.9 m³/min |
| Water Consumption (rinsing) | 1.5 m³/h | 2.0 m³/h | 2.5 m³/h |
| Main Motor Power | 10 kW | 13 kW | 18 kW |
| Machine Dimensions (approx.) | 4500×3800×2200 mm | 5200×4200×2300 mm | 6200×4500×2500 mm |
| Machine Weight (approx.) | 8,000 kg | 10,000 kg | 13,000 kg |

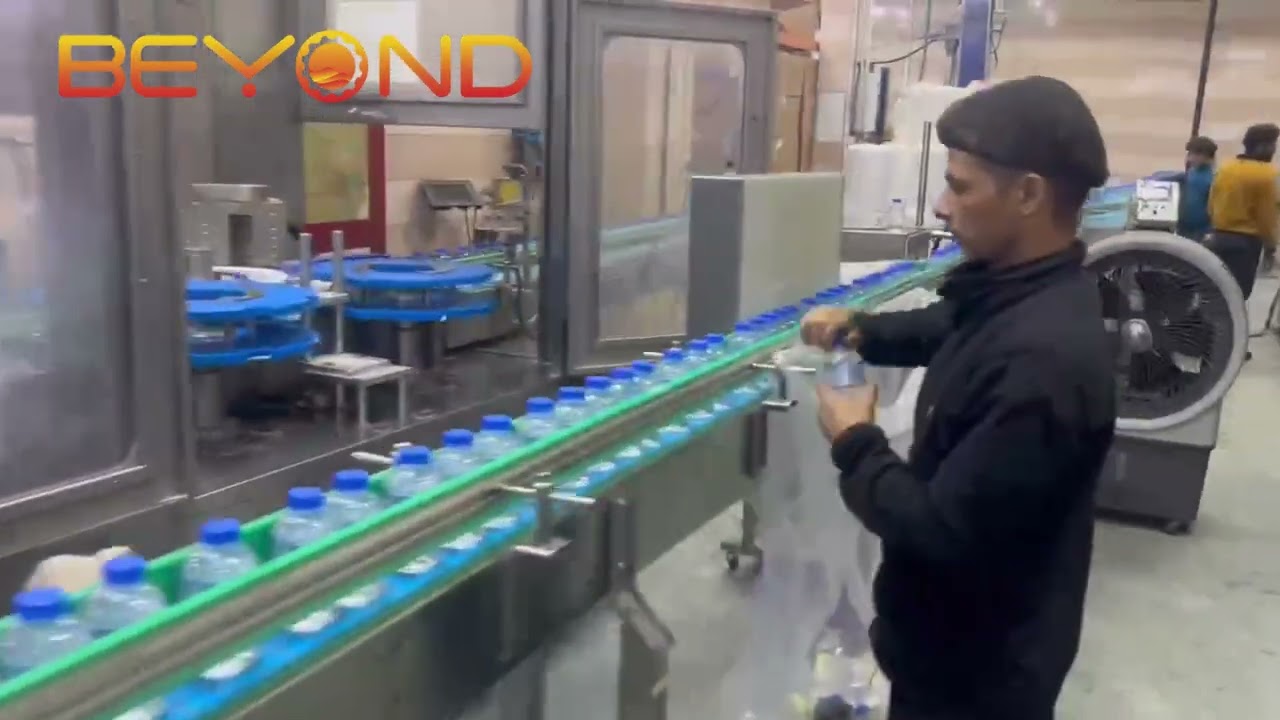

Video
Description
1. Bottle Rinsing Unit
-
Function: Automatically inverts and rinses bottles using sterilized water or air to remove contaminants.
-
Structure: Rotary system with 50 grippers; SUS304 stainless steel construction.
-
Highlight: No-bottle-no-rinse mechanism ensures resource saving.
2. Filling System
-
Function: Precisely fills water into PET bottles using gravity or slight-pressure filling technology.
-
Structure: 50 high-precision filling valves with smooth and fast flow control.
-
Highlight: Automatic liquid level detection; anti-drip and anti-foam design ensures hygienic operation.
3. Capping Machine
-
Function: Automatically places and tightens plastic screw caps onto filled bottles.
-
Structure: 12 capping heads with magnetic torque control for consistent sealing force.
-
Highlight: No-bottle-no-cap, no-cap-no-operation safety logic.
