Small Scale Water Bottling Machine | CGF8-8-3 Filling Line
A small scale water bottling machine is a compact and automated system designed for rinsing, filling, and capping bottled water, ideal for small production capacities ranging from 1,000 to 3,000 bottles per hour. Models like the CGF8-8-3 are perfect for startups, rural water projects, and niche brands needing high hygiene and efficiency in a limited space.
Specifications
| Model | CGF883 | CGF14125 | CGF18186 | CGF24248 | CGF323210 | CGF404010 |
| Heads of washing, filling , sealing | 8-8-3 | 14-12-5 | 18-18-6 | 24-24-8 | 32-32-10 | 40-40-10 |
| Production capacity (bottle/hour) | 1000-2000 | 3000-5000 | 5000-7000 | 8000-12000 | 12000-15000 | 16000-20000 |
| Suitable bottle diameter(mm) | φ=50-100 H=170 330-1500ml | |||||
| Spraying pressure | 2~3 | |||||
| Motor power | Main motor 4.1kw |
Main motor 4.23kw |
Main motor5.03kw | Main motor 6.57kw | Main motor7.5kw | Main motor 8.63kw |
| Power of outer vacuum pump | 0.7 | 0.7 | 1.1 | 1.5 | 2.2 | 2.2 |
| overall dimension (LxWxH) | 2100x1400x2500 | 2100x1400x2500 | 2460x1720x2650 | 3100x2100x2650 | 3500x2500x2650 | 4600x1800x2650 |
| Weight | 2300 | 2500 | 3500 | 4200 | 5500 | 6800 |
Video
Description
1. Bottle Rinsing Station (8 Heads)
Function: Inverts and sprays sterilized water inside bottles to remove dust and contaminants.
Highlights:
-
304 Stainless Steel Nozzles with anti-drip design
-
Gripper arms customized for PET bottle necks (no need to change for size)
-
Recycled rinse water return line to save water
Gravity Filling Station (8 Heads)
Function: Uses gravity to fill still water into bottles with high accuracy and hygiene.
Highlights:
-
Open-type gravity filler (non-pressurized), ideal for purified/spring water
-
Level-controlled valve system ensures uniform fill height
-
Internal CIP (Clean-in-Place) spray balls for automated cleaning

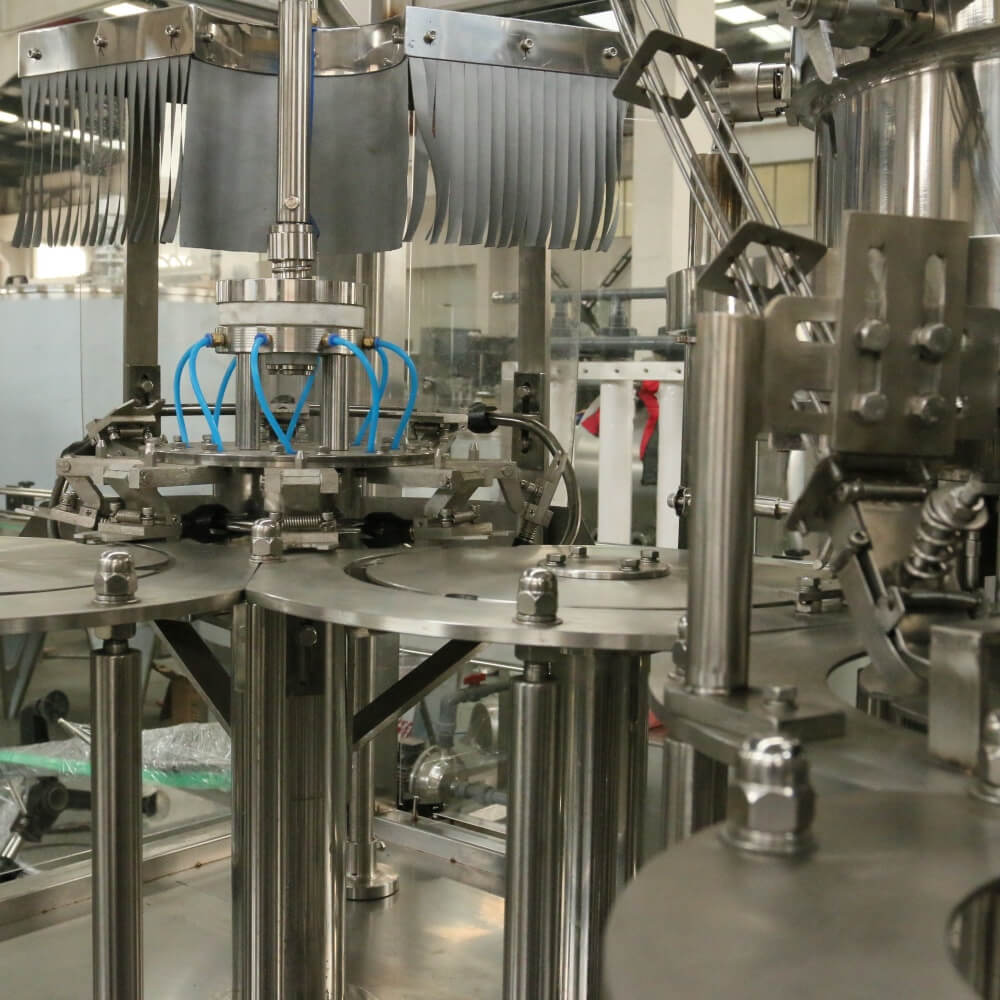

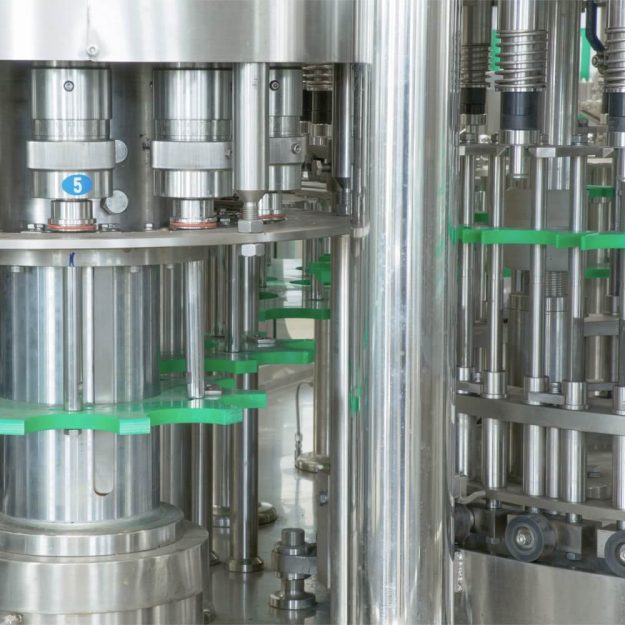

3. Capping Station (3 Heads)
Function: Automatically places and tightens caps using magnetic torque heads.
Highlights:
-
Magnetic clutch torque system for adjustable tightness
-
No bottle–no cap mechanism prevents misplacement
-
Cap hopper + sorter + chute integrated for auto feeding
